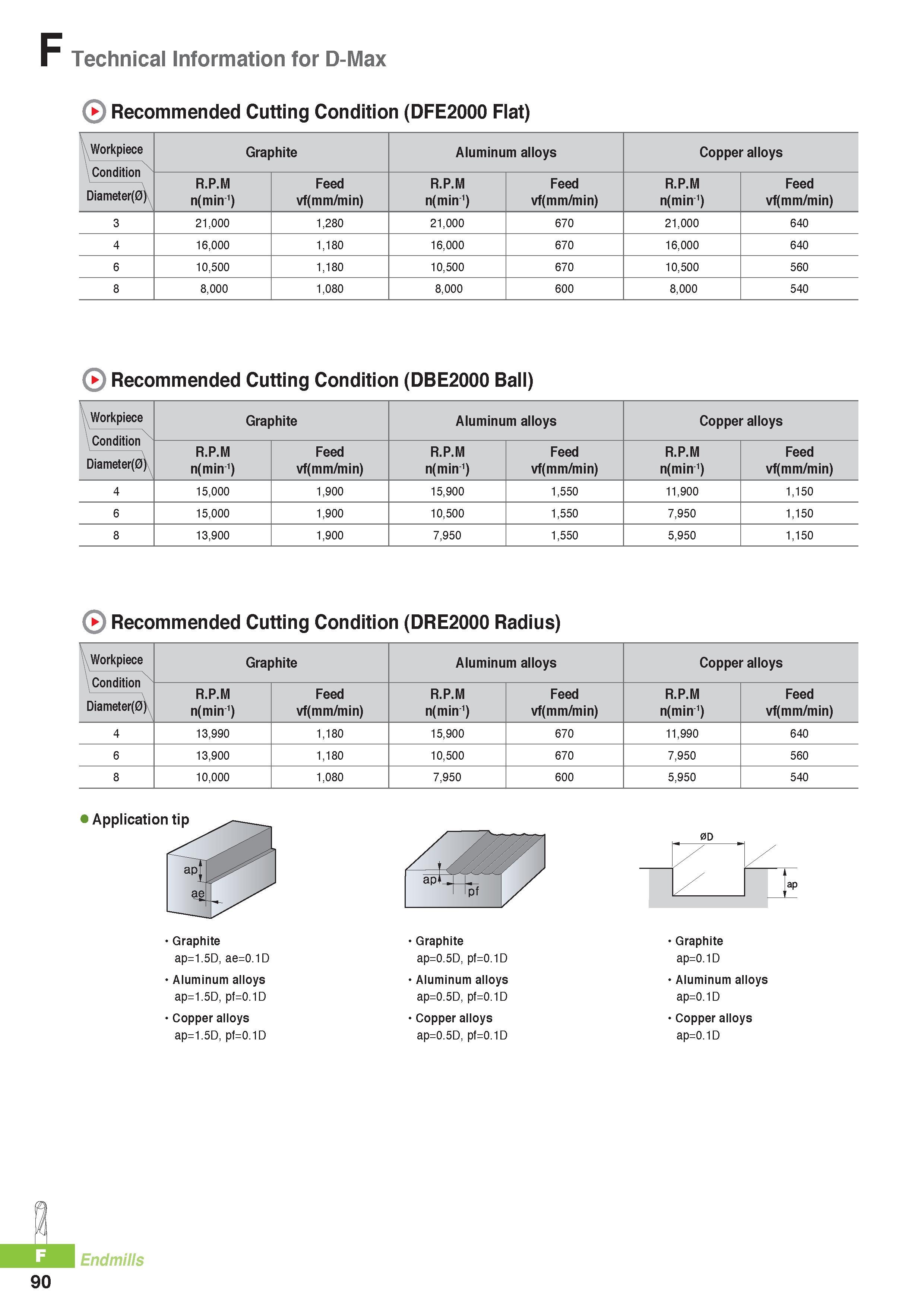

F Technical Information for D-Max Recommended Cutting Condition (DFE2000 Flat) Workpiece Condition Diameter(0) Graphite Aluminum alloys Copper alloys R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 3 21,000 1,280 21,000 670 21,000 640 4 16,000 1,180 16,000 670 16,000 640 6 10,500 1,180 10,500 670 10,500 560 8 8,000 1,080 8,000 600 8,000 540 Recommended Cutting Condition (DBE2000 Ball) Workpiece Condition Diameter(0) Graphite Aluminum alloys Copper alloys R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 4 15,000 1,900 15,900 1,550 11,900 1,150 6 15,000 1,900 10,500 1,550 7,950 1,150 8 13,900 1,900 7,950 1,550 5,950 1,150 Recommended Cutting Condition (DRE2000 Radius) Workpiece Condition Diameter(0) Graphite Aluminum alloys Copper alloys R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 4 13,990 1,180 15,900 670 11,990 640 6 13,900 1,180 10,500 670 7,950 560 8 10,000 1,080 7,950 600 5,950 540 Graphite ap=1.5D, ae=0.1D Aluminum alloys ap=1.5D, pf=0.1D Copper alloys ap=1.5D, pf=0.1D 0D Jap Graphite ap=0.5D, pf=0.1D Aluminum alloys ap=0.5D, pf=0.1D Copper alloys ap=0.5D, pf=0.1D Graphite ap=0.1D Aluminum alloys ap=0.1D Copper alloys ap=0.1D Endmills 90
