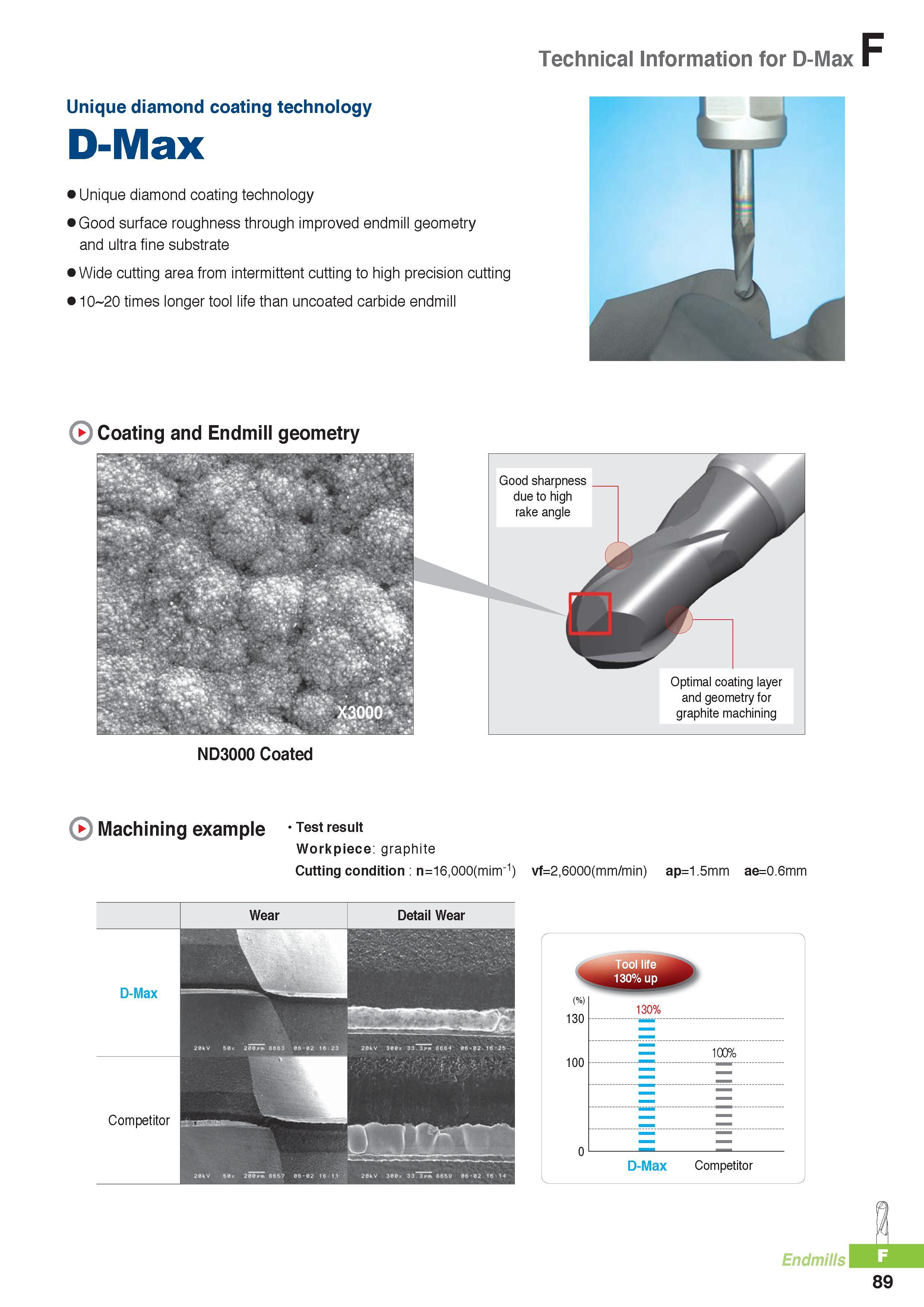

Technical Information for D-Max Unique diamond coating technology D-Max Unique diamond coating technology Good surface roughness through improved endmill geometry and ultra fine substrate Wide cutting area from intermittent cutting to high precision cutting 10 20 times longer tool life than uncoated carbide endmill Coating and Endmill geometry - - -¥v - - r - - - .WjT s - r ‘V v '-.v - '-V V v '-j - r. X3000 ND3000 Coated Optimal coating layer and geometry for graphite machining 0 Machining example Test resu t Workpiece: graphite Cutting condition n=16,000(mim-1) vf=2,6000(mm/min) ap=1.5mm ae=0.6mm Endmill 89
