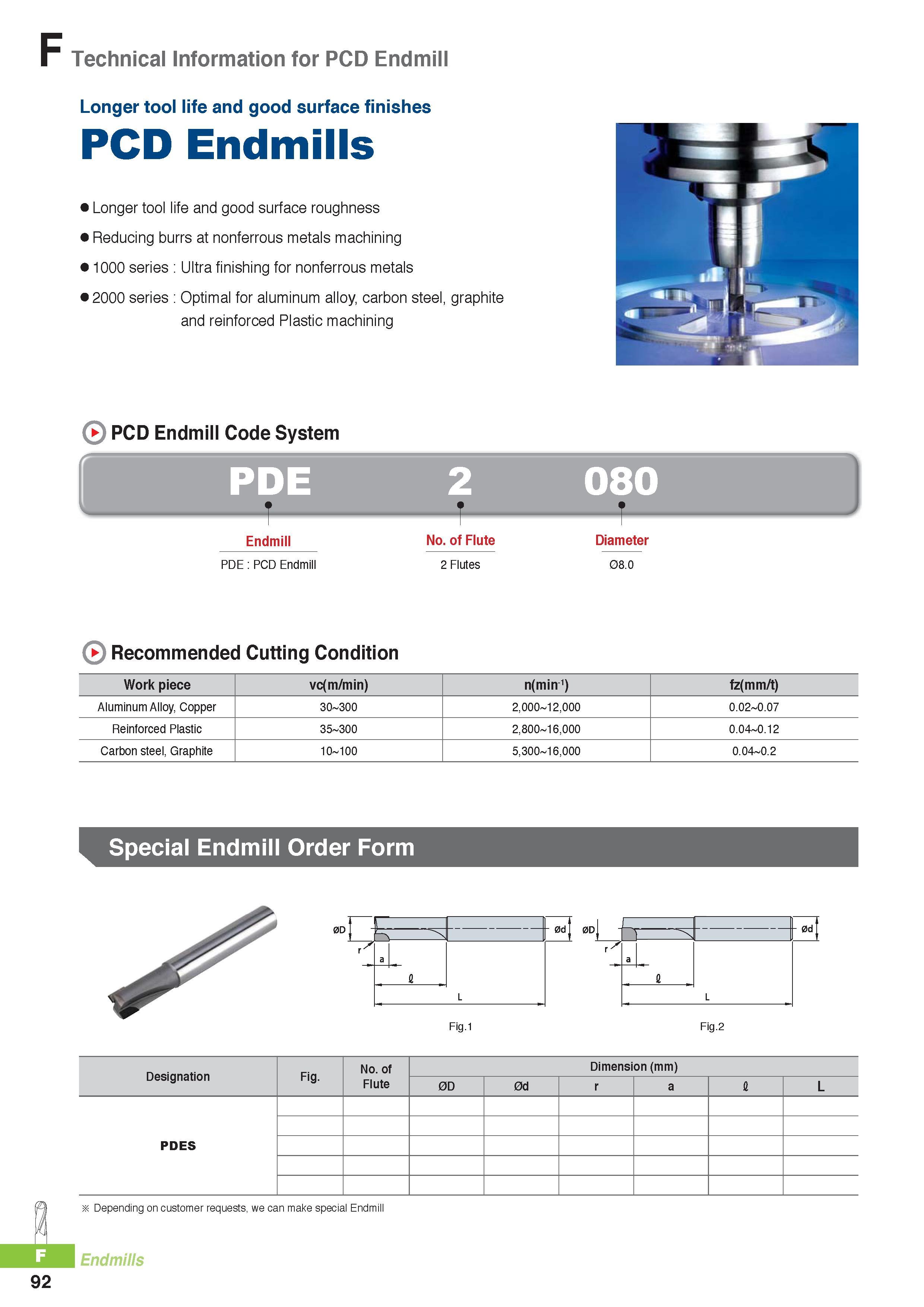

Technical Information for PCD Endmill Longer tool life and good surface finishes PCD Endmills Longer tool life and good surface roughness Reducing burrs at nonferrous metals machining 1000 series Ultra finishing for nonferrous metals 2000 series Optimal for aluminum alloy, carbon steel, graphite and reinforced Plastic machining PCD Endmill Code System Endmill PDE PCD Endmill No. of Flute 2 Flutes Diameter 08.0 Recommended Cutting Condition Work piece vc(m/min) n(min-1) fz(mm/t) Aluminum Alloy, Copper 30 300 2,000 12,000 0.02 0.07 Reinforced Plastic 35 300 2,800 16,000 0.04 0.12 Carbon steel, Graphite 10 100 5,300 16,000 0.04 0.2 Special Endmill Order Form 0D Fig.1 0d I 0Dl > 0d Fig.2 Designation Fig. No. of Flute Dimension (mm) 0D 0d r a I L PDES J. x Depending on customer requests, we can make special Endmill Endmills 92 2
