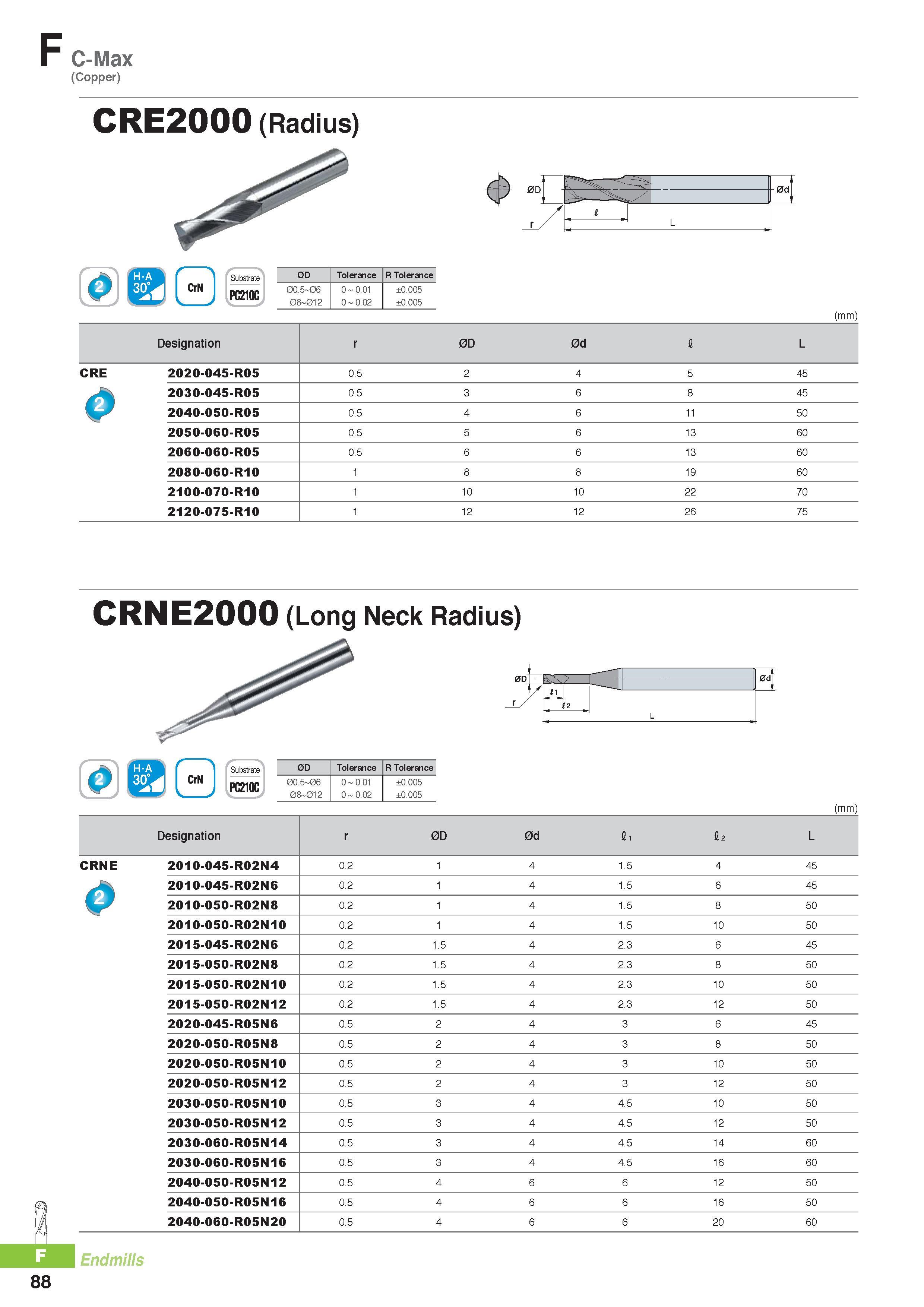

811 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.F88

Каталог KORLOY 2016 Инструмент и оснастка Стр. F88 0811 ENG Lab2u

F C-Max (Copper) CRE2000 (Radius) i L CrN PC210C 0D Tolerance R Tolerance 00.5 06 08 012 0 0.01 0 0.02 ±0.005 ±0.005 0d (mm) Designation 0D 0d I L CRE 2020-045-R05 0.5 2 4 5 45 2030-045-R05 0.5 3 6 8 45 Q 2040-050-R05 0.5 4 6 11 50 2050-060-R05 0.5 5 6 13 60 2060-060-R05 0.5 6 6 13 60 2080-060-R10 8 8 19 60 2100-070-R10 10 10 22 70 2120-075-R10 12 12 26 75 CRNE2000 (Long Neck Radius) 0 CrN > Substrate OD Tolerance R Tolerance PC210C 00.5 06 0 0.01 ±0.005 J 08 012 0 0.02 ±0.005 (mm) Designation 0D 0d fli 0.2 L CRNE 2010-045-R02N4 0.2 1 4 1.5 4 45 A 2010-045-R02N6 0.2 1 4 1.5 6 45 Q 2010-050-R02N8 0.2 1 4 1.5 8 50 2010-050-R02N10 0.2 1 4 1.5 10 50 2015-045-R02N6 0.2 1.5 4 2.3 6 45 2015-050-R02N8 0.2 1.5 4 2.3 8 50 2015-050-R02N10 0.2 1.5 4 2.3 10 50 2015-050-R02N12 0.2 1.5 4 2.3 12 50 2020-045-R05N6 0.5 2 4 3 6 45 2020-050-R05N8 0.5 2 4 3 8 50 2020-050-R05N10 0.5 2 4 3 10 50 2020-050-R05N12 0.5 2 4 3 12 50 2030-050-R05N10 0.5 3 4 4.5 10 50 2030-050-R05N12 0.5 3 4 4.5 12 50 2030-060-R05N14 0.5 3 4 4.5 14 60 2030-060-R05N16 0.5 3 4 4.5 16 60 2040-050-R05N12 0.5 4 6 6 12 50 2040-050-R05N16 0.5 4 6 6 16 50 2040-060-R05N20 0.5 4 6 6 20 60 ± Endmills 88
