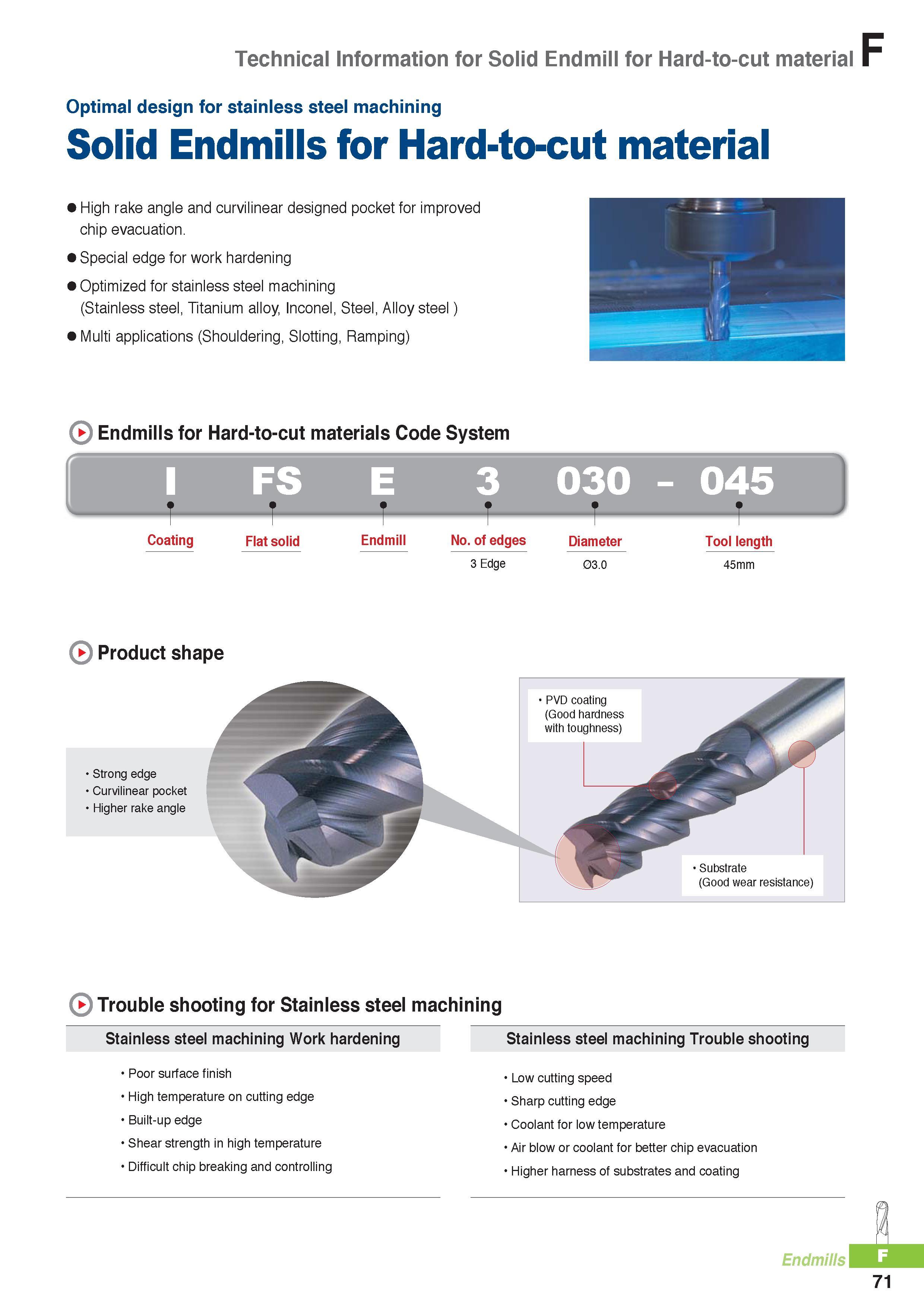

Technical Information for Solid Endmill for Hard-to-cut material optimal design for stainless steel machining Solid Endmills for Hard-to-cut material High rake angle and curvilinear designed pocket for improved chip evacuation. Special edge for work hardening Optimized for stainless steel machining (Stainless steel, Titanium alloy, Inconel, Steel, Alloy steel ) Multi applications (Shouldering, Slotting, Ramping) Endmills for Hard-to-cut materials Code System I FS 030 - 045 Coating Flat solid Endmill No. of edges 3 Edge Diameter 03.0 Tool length 45mm Product shape Strong edge Curvilinear pocket Higher rake angle Substrate (Good wear resistance) Trouble shooting for Stainless steel machining Stainless steel machining Work hardening Poor surface finish High temperature on cutting edge Built-up edge Shear strength in high temperature Difficult chip breaking and controlling Stainless steel machining Trouble shooting Low cutting speed Sharp cutting edge Coolant for low temperature Air blow or coolant for better chip evacuation Higher harness of substrates and coating Endmill 71
