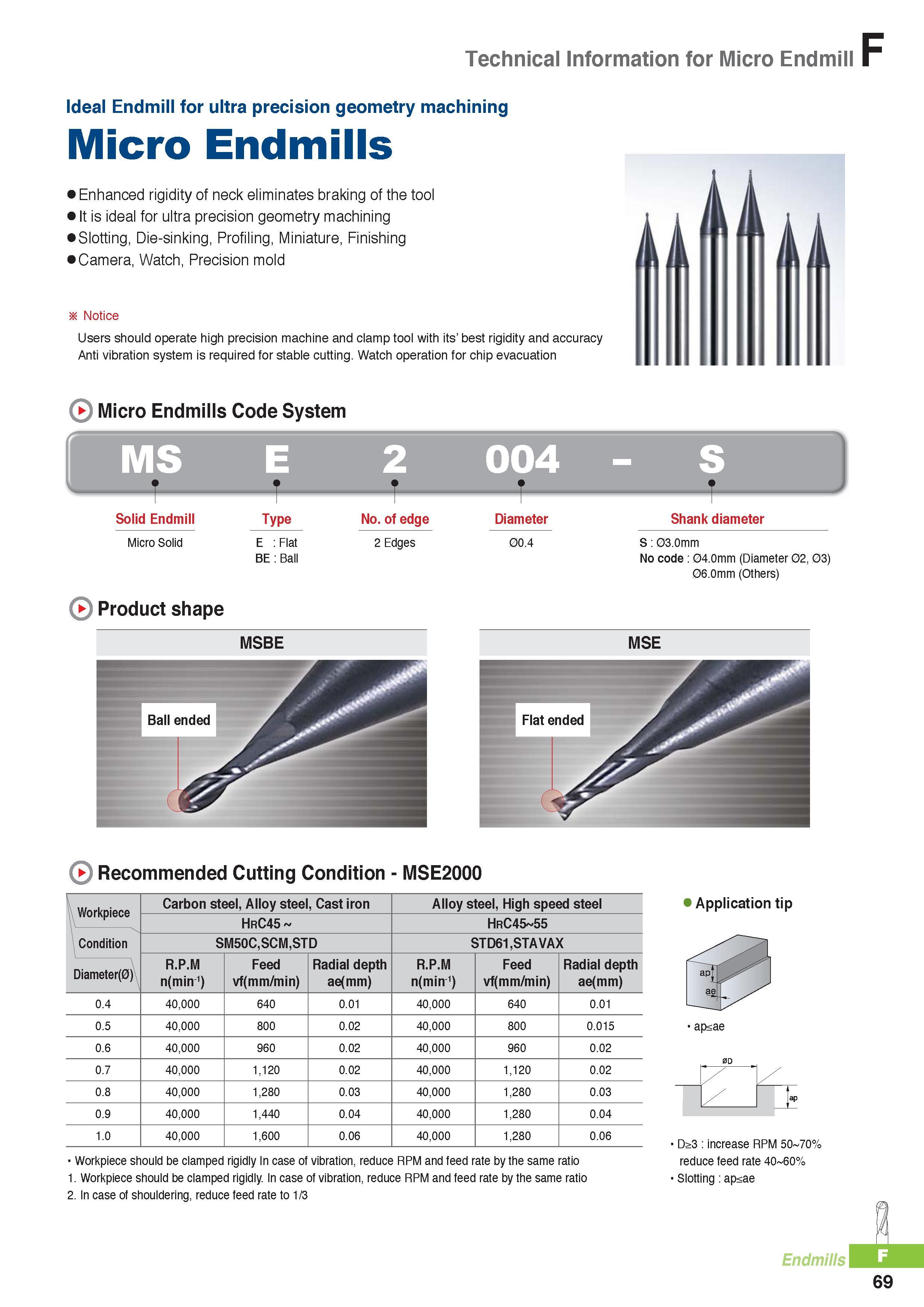

Technical Information for Micro Endmill Ideal Endmill for ultra precision geometry machining Micro Endmills Enhanced rigidity of neck eliminates braking of the tool It is ideal for ultra precision geometry machining Slotting, Die-sinking, Profiling, Miniature, Finishing Camera, Watch, Precision mold Notice Users should operate high precision machine and clamp tool with its’ best rigidity and accuracy Anti vibration system is required for stable cutting. Watch operation for chip evacuation Micro Endmills Code System Solid Endmill Micro Solid Type E Flat BE Ball No. of edge 2 Edges Diameter 00.4 Shank diameter S 03.0mm No code 04.0mm (Diameter 02, 03) 06.0mm (Others) Product shape Recommended Cutting Condition - MSE2000 Workpiece Carbon steel, Alloy steel, Cast iron Alloy steel, High speed steel HrC45 HrC45 55 Condition SM50C,SCM,STD STD61,STAVAX Diameter(0) R.P.M Feed Radial depth R.P.M Feed Radial depth n(min-1) vf(mm/min) ae(mm) n(min-1) vf(mm/min) ae(mm) 0.4 40,000 640 0.01 40,000 640 0.01 0.5 40,000 800 0.02 40,000 800 0.015 0.6 40,000 960 0.02 40,000 960 0.02 0.7 40,000 1,120 0.02 40,000 1,120 0.02 0.8 40,000 1,280 0.03 40,000 1,280 0.03 0.9 40,000 1,440 0.04 40,000 1,280 0.04 1.0 40,000 1,600 0.06 40,000 1,280 0.06 Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate bythe same ratio 1. Workpiece should be clamped rigidly. In case of vibration, reduce RPM and feed rate by the same ratio 2. In case of shouldering, reduce feed rate to 1/3 Application tip apsae D>3 increase RPM 50 70% reduce feed rate 40 60% Slotting: ap
