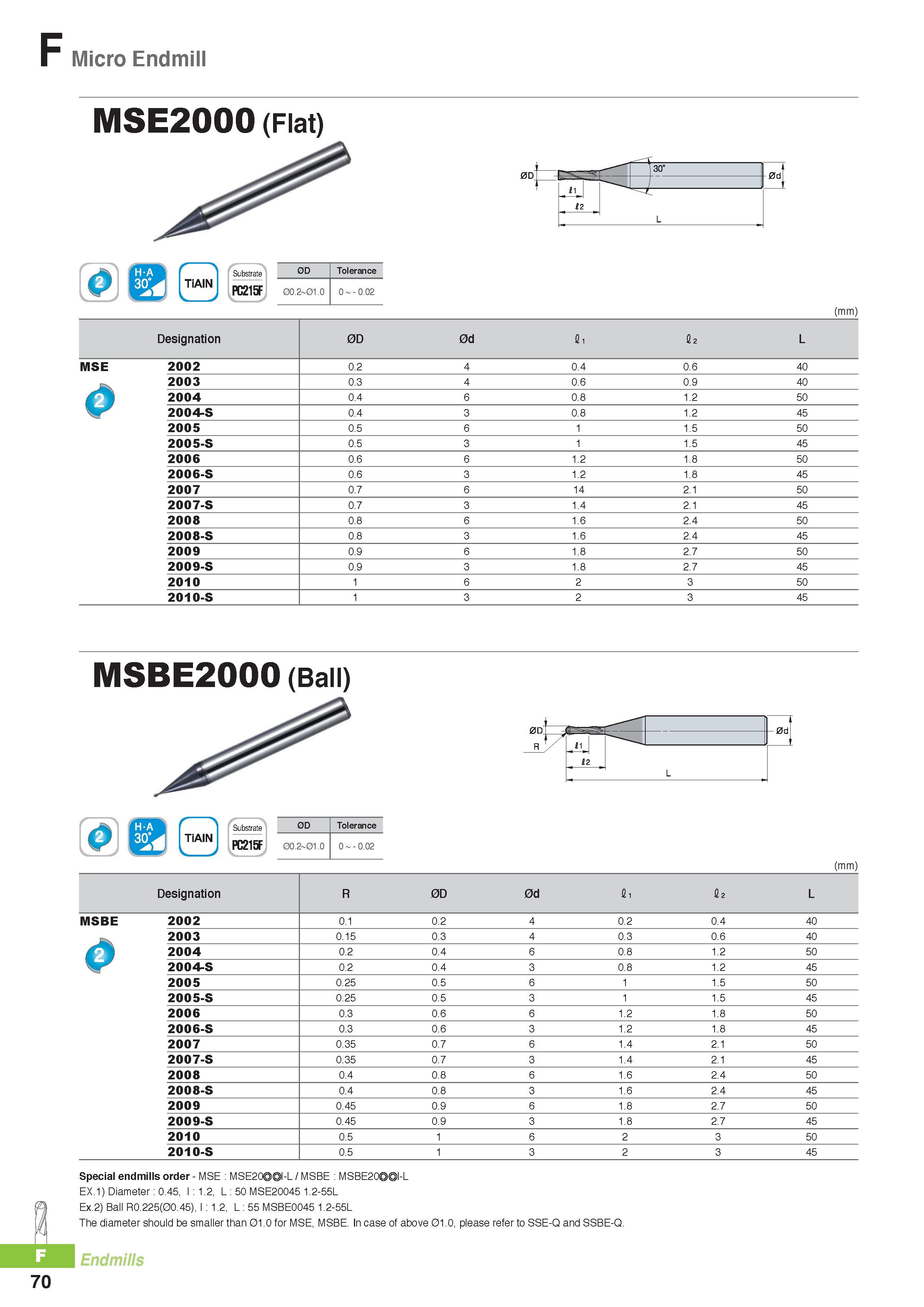

Micro Endmill MSE2000 (Flat) 0DTZH 30° L TiAIN Substrate 0D Tolerance PTCM5F 00.2 01.0 0 - 0.02 (mm) Designation 0D 0d fli G2 L MSE 2002 0.2 4 0.4 0.6 40 2003 0.3 4 0.6 0.9 40 0 2004 0.4 6 0.8 1.2 50 2004-S 0.4 3 0.8 1.2 45 2005 0.5 6 1.5 50 2005-S 0.5 3 1.5 45 2006 0.6 6 1.2 1.8 50 2006-S 0.6 3 1.2 1.8 45 2007 0.7 6 14 2.1 50 2007-S 0.7 3 1.4 2.1 45 2008 0.8 6 1.6 2.4 50 2008-S 0.8 3 1.6 2.4 45 2009 0.9 6 1.8 2.7 50 2009-S 0.9 3 1.8 2.7 45 2010 6 2 3 50 2010-S 3 2 3 45 MSBE2000 (Ball) r > Substrate OD Tolerance TiAIN V J PC215F 00.2 01.0 0 - 0.02 (mm) Designation R 0D 0d fli I2 L MSBE 2002 0.1 0.2 4 0.2 0.4 40 2003 0.15 0.3 4 0.3 0.6 40 2004 0.2 0.4 6 0.8 1.2 50 %r 2004-S 0.2 0.4 3 0.8 1.2 45 2005 0.25 0.5 6 1.5 50 2005-S 0.25 0.5 3 1.5 45 2006 0.3 0.6 6 1.2 1.8 50 2006-S 0.3 0.6 3 1.2 1.8 45 2007 0.35 0.7 6 1.4 2.1 50 2007-S 0.35 0.7 3 1.4 2.1 45 2008 0.4 0.8 6 1.6 2.4 50 2008-S 0.4 0.8 3 1.6 2.4 45 2009 0.45 0.9 6 1.8 2.7 50 2009-S 0.45 0.9 3 1.8 2.7 45 2010 0.5 1 6 2 3 50 2010-S 0.5 1 3 2 3 45 ± Special endmills order - MSE MSE2 l-L / MSBE EX.1) Diameter 0.45, l 1.2, L 50 MSE20045 1.2-55L Ex.2) Ball R0.225(00.45), l 1.2, L 55 MSBE0045 1.2-55L The diameter should be smaller than 01.0 for MSE, MSBE. In case of above 01.0, please refer to Endmills E-Q and SSBE-Q. 70
