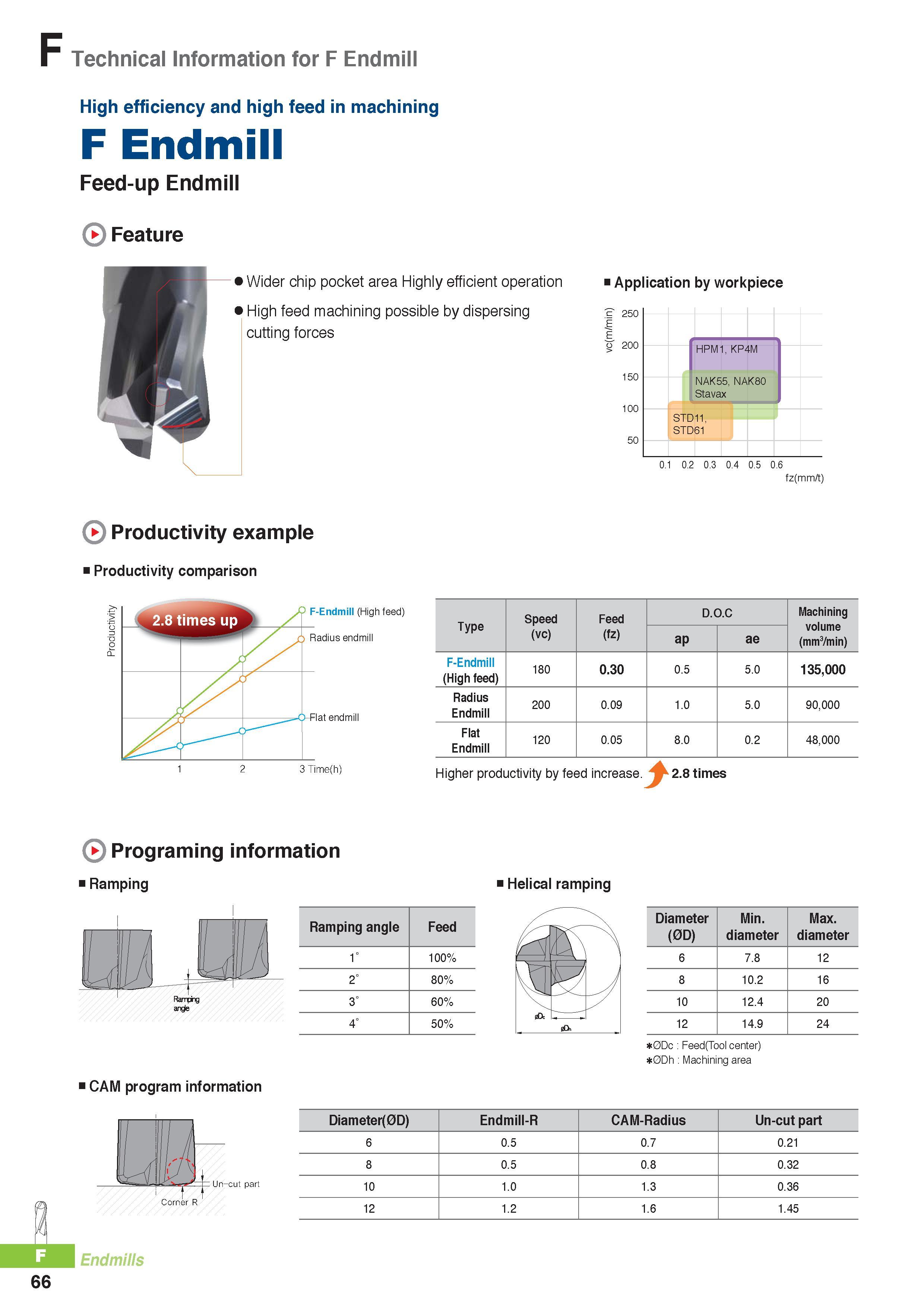

Technical Information for F Endmill High efficiency and high feed in machining F Endmill Feed-up Endmill Feature Wider chip pocket area Highly efficient operation High feed machining possible by dispersing cutting forces Application by workpiece g 250 E E If 200 150 50 0.1 0.2 0.3 0.4 0.5 0.6 fz(mm/t) Productivity example Productivity comparison Type Speed Feed d.o.c Machining volume (mm3/min) (vc) (fz) ap ae F-Endmill (High feed) 180 0.30 0.5 5.0 135,000 Radius Endmill 200 0.09 1.0 5.0 90,000 Flat Endmill 120 0.05 8.0 0.2 48,000 Higher productivity by feed increase. 2.8 times Programing information Ramping CAM program information ± oa Un-cut part Endmills Helical ramping Ramping angle Feed />" Diameter (0D) Min. diameter Max. diameter 1° 100% 6 7.8 12 2° 80% 8 10.2 16 3° 60% 10 12.4 20 4° 50% Ot Oh 12 14.9 24 0Dc Feed(Tool center) 0Dh Machining area Diameter(0D) Endmill-R CAM-Radius Un-cut part 6 0.5 0.7 0.21 8 0.5 0.8 0.32 10 1.0 1.3 0.36 12 1.2 1.6 1.45 66
