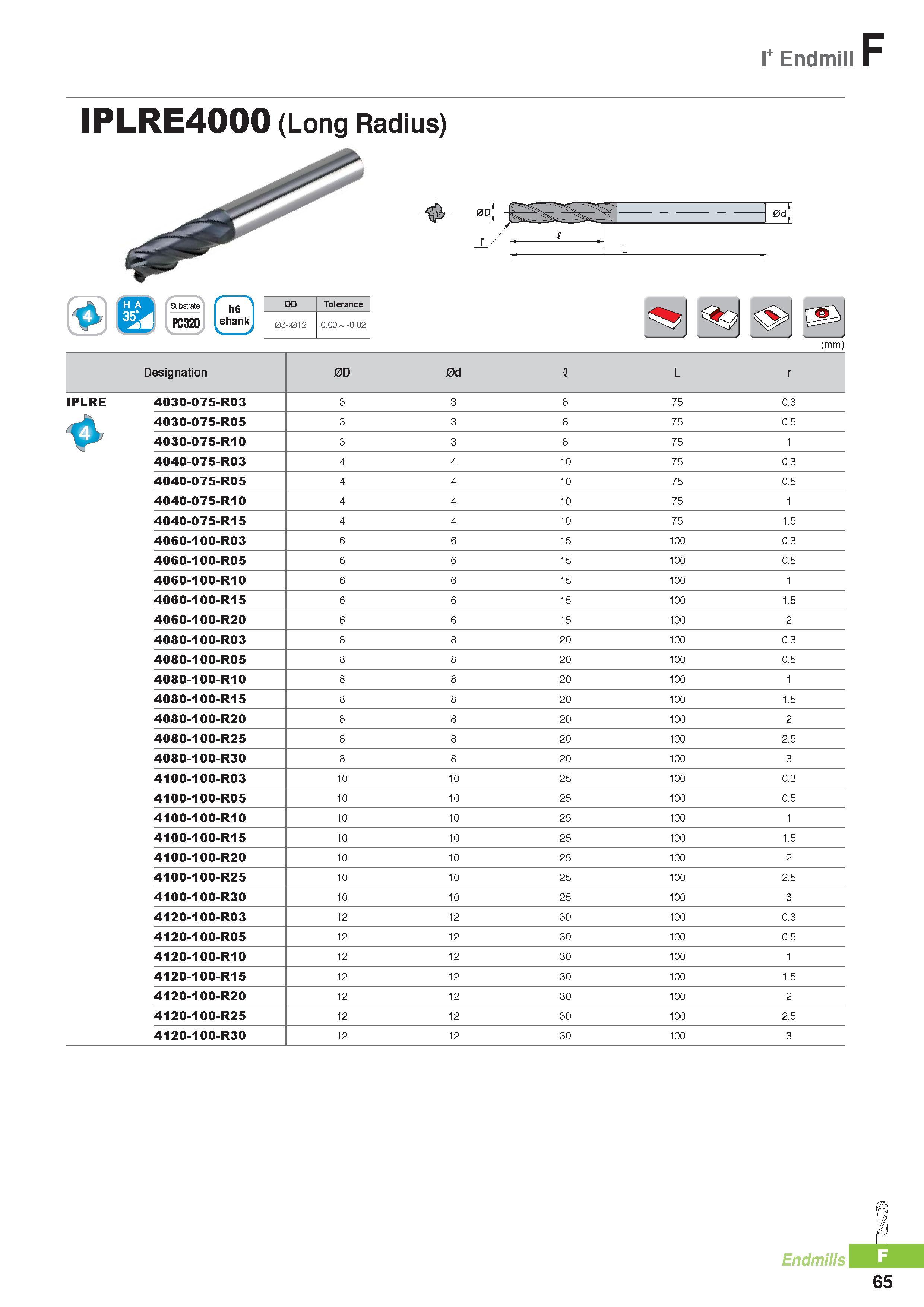

I+ Endmill F IPLRE4000 (Long Radius) (mm) Designation 0D 0d I L r IPLRE 4030-075-R03 3 3 8 75 0.3 4030-075-R05 3 3 8 75 0.5 4030-075-R10 3 3 8 75 1 4040-075-R03 4 4 10 75 0.3 4040-075-R05 4 4 10 75 0.5 4040-075-R10 4 4 10 75 1 4040-075-R15 4 4 10 75 1.5 4060-100-R03 6 6 15 100 0.3 4060-100-R05 6 6 15 100 0.5 4060-100-R10 6 6 15 100 1 4060-100-R15 6 6 15 100 1.5 4060-100-R20 6 6 15 100 2 4080-100-R03 8 8 20 100 0.3 4080-100-R05 8 8 20 100 0.5 4080-100-R10 8 8 20 100 1 4080-100-R15 8 8 20 100 1.5 4080-100-R20 8 8 20 100 2 4080-100-R25 8 8 20 100 2.5 4080-100-R30 8 8 20 100 3 4100-100-R03 10 10 25 100 0.3 4100-100-R05 10 10 25 100 0.5 4100-100-R10 10 10 25 100 1 4100-100-R15 10 10 25 100 1.5 4100-100-R20 10 10 25 100 2 4100-100-R25 10 10 25 100 2.5 4100-100-R30 10 10 25 100 3 4120-100-R03 12 12 30 100 0.3 4120-100-R05 12 12 30 100 0.5 4120-100-R10 12 12 30 100 1 4120-100-R15 12 12 30 100 1.5 4120-100-R20 12 12 30 100 2 4120-100-R25 12 12 30 100 2.5 4120-100-R30 12 12 30 100 3 Endmill 65
