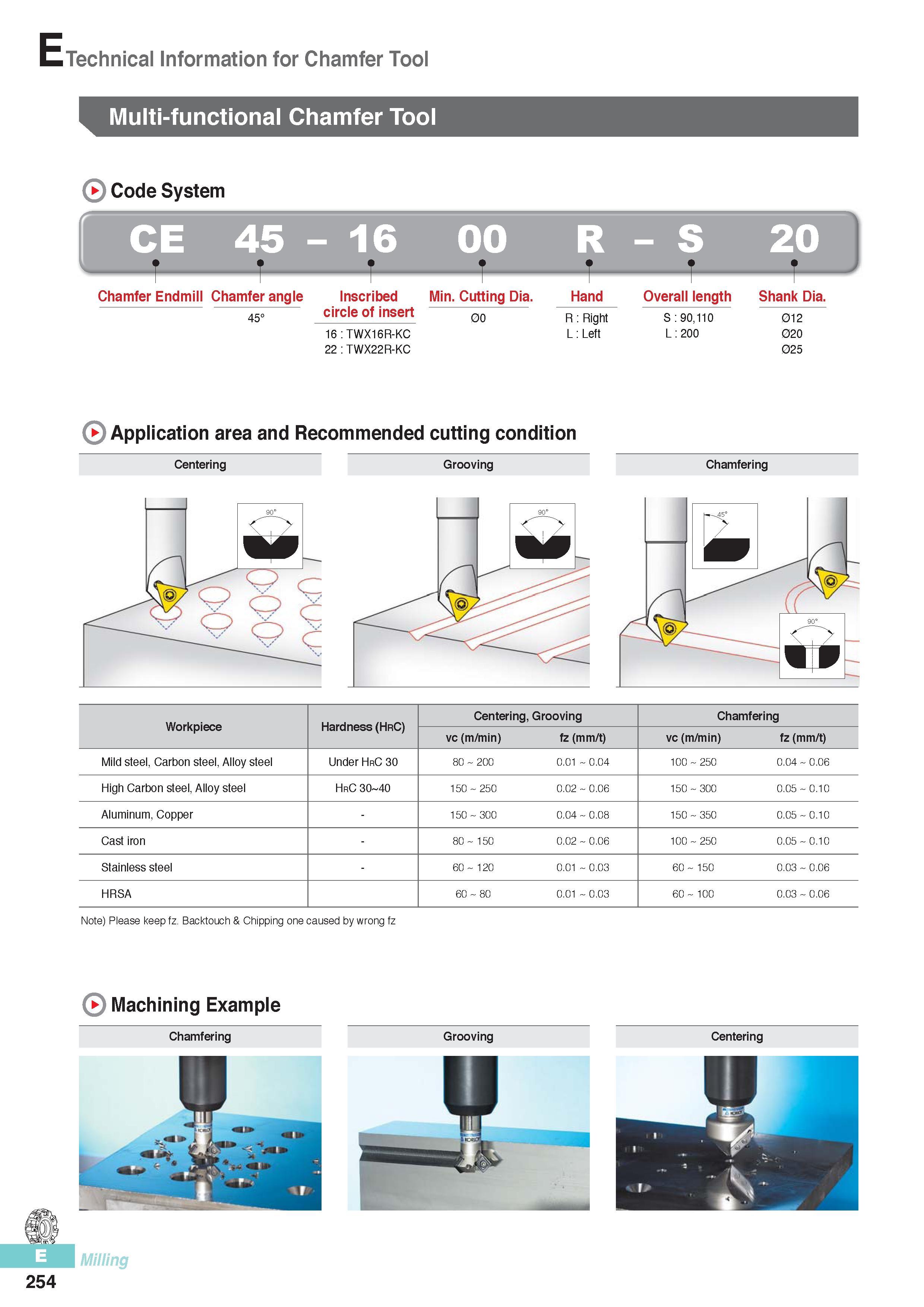

Technical Information for Chamfer Tool Multi-functional Chamfer Tool Code System CE 45 - 16 - S 20 Chamfer Endmill Chamfer angle Inscribed Min. Cutting Dia. circle of insert 45° 16 TWX16R-KC 22 TWX22R-KC Hand R Right L Left S: 90,110 L:200 Overall length Shank Dia. 012 020 025 Application area and Recommended cutting condition Centering Grooving Chamfering Workpiece Hardness (HrC) Centering, Grooving Chamfering vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) Mild steel, Carbon steel, Alloy steel Under HrC 30 80 200 0.01 0.04 100 250 0.04 0.06 High Carbon steel, Alloy steel HrC 30-40 150 250 0.02 0.06 150 300 0.05 0.10 Aluminum, Copper 150 300 0.04 0.08 150 350 0.05 0.10 Cast iron 80 150 0.02 0.06 100 250 0.05 0.10 Stainless steel 60 120 0.01 0.03 60 150 0.03 0.06 HRSA 60 80 0.01 0.03 60 100 0.03 0.06 Note) Please keep fz. Backtouch & Chipping one caused by wrong fz Machining Example Chamfering Grooving Centering Milling 254
