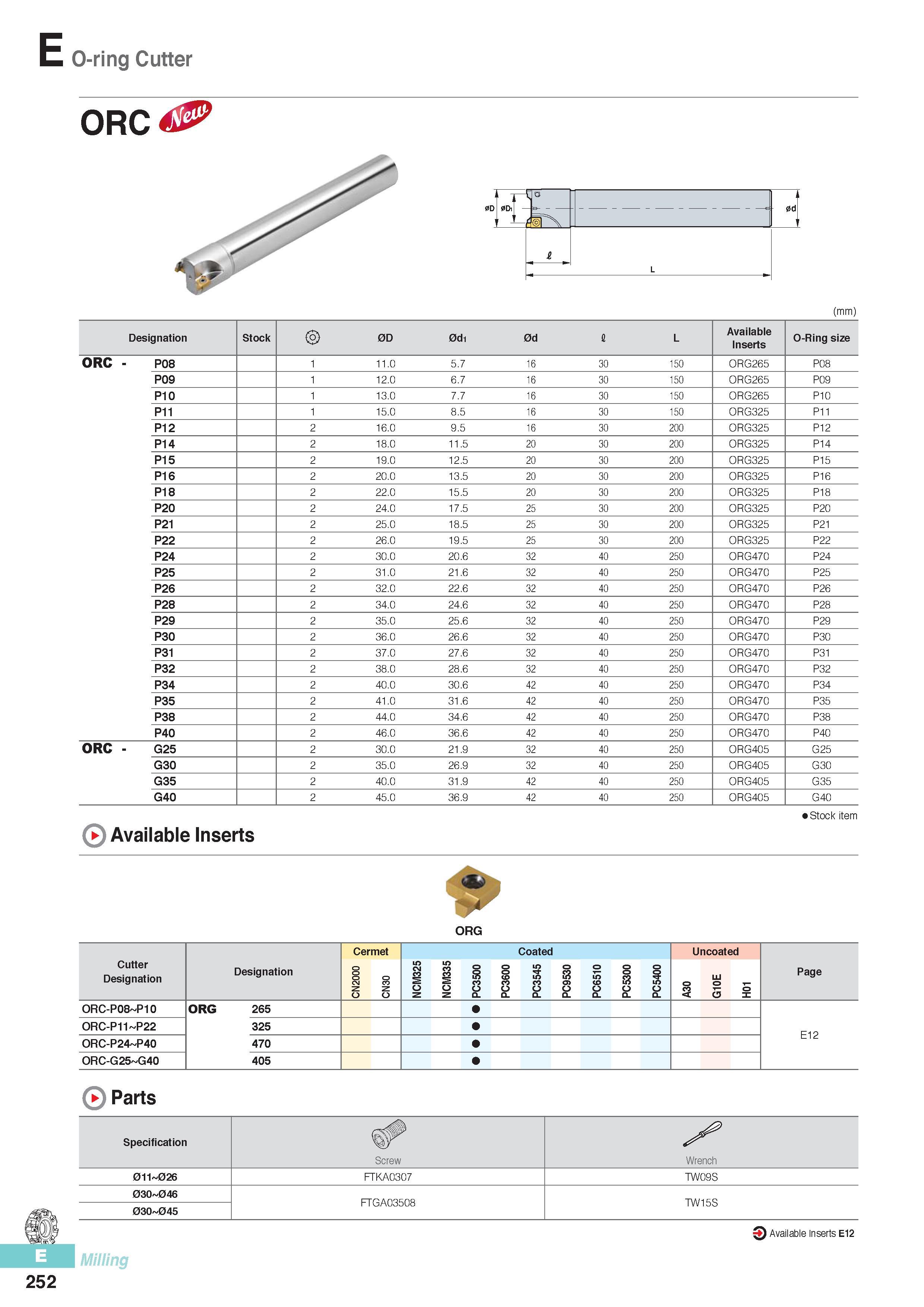

O-ring Cutter ORC t 0Di G o irx 0d t L > (mm) Designation Stock 0D 0d1 0d I L Available Inserts O-Ring size ORC - P08 11.0 5.7 16 30 150 ORG265 P08 P09 12.0 6.7 16 30 150 ORG265 P09 P10 13.0 7.7 16 30 150 ORG265 P10 P11 15.0 8.5 16 30 150 ORG325 P11 P12 2 16.0 9.5 16 30 200 ORG325 P12 P14 2 18.0 11.5 20 30 200 ORG325 P14 P15 2 19.0 12.5 20 30 200 ORG325 P15 P16 2 20.0 13.5 20 30 200 ORG325 P16 P18 2 22.0 15.5 20 30 200 ORG325 P18 P20 2 24.0 17.5 25 30 200 ORG325 P20 P21 2 25.0 18.5 25 30 200 ORG325 P21 P22 2 26.0 19.5 25 30 200 ORG325 P22 P24 2 30.0 20.6 32 40 250 ORG470 P24 P25 2 31.0 21.6 32 40 250 ORG470 P25 P26 2 32.0 22.6 32 40 250 ORG470 P26 P28 2 34.0 24.6 32 40 250 ORG470 P28 P29 2 35.0 25.6 32 40 250 ORG470 P29 P30 2 36.0 26.6 32 40 250 ORG470 P30 P31 2 37.0 27.6 32 40 250 ORG470 P31 P32 2 38.0 28.6 32 40 250 ORG470 P32 P34 2 40.0 30.6 42 40 250 ORG470 P34 P35 2 41.0 31.6 42 40 250 ORG470 P35 P38 2 44.0 34.6 42 40 250 ORG470 P38 P40 2 46.0 36.6 42 40 250 ORG470 P40 ORC - G25 2 30.0 21.9 32 40 250 ORG405 G25 G30 2 35.0 26.9 32 40 250 ORG405 G30 G35 2 40.0 31.9 42 40 250 ORG405 G35 G40 2 45.0 36.9 42 40 250 ORG405 G40 Available Inserts Stock item org Cermet Coated Uncoated Cutter Designation Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page 0RC-P08 P10 ORG 265 E12 0RC-P11 P22 325 0RC-P24 P40 470 0RC-G25 G40 405 Parts Specification s Screw Wrench 011 026 FTKA0307 TW09S 030 046 FTGA03508 TW15S 030 045 Milling 252 Available Inserts E12
