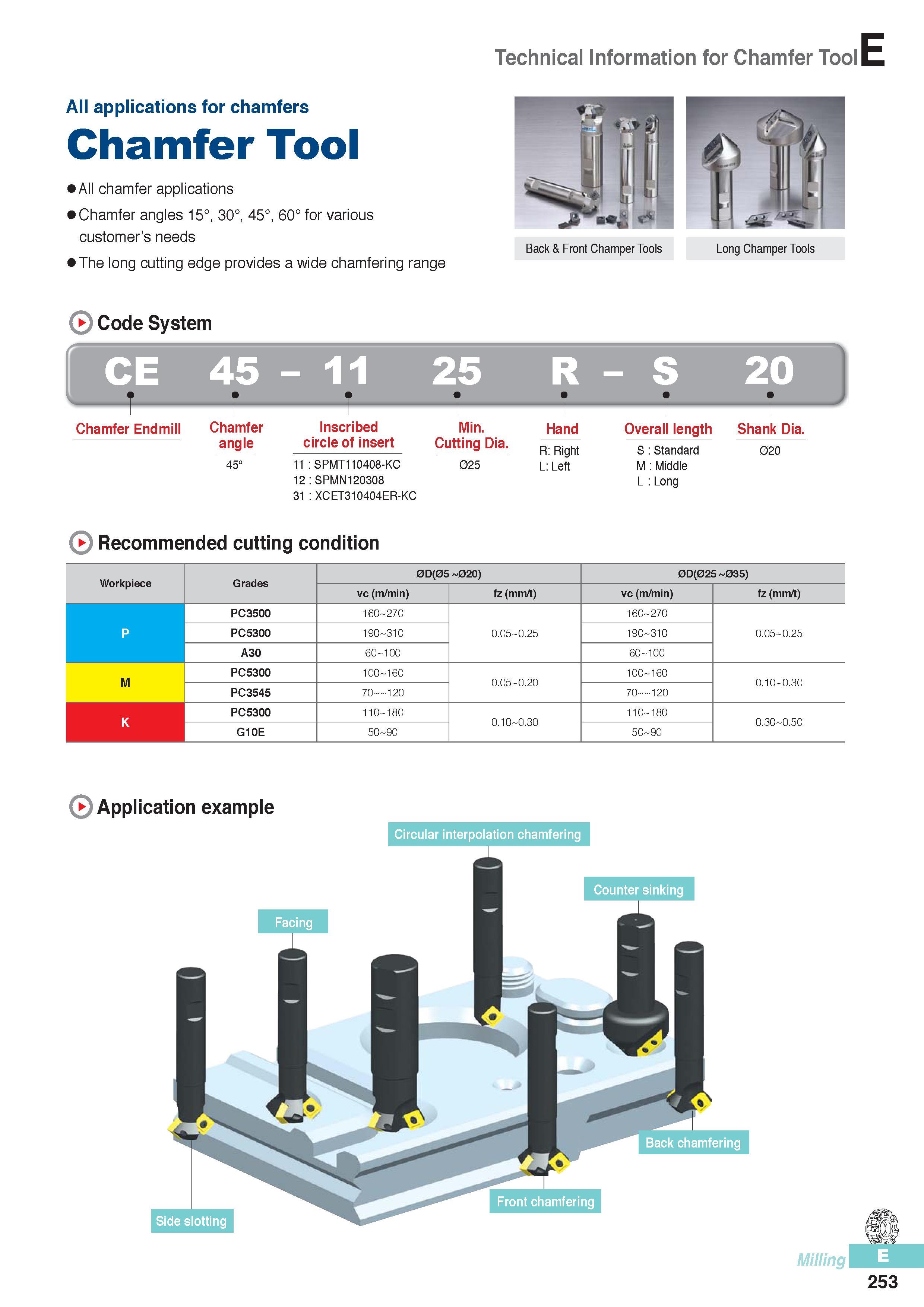

All applications for chamfers Chamfer Tool All chamfer applications Chamfer angles 15°, 30°, 45°, 60° for various customer’s needs The long cutting edge provides a wide chamfering range Technical Information for Chamfer Tool Back & Front Champer Tools Long Champer Tools Code System CE 45 - 11 25 - S 20 Chamfer Endmill Chamfer Inscribed angle circle of insert 45° 11 :SPMT110408-KC 12 SPMN120308 31 XCET310404ER-KC Min. Cutting Dia. 025 Hand R: Right L: Left Overall length Shank Dia. S Standard M Middle L :Long 020 Recommended cutting condition Workpiece Grades 0D(05 020) 0D(025 035) vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) P PC3500 160-270 0.05-0.25 160-270 0.05-0.25 PC5300 190-310 190-310 A30 60-100 60-100 M PC5300 100-160 0.05-0.20 100-160 0.10-0.30 PC3545 70 120 70 120 K PC5300 110-180 0.10-0.30 110-180 0.30-0.5C G10E 5 0 1 CD O 5 0 1 CD O Application example Circular interpolation chamfering Counter sinking Back chamfering Front chamfering Milling 253
