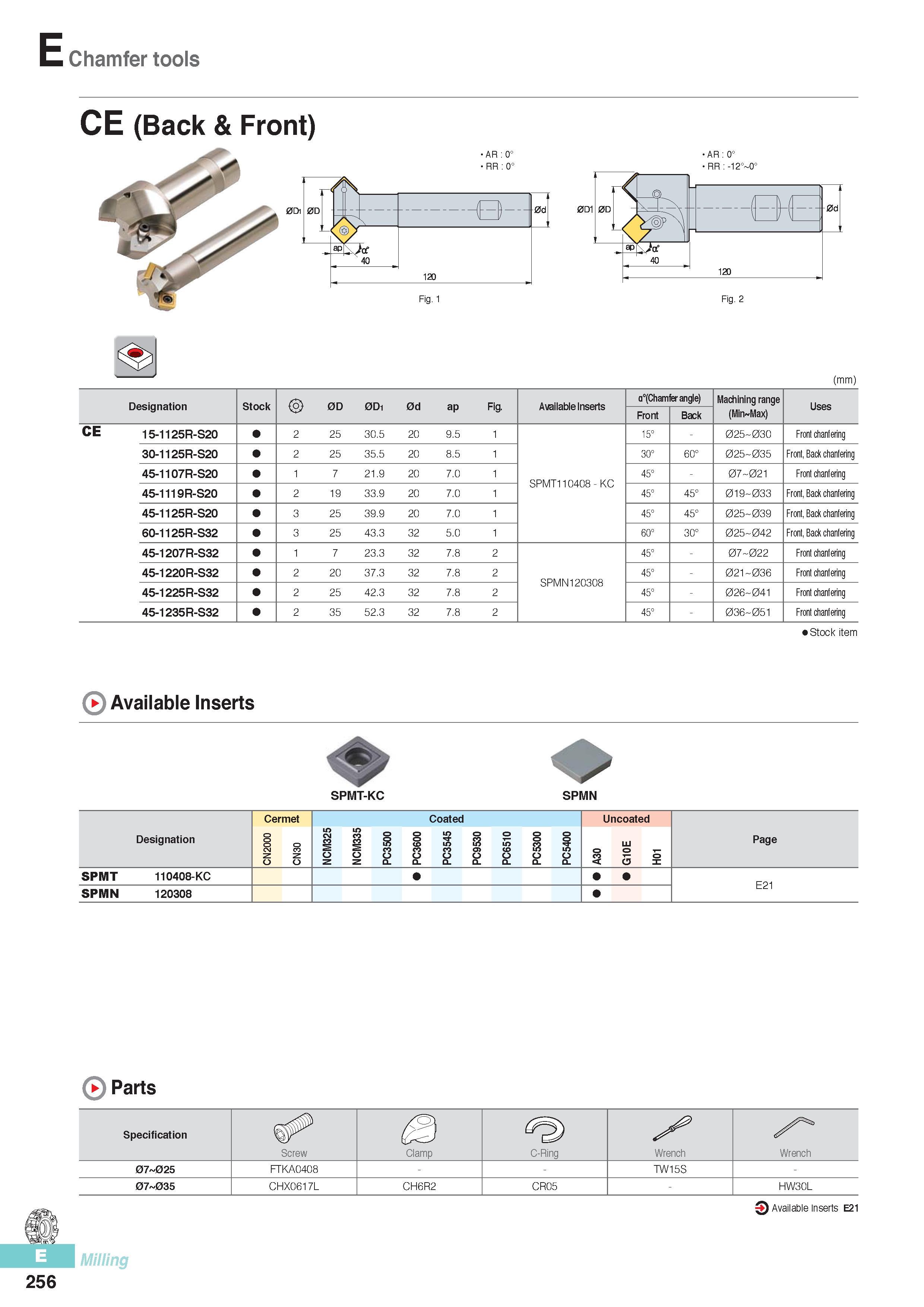

Chamfer tools CE (Back & Front) AR:0° RR:0° AR:0° RR -12° 0° Fig. 1 (mm) Designation Stock 0D 0D1 0d ap Fig. Available Inserts a0(Chamferangle) Machining range Uses Front Back (Min Max) CE 15-1125R-S20 2 25 30.5 20 9.5 1 15° 025 030 Front chanfering 30-1125R-S20 2 25 35.5 20 8.5 1 30° 60° 025 035 Front, Back chanfering 45-1107R-S20 7 21.9 20 7.0 1 SPMT110408 - KC 45° 07 021 Front chanfering 45-1119R-S20 2 19 33.9 20 7.0 1 45° 45° 019 033 Front, Back chanfering 45-1125R-S20 3 25 39.9 20 7.0 1 45° 45° 025 039 Front, Back chanfering 60-1125R-S32 3 25 43.3 32 5.0 1 60° 30° 025 042 Front, Back chanfering 45-1207R-S32 7 23.3 32 7.8 2 45° 07 022 Front chanfering 45-1220R-S32 2 20 37.3 32 7.8 2 SPMN120308 45° 021 036 Front chanfering 45-1225R-S32 2 25 42.3 32 7.8 2 45° 026 041 Front chanfering 45-1235R-S32 2 35 52.3 32 7.8 2 45° 036 051 Front chanfering Stock item Available Inserts SPMN Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SPMT 110408-KC E21 SPMN 120308 SPMT-KC 0 Parts Specification s Screw Clamp C-Ring Wrench Wrench 07 025 FTKA0408 TW15S - 07 035 CHX0617L CH6R2 CR05 - HW30L Available Inserts E21 Milling 256
