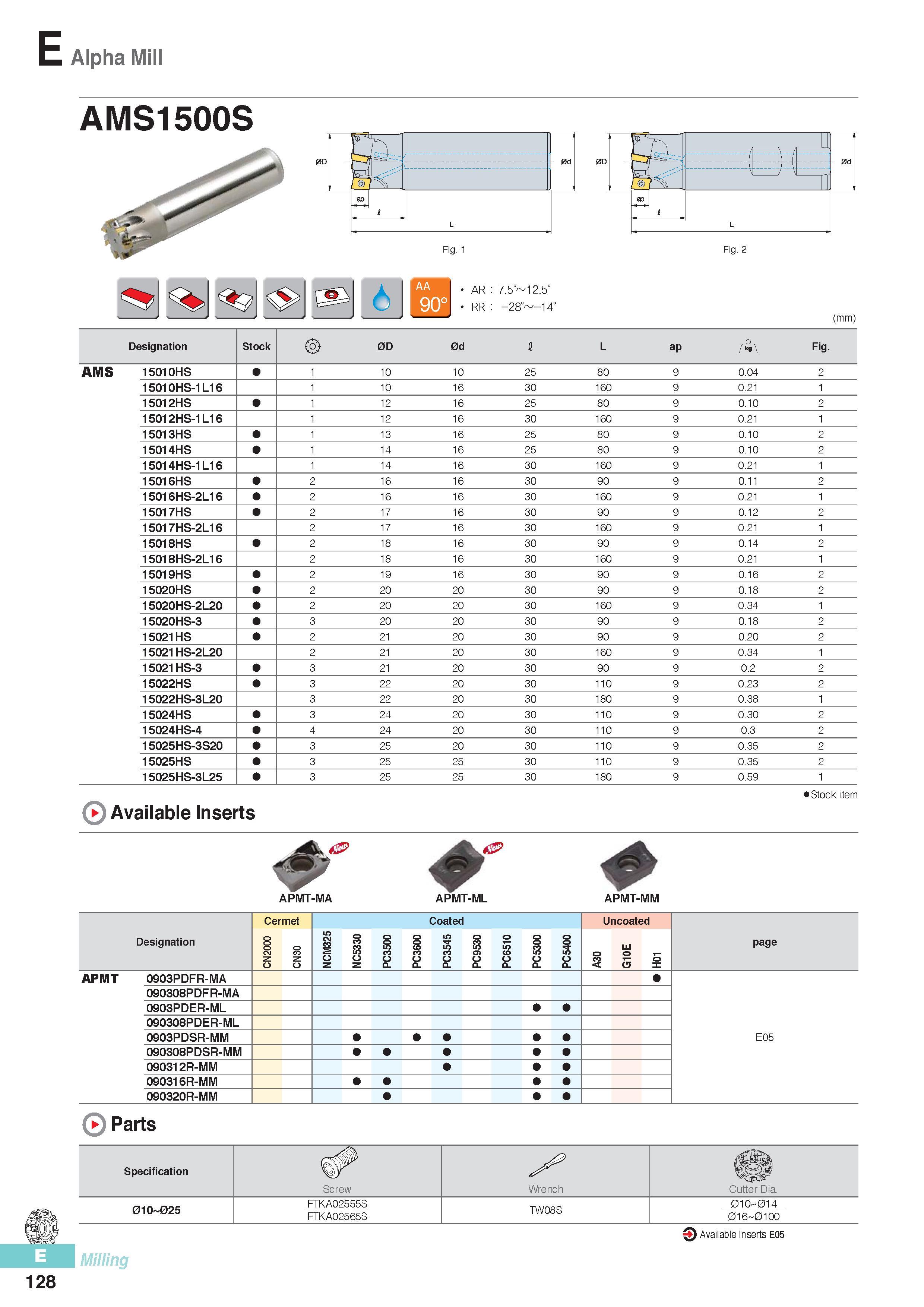

E Alpha Mill AMS1500S 0d fWr\i jsJ i L Fig. 1 AR 7.5° 12.5‘ RR -28° -14‘ Fig. 2 (mm) Designation Stock 0D 0d I L ap f+\ Fig. AMS 15010HS 10 10 25 80 9 0.04 2 15010HS-1L16 10 16 30 1 60 9 0.21 1 15012HS 12 16 25 80 9 0.10 2 15012HS-1L16 12 16 30 1 60 9 0.21 1 15013HS 13 16 25 80 9 0.10 2 15014HS 14 16 25 80 9 0.10 2 15014HS-1L16 14 16 30 1 60 9 0.21 1 15016HS 2 16 16 30 90 9 0.11 2 15016HS-2L16 2 16 16 30 1 60 9 0.21 1 15017HS 2 17 16 30 90 9 0.12 2 15017HS-2L16 2 17 16 30 1 60 9 0.21 1 15018HS 2 18 16 30 90 9 0.14 2 15018HS-2L16 2 18 16 30 1 60 9 0.21 1 15019HS 2 19 16 30 90 9 0.16 2 15020HS 2 20 20 30 90 9 0.18 2 15020HS-2L20 2 20 20 30 1 60 9 0.34 1 15020HS-3 3 20 20 30 90 9 0.18 2 15021HS 2 21 20 30 90 9 0.20 2 15021HS-2L20 2 21 20 30 1 60 9 0.34 1 15021HS-3 3 21 20 30 90 9 0.2 2 15022HS 3 22 20 30 110 9 0.23 2 15022HS-3L20 3 22 20 30 180 9 0.38 1 15024HS 3 24 20 30 110 9 0.30 2 15024HS-4 4 24 20 30 110 9 0.3 2 15025HS-3S20 3 25 20 30 110 9 0.35 2 15025HS 3 25 25 30 110 9 0.35 2 15025HS-3L25 3 25 25 30 180 9 0.59 1 ( Available Inserts Stock item APMT-MA APMT-ML APMT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 090308PDER-ML 0903PDSR-MM E05 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM ( Parts Specification Screw Wrench Cutter Dia. 010 025 FTKA02555S TW08S 010 014 FTKA02565S 016 0100 O Available Inserts E05 Milling 128
