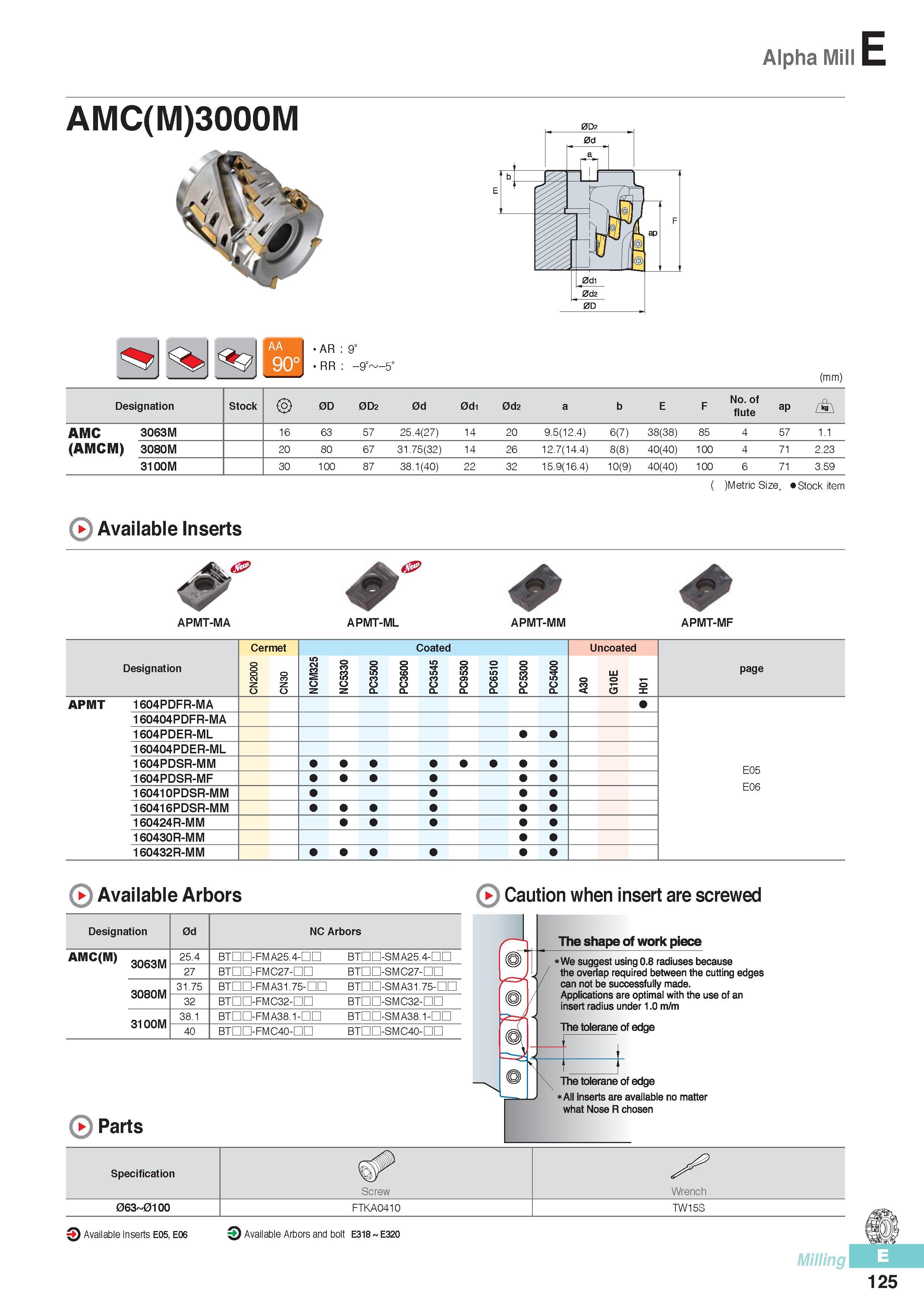

Alpha Mill E AMC(M)3000M MX. v. AR 9° RR - (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F No. of flute ap AMC 3063M 16 63 57 25.4(27) 14 20 9.5(12.4) 6(7) 38(38) 85 4 57 1.1 (AMCM) 3080M 20 80 67 31.75(32) 14 26 12.7(14.4) 8(8) 40(40) 100 4 71 2.23 3100M 30 100 87 38.1(40) 22 32 15.9(16.4) 10(9) 40(40) 100 6 71 3.59 ( )Metric Size, Stock item AA 90 ( Available Inserts APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 page APMT 1604PDFR-MA E05 E06 160404PDFR-MA 1604PDER-ML 160404PDER-ML 1604PDSR-MM 1604PDSR-MF 160410PDSR-MM 160416PDSR-MM 160424R-MM 160430R-MM 160432R-MM ( Available Arbors Designation 0d NC Arbors AMC(M) 3063M 25.4 BTHD-FMA25.4-HD BTHD-SMA25.4-HD 27 BTHD-FMC27-HO BTHD-SMC27-HO 3080M 31.75 BTHD-FMA31.75-HO BTHD-SMA31.75-HO 32 BTHD-FMC32-HO BTHD-SMC32-HO 3100M 38.1 BTHD-FMA38.1-HD BTHD-SMA38.1-HD 40 BTHD-FMC40-HO BTHD-SMC40-HO ( Caution when insert are screwed The shape of work piece We suggest using 0.8 radiuses because the overlap required between the cutting edges can not be successfully made. Applications are optimal with the use of an insert radius under 1.0 m/m The tolerane of edge ( Parts The tolerane of edge Ail inserts are available no matter what Nose R chosen Specification Screw Wrench 063 0100 FTKA0410 TW15S O Available Inserts E05, E06 OAvailable Arbors and bolt E318 E320 Milling 125
