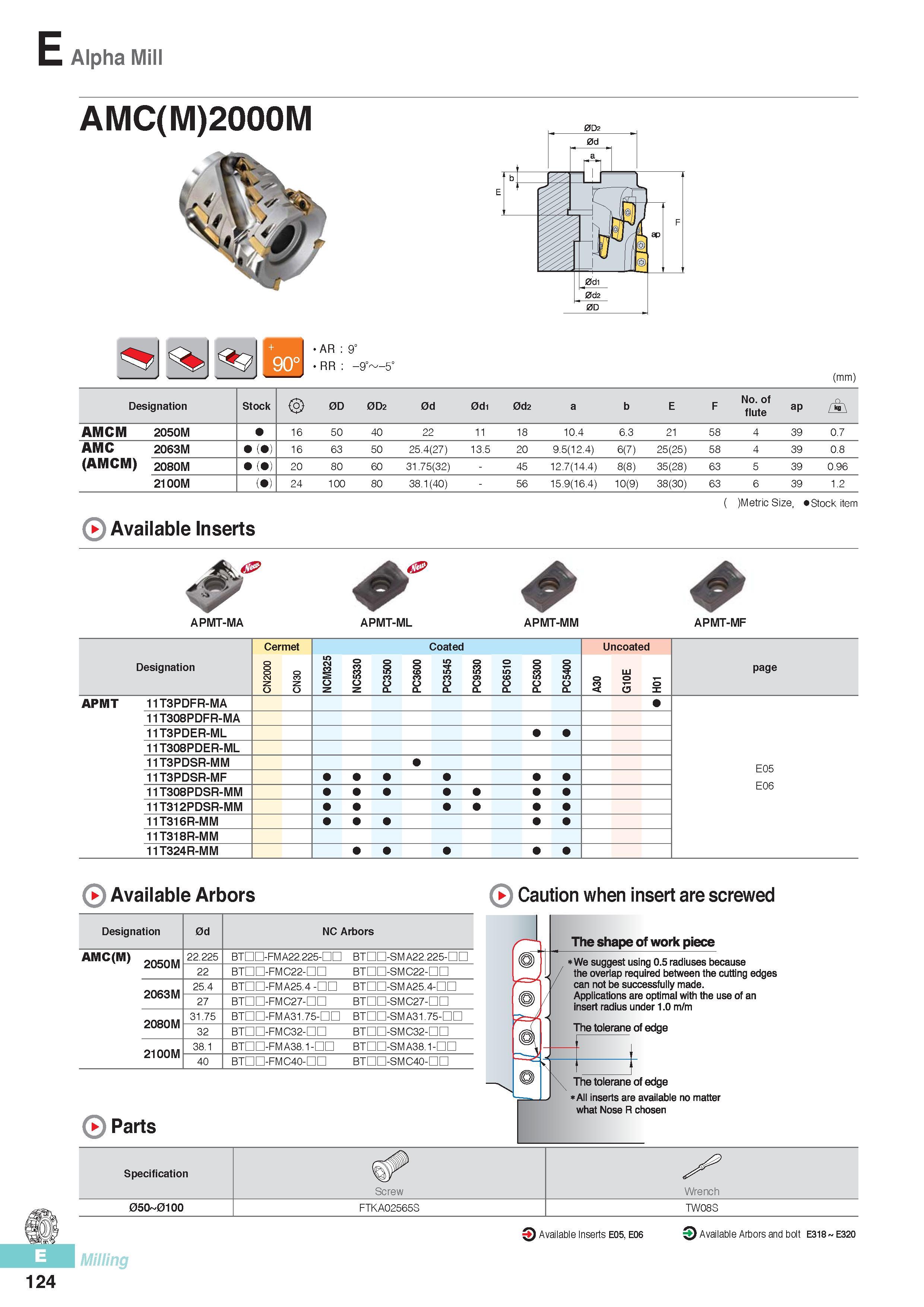

E Alpha Mill AMC(M)2000M AR 9‘ RR - (mm) Designation Stock 0D 0D2 0d 0d1 0d2 a b E F No. of flute ap A AMCM 2050M 16 50 40 22 11 18 10.4 6.3 21 58 4 39 0.7 AMC 2063M ( ) 16 63 50 25.4(27) 13.5 20 9.5(12.4) 6(7) 25(25) 58 4 39 0.8 (AMCM) 2080M ( ) 20 80 60 31.75(32) 45 12.7(14.4) 8(8) 35(28) 63 5 39 0.96 2100M ( ) 24 100 80 38.1(40) 56 15.9(16.4) 10(9) 38(30) 63 6 39 1.2 Available Inserts ( )Metric Size, Stock item APMT-MA APMT-ML APMT-MM APMT-MF Designation Cermet 23 Coated 53 CC NP 53 54 CCC PPP Uncoated 31 page APMT 11T3PDFR-MA 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM E05 E06 Available Arbors Caution when insert are screwed Designation 0d NC Arbors AMC(M) 2050M 22.225 BTDD-FMA22.225-nn BTDD-SMA22.225-nn 22 BTHD-FMC22-HD BTHO-SMC22-HD 2063M 25.4 BTDD-FMA25.4 - BTHO-SMA25.4-HD 27 BTHD-FMC27-HD BTHO-SMC27-HD 2080M 31.75 BTHD-FMA31.75-HD BTHO-SMA31.75-HD 32 BTHD-FMC32-HD BTHO-SMC32-HD 2100M 38.1 BTHD-FMA38.1-HO BTHO-SMA38.1-HD 40 BTHD-FMC40-HD BTHO-SMC40-HD Parts The shape of work piece We suggest using 0.5 radiuses because the overlap required between the cutting edges can not be successfully made. Applications are optimal with the use of an insert radius under 1.0 m/m The tolerane of edge The tolerane of edge All inserts are available no matter what Nose R chosen Specification Screw Wrench 050 0100 FTKA02565S TW08S 3 Available Inserts E05, E06 O Available Arbors and bolt E318 E320 Milling 124
