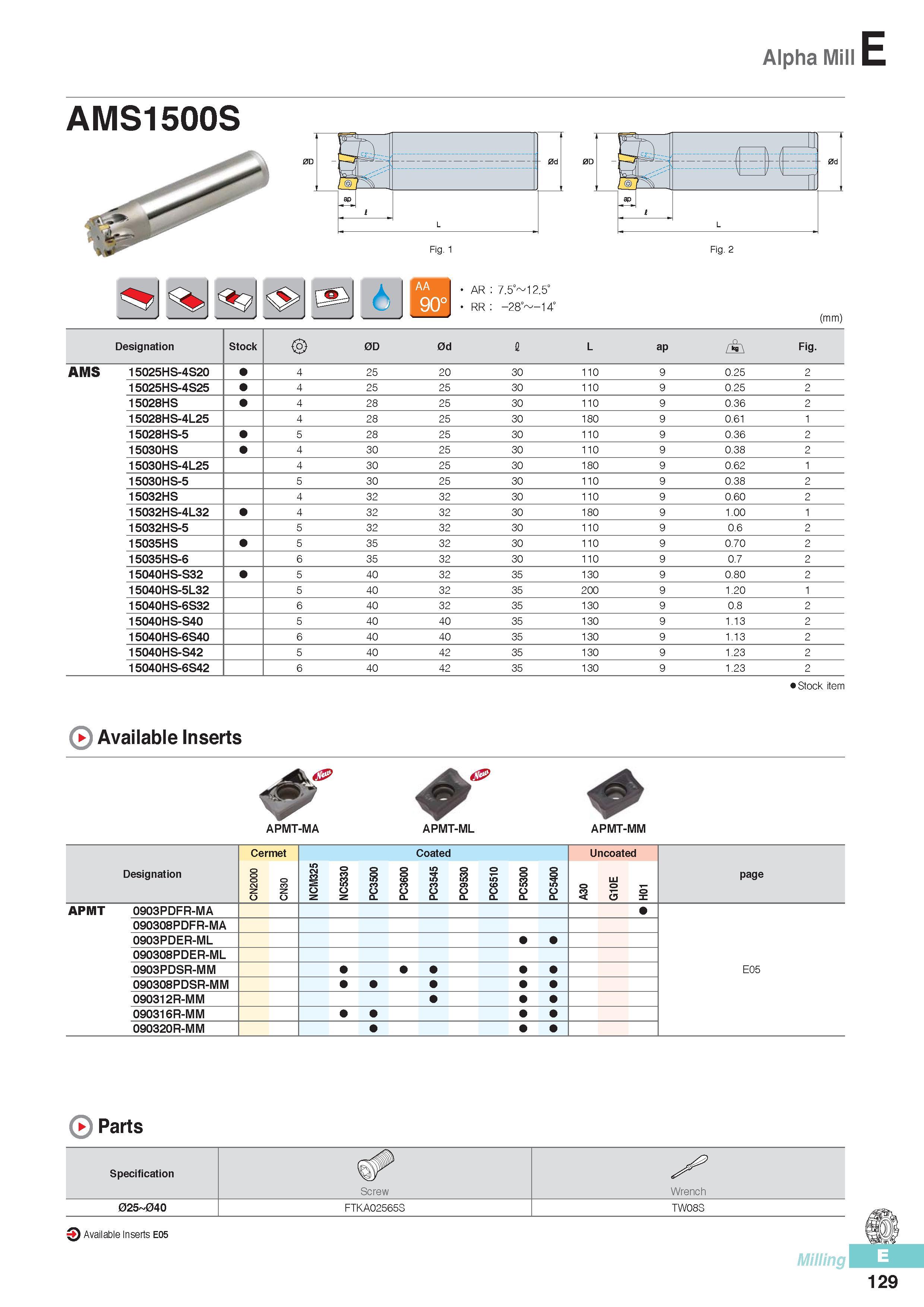

Alpha Mill E AMS1500S Fig. 1 Fig. 2 AR 7.5° 12.5‘ RR -28° -14‘ (mm) Designation Stock 0D 0d I L ap f \ Fig. AMS 15025HS-4S20 4 25 20 30 110 9 0.25 2 15025HS-4S25 4 25 25 30 110 9 0.25 2 15028HS 4 28 25 30 110 9 0.36 2 15028HS-4L25 4 28 25 30 180 9 0.61 1 15028HS-5 5 28 25 30 110 9 0.36 2 15030HS 4 30 25 30 110 9 0.38 2 15030HS-4L25 4 30 25 30 1 80 9 0.62 1 15030HS-5 5 30 25 30 110 9 0.38 2 15032HS 4 32 32 30 110 9 0.60 2 15032HS-4L32 4 32 32 30 1 80 9 1.00 1 15032HS-5 5 32 32 30 110 9 0.6 2 15035HS 5 35 32 30 110 9 0.70 2 15035HS-6 6 35 32 30 110 9 0.7 2 15040HS-S32 5 40 32 35 1 30 9 0.80 2 15040HS-5L32 5 40 32 35 200 9 1.20 1 15040HS-6S32 6 40 32 35 130 9 0.8 2 15040HS-S40 5 40 40 35 1 30 9 1.13 2 15040HS-6S40 6 40 40 35 130 9 1.13 2 15040HS-S42 5 40 42 35 130 9 1.23 2 15040HS-6S42 6 40 42 35 130 9 1.23 2 Stock item 0 Available Inserts APMT-MA APMT-ML APMT-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 page APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 090308PDER-ML 0903PDSR-MM E05 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM ( Parts Specification S’ Screw Wrench 025 040 FTKA02565S TW08S Available Inserts E05 Milling 129
