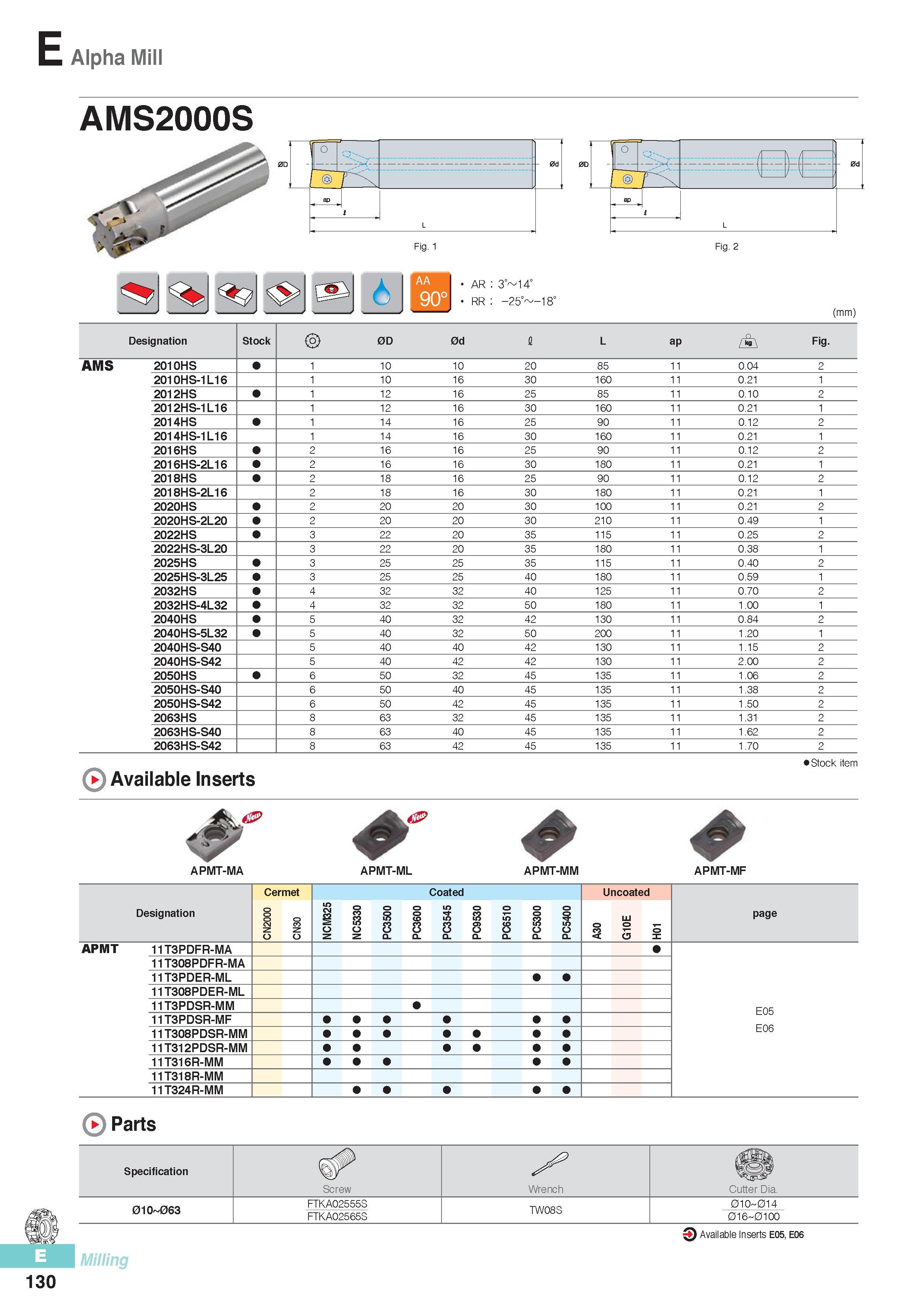

E Alpha Mill AMS2000S AR 3° 14‘ RR -25° -18 (mm) Designation Stock 0D 0d I L ap A Fig. AMS 2010HS 10 10 20 85 11 0.04 2 2010HS-1L16 10 16 30 1 60 11 0.21 1 2012HS 12 16 25 85 11 0.10 2 2012HS-1L16 12 16 30 1 60 11 0.21 1 2014HS 14 16 25 90 11 0.12 2 2014HS-1L16 14 16 30 1 60 11 0.21 1 2016HS 2 16 16 25 90 11 0.12 2 2016HS-2L16 2 16 16 30 180 11 0.21 1 2018HS 2 18 16 25 90 11 0.12 2 2018HS-2L16 2 18 16 30 180 11 0.21 1 2020HS 2 20 20 30 1 11 0.21 2 2020HS-2L20 2 20 20 30 210 11 0.49 1 2022HS 3 22 20 35 115 11 0.25 2 2022HS-3L20 3 22 20 35 180 11 0.38 1 2025HS 3 25 25 35 115 11 0.40 2 2025HS-3L25 3 25 25 40 180 11 0.59 1 2032HS 4 32 32 40 125 11 0.70 2 2032HS-4L32 4 32 32 50 180 11 1.00 1 2040HS 5 40 32 42 130 11 0.84 2 2040HS-5L32 5 40 32 50 200 11 1 .20 1 2040HS-S40 5 40 40 42 130 11 1.15 2 2040HS-S42 5 40 42 42 130 11 2.00 2 2050HS 6 50 32 45 135 11 1.06 2 2050HS-S40 6 50 40 45 135 11 1 .38 2 2050HS-S42 6 50 42 45 135 11 1 .50 2 2063HS 8 63 32 45 135 11 1 .31 2 2063HS-S40 8 63 40 45 135 11 1.62 2 2063HS-S42 8 63 42 45 135 11 1 .70 2 Available Inserts Stock item APMT-MA APMT-ML A APMT-MM APMT-MF Designation Cermet Coated m S3 S 3 S3 o 8 8 8 S C6 Q. 3 C o. Uncoated page APMT 11T3PDFR-MA 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM E05 E06 Parts Specification s Screw Wrench Cutter Dia. 010 063 FTKA02555S TW08S 010 014 FTKA02565S 016 0100 Milling 130 3 Available Inserts E05, E06
