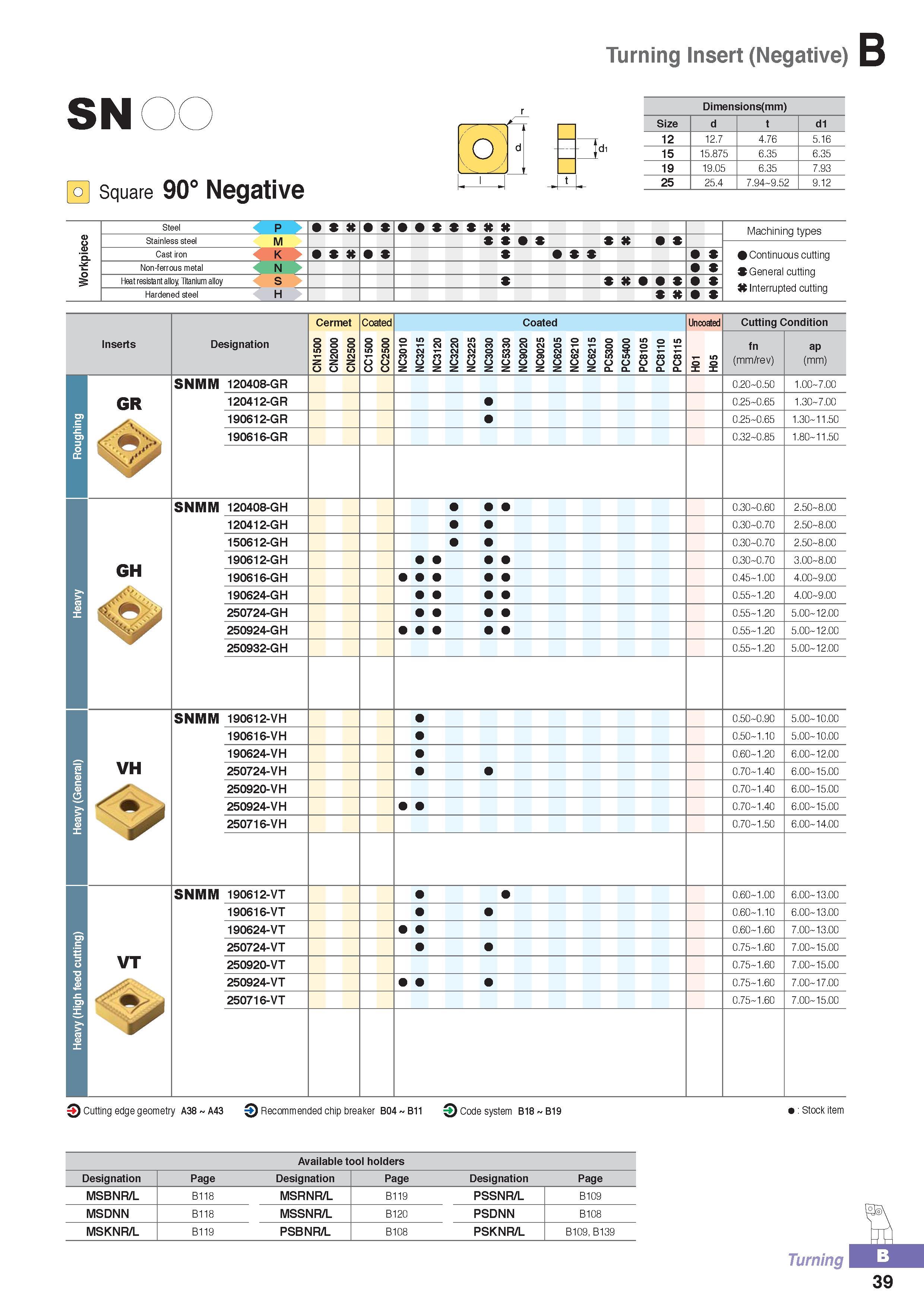

Turning Insert (Negative) SN o Square 90° Negative O Dimensions (mm) Size d d1 12 12.7 4.76 5.16 15 15.875 6.35 6.35 19 19.05 6.35 7.93 25 25.4 7.94 9.52 9.12 Steel p K Stainless steel M S Cast iron K Non-ferrous metal N Heat resistant alloy Titanium alloy S Hardened steel H Machining types Continuous cutting General cutting Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) GR SNMM 120408-GR 0.20 0.50 1.00 7.00 120412-GR 0.25 0.65 1.30 7.00 190612-GR 0.25 0.65 1.30 11.50 190616-GR 0.32 0.85 1.80 11.50 GH SNMM 120408-GH 0.30 0.60 2.50 8.00 120412-GH 0.30 0.70 2.50 8.00 150612-GH 0.30 0.70 2.50 8.00 190612-GH 0.30 0.70 3.00 8.00 190616-GH 0.45 1.00 4.00 9.00 190624-GH 0.55 1.20 4.00 9.00 250724-GH 0.55 1.20 5.00 12.00 250924-GH 0.55 1.20 5.00 12.00 250932-GH 0.55 1.20 5.00 12.00 VH SNMM 190612-VH 0.50 0.90 5.00 10.00 190616-VH 0.50 1.10 5.00 10.00 190624-VH 0.60 1.20 6.00 12.00 250724-VH 0.70 1.40 6.00 15.00 250920-VH 0.70 1.40 6.00 15.00 250924-VH 0.70 1.40 6.00 15.00 250716-VH 0.70 1.50 6.00 14.00 VT SNMM 190612-VT 0.60 1.00 6.00 13.00 190616-VT 0.60 1.10 6.00 13.00 190624-VT 0.60 1.60 7.00 13.00 250724-VT 0.75 1.60 7.00 15.00 250920-VT 0.75 1.60 7.00 15.00 250924-VT 0.75 1.60 7.00 17.00 250716-VT 0.75 1.60 7.00 15.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page Designation Page MSBNR/L B118 MSRNR/L B119 PSSNR/L B109 MSDNN B118 MSSNR/L B120 PSDNN B108 MSKNR/L B119 PSBNR/L B108 PSKNR/L B109, B139 Turning 39
