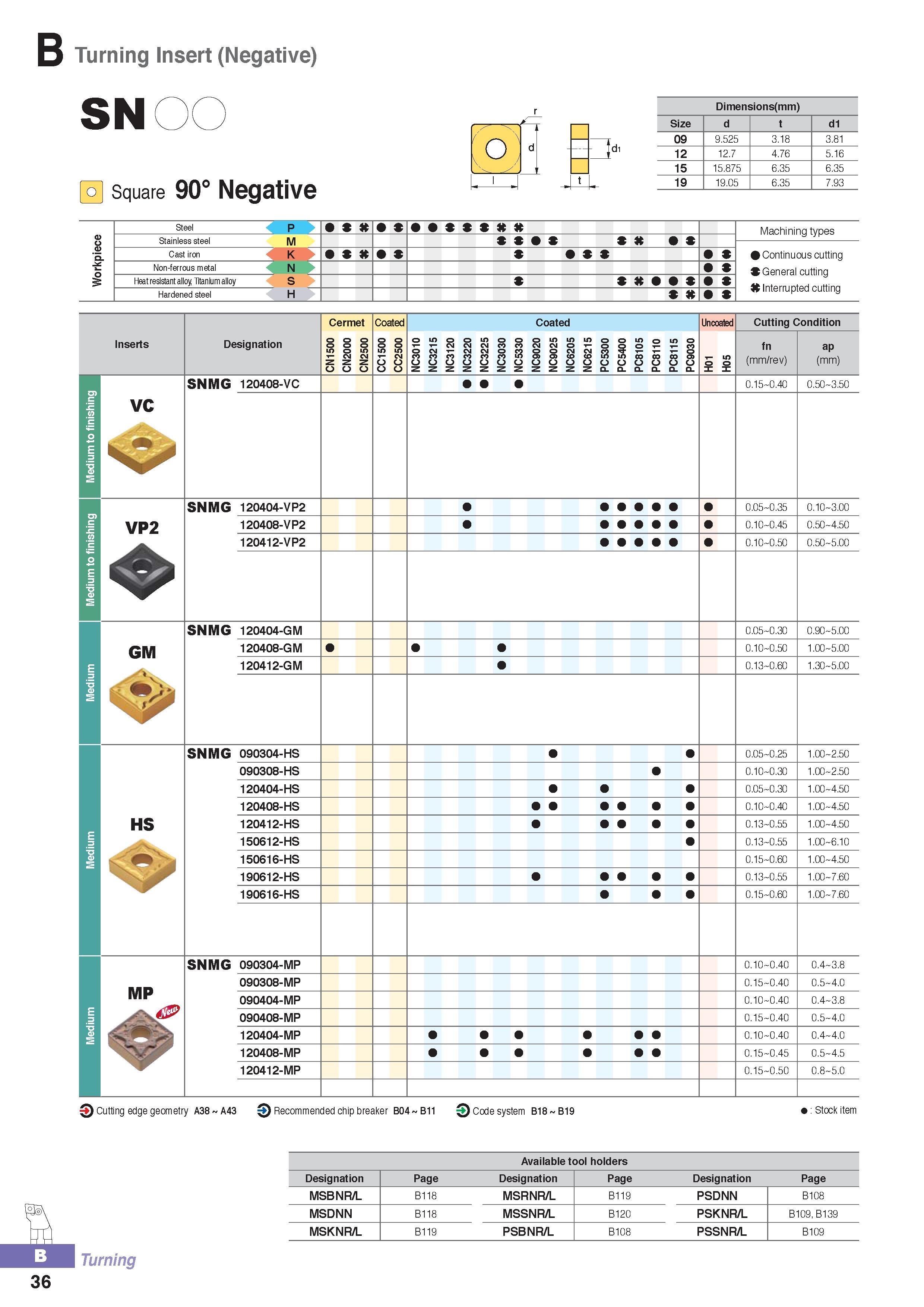

Turning Insert (Negative) SN o Square 90° Negative O Dimensions (mm) Size d d1 09 9.525 3.18 3.81 12 12.7 4.76 5.16 15 15.875 6.35 6.35 19 19.05 6.35 7.93 Workpiece Steel P G XX Machining types Continuous cutting General cutting Interrupted cutting Stainless steel M t t t X t Cast iron K X t Non-ferrous metal N Heat resistant alloy Titanium alloy S X Hardened steel H X Inserts Designation Cermet mom w w z z z oo o Coated w m w Coated Uncoated Cutting Condition NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 PC9030 H01 H05 fn (mm/rev) ap (mm) ro C c <0 c 0 1 3 13 VC SNMG 120408-VC 0.15 0.40 0.50 3.50 Medium to finishing VP2 SNMG 120404-VP2 0.05 0.35 0.10 3.00 120408-VP2 0.10 0.45 0.50 4.50 120412-VP2 0.10 0.50 0.50 5.00 m iu di e M GM SNMG 120404-GM 0.05 0.30 0.90 5.00 120408-GM 0.10 0.50 1.00 5.00 120412-GM 0.13 0.60 1.30 5.00 Medium HS SNMG 090304-HS 0.05 0.25 1.00 2.50 090308-HS 0.10 0.30 1.00 2.50 120404-HS 0.05 0.30 1.00 4.50 120408-HS 0.10 0.40 1.00 4.50 120412-HS 0.13 0.55 1.00 4.50 150612-HS 0.13 0.55 1.00 6.10 150616-HS 0.15 0.60 1.00 4.50 190612-HS 0.13 0.55 1.00 7.60 190616-HS 0.15 0.60 1.00 7.60 m iu di e M MP SNMG 090304-MP 0.10 0.40 0.4 3.8 090308-MP 0.15 0.40 0.5 4.0 090404-MP 0.10 0.40 0.4 3.8 090408-MP 0.15 0.40 0.5 4.0 120404-MP 0.10 0.40 0.4 4.0 120408-MP 0.15 0.45 0.5 4.5 120412-MP 0.15 0.50 0.8 5.0 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 36 Available tool holders Designation Page Designation Page Designation Page MSBNR/L B118 MSRNR/L B119 PSDNN B108 MSDNN B118 MSSNR/L B120 PSKNR/L B109, B139 MSKNR/L B119 PSBNR/L B108 PSSNR/L B109
