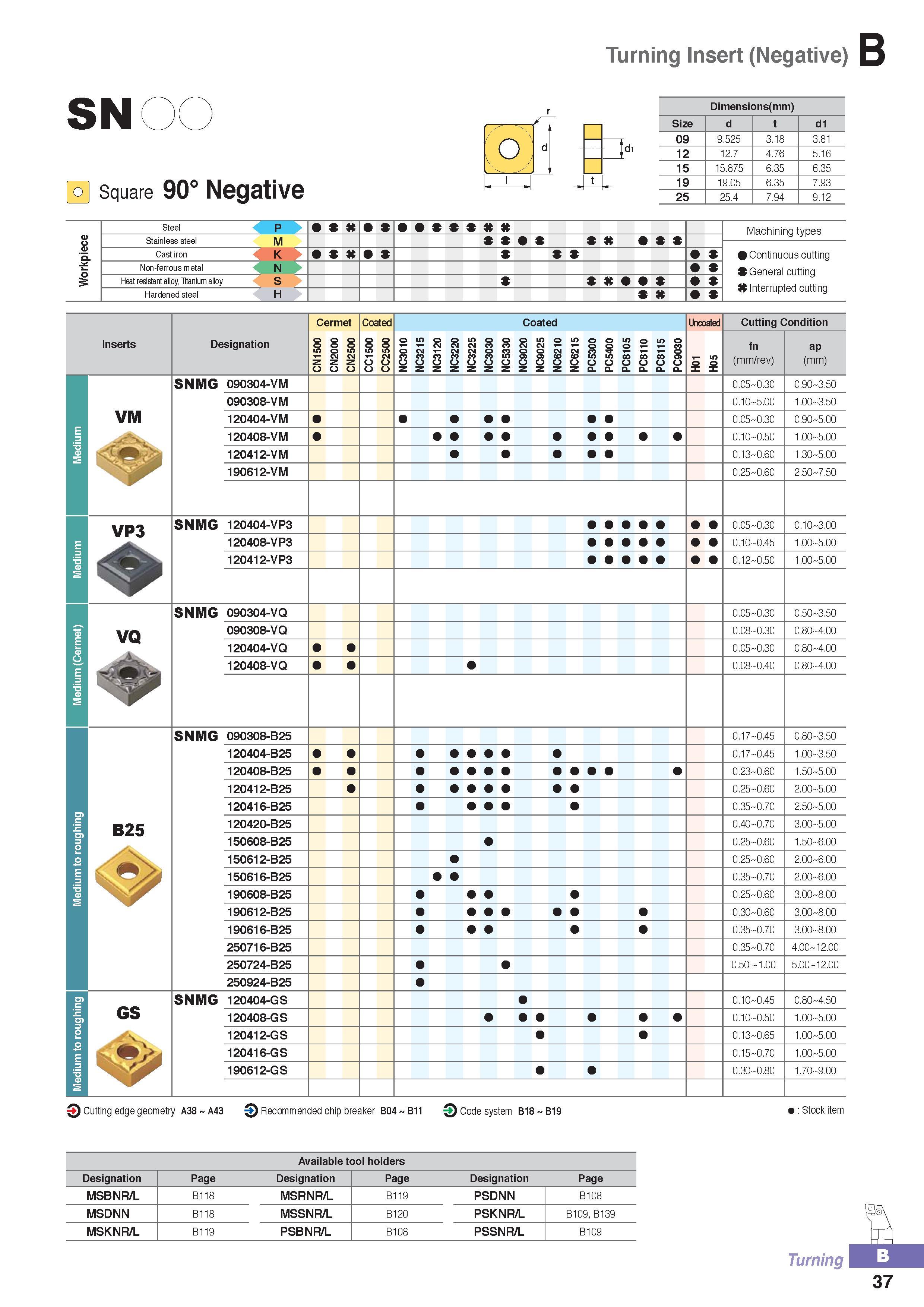

Turning Insert (Negative) SN o Square 90° Negative o V W / d - 1 J t Ud Dimensions (mm) Size d d1 09 9.525 3.18 3.81 12 12.7 4.76 5.16 15 15.875 6.35 6.35 19 19.05 6.35 7.93 25 25.4 7.94 9.12 Steel P Machining types Continuous cutting General cutting Interrupted cutting Stainless steel M S S S S X Cast iron K M Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H K Inserts Designation Cermet lo o lo M z z z o Coated LO LO 1- CJ Coated Uncoated Cutting Condition OLOOOL LOOLOOOLOOLOO 1-1-CJCJCJCOCOCJCJi-i-OOO t-CO 0CJi-CJCJ0M00CJCJ tFi-i-i-0 COCOCOCOCOCOLOaa(D(DLOL O ZZZZZZZZZZZQ.Q.Q.Q.Q.Q. H01 H05 fn (mm/rev) ap (mm) VM SNMG 090304-VM 0.05 0.30 0.90 3.50 090308-VM 0.10 5.00 1.00 3.50 120404-VM 0.05 0.30 0.90 5.00 120408-VM 0.10 0.50 1.00 5.00 120412-VM 0.13 0.60 1.30 5.00 190612-VM 0.25 0.60 2.50 7.50 VP3 SNMG 120404-VP3 0.05 0.30 0.10 3.00 120408-VP3 0.10 0.45 1.00 5.00 120412-VP3 0.12 0.50 1.00 5.00 VQ SNMG 090304-VQ 0.05 0.30 0.50 3.50 090308-VQ 0.08 0.30 0.80 4.00 120404-VQ 0.05 0.30 0.80 4.00 120408-VQ 0.08 0.40 0.80 4.00 B25 SNMG 090308-B25 0.17 0.45 0.80 3.50 120404-B25 0.17 0.45 1.00 3.50 120408-B25 0.23 0.60 1.50 5.00 120412-B25 0.25 0.60 2.00 5.00 120416-B25 0.35 0.70 2.50 5.00 120420-B25 0.40 0.70 3.00 5.00 150608-B25 0.25 0.60 1.50 6.00 150612-B25 0.25 0.60 2.00 6.00 150616-B25 0.35 0.70 2.00 6.00 190608-B25 0.25 0.60 3.00 8.00 190612-B25 0.30 0.60 3.00 8.00 190616-B25 0.35 0.70 3.00 8.00 250716-B25 0.35 0.70 4.00 12.00 250724-B25 0.50 1.00 5.00 12.00 250924-B25 GS SNMG 120404-GS 0.10 0.45 0.80 4.50 120408-GS 0.10 0.50 1.00 5.00 120412-GS 0.13 0.65 1.00 5.00 120416-GS 0.15 0.70 1.00 5.00 190612-GS 0.30 0.80 1.70 9.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page Designation Page MSBNR/L B118 MSRNR/L B119 PSDNN B108 MSDNN B118 MSSNR/L B120 PSKNR/L B109, B139 MSKNR/L B119 PSBNR/L B108 PSSNR/L B109 Turning 37
