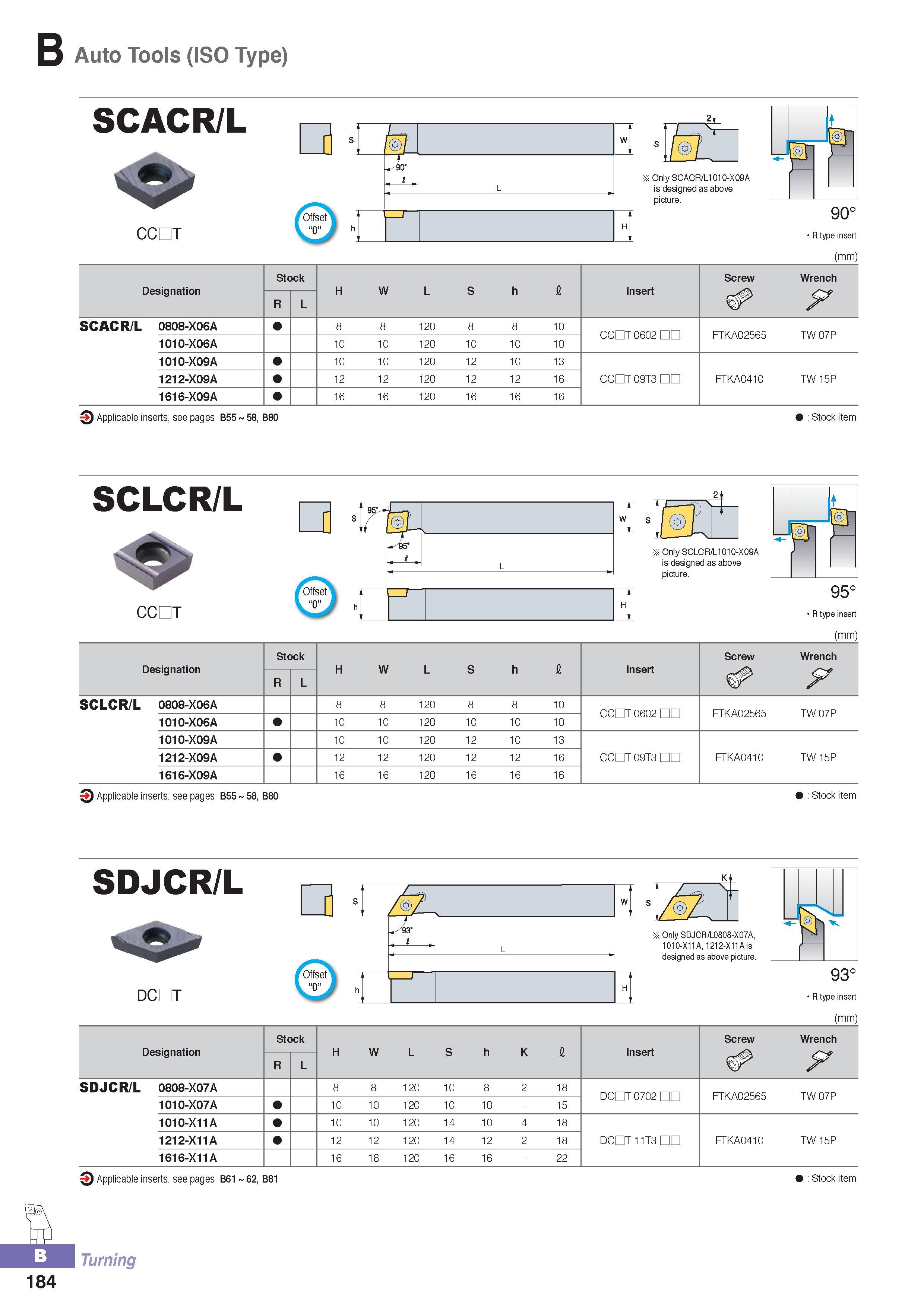

B Auto Tools (ISO Type) SCACR/L DT l fe a w Jo-„ t L I f a H ’f ( )l X Only SCACR/L1010-X09A is designed as above picture. R type insert (mm) Designation Stock H W L S h fi Insert Screw Wrench R L X SCACR/L 0808-X06A 8 8 120 8 8 10 CCDT 0602 FTKA02565 TW 07P 1010-X06A 10 10 120 10 10 10 1010-X09A 10 10 120 12 10 13 1212-X09A 12 12 120 12 12 16 CCDT 09T3 FTKA041C TW 15P 1616-X09A 16 16 120 16 16 16 3 Applicable inserts, see pages B55 58, B80 Stock item SCLCR/L CODT Offset rjs Only SCLCR/L1010-X09A is designed as above picture. R type insert (mm) Designation Stock H W L S h fi Insert Screw Wrench R L X SCLCR/L 0808-X06A 8 8 120 8 8 10 CCDT 0602 FTKA02565 TW 07P 1010-X06A 10 10 120 10 10 10 1010-X09A 10 10 120 12 10 13 1212-X09A 12 12 120 12 12 16 CCDT 09T3 FTKA0410 TW 15P 1616-X09A 16 16 120 16 16 16 3 Applicable inserts, see pages B55 58, B80 Stock item SDJCR/L DODT Only SDJ0R/L0808-X07A, 1010-X11A, 1212-X11A is designed as above picture. 93° R type insert (mm) Designation Stock H W L S h K fi Insert Screw Wrench R L X SDJCR/L 0808-X07A 8 8 120 10 8 2 18 DCDT 0702 FTKA02565 TW 07P 1010-X07A 10 10 120 10 10 15 1010-X11A 10 10 120 14 10 4 18 1212-X11A 12 12 120 14 12 2 18 DCDT 11T3 FTKA0410 TW 15P 1616-X11A 16 16 120 16 16 22 3 Applicable inserts, see pages B61 62, B81 Stock item 184 Turning
