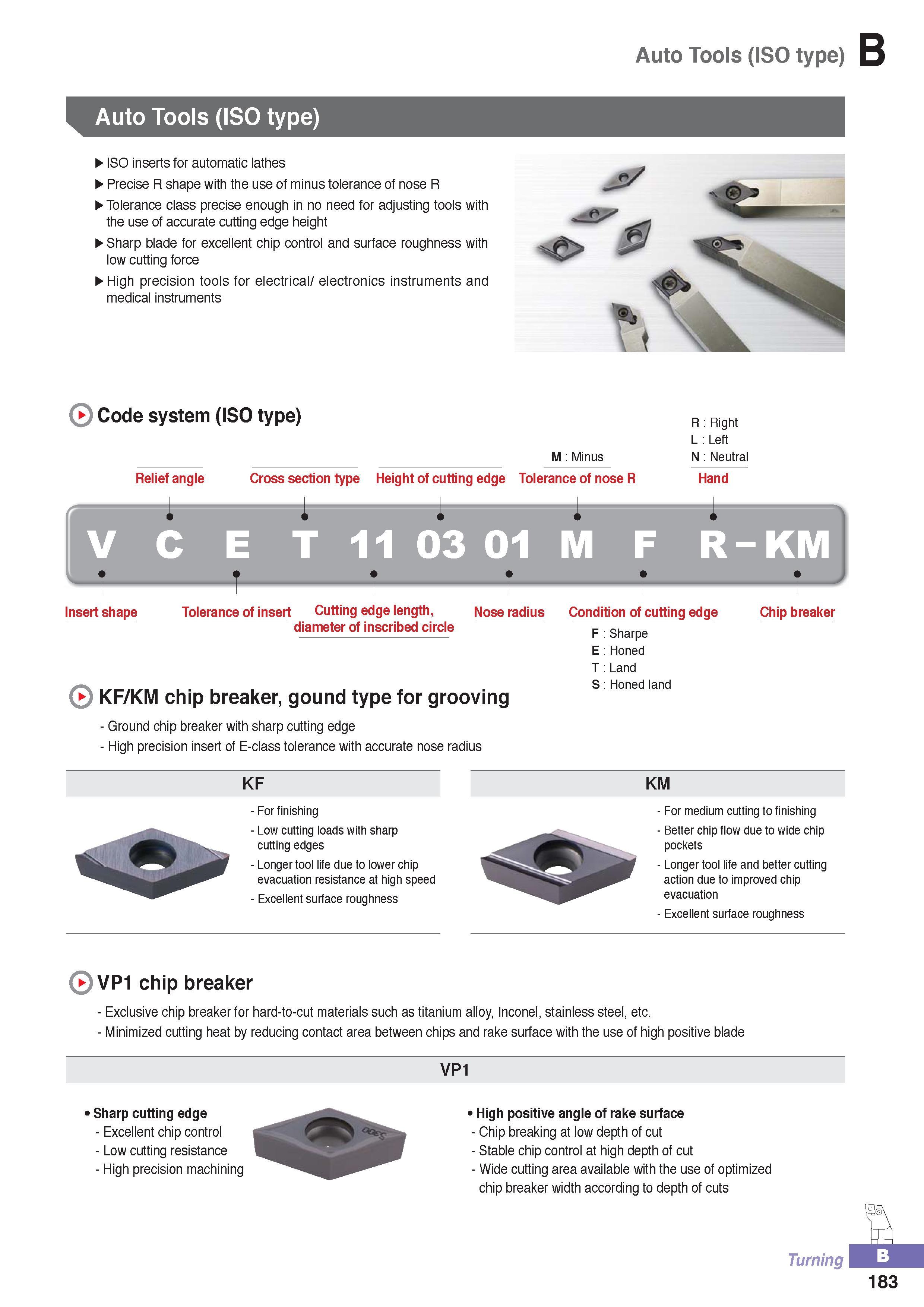

Lathe Auto Tools Korloy ISO type inserts for automatic lathes Precise R shape with the use of minus tolerance of nose R Tolerance class precise enough in no need for adjusting tools with the use of accurate cutting edge height Sharp blade for excellent chip control and surface roughness with low cutting force High precision tools for electrical/ electronics instruments and medical instruments Code system (ISO type) Relief angle M Minus Cross section type Height of cutting edge Tolerance of nose R R Right L Left N Neutral Hand f V C E T 11 03 01 1 M F R- KM Insert shape Tolerance of insert Cutting edge length, diameter of inscribed circle Nose radius Condition of cutting edge Chip breaker KF/KM chip breaker, gound type for grooving - Ground chip breaker with sharp cutting edge - High precision insert of E-class tolerance with accurate nose radius KF - For finishing - Low cutting loads with sharp cutting edges - Longer tool life due to lower chip evacuation resistance at high speed - Excellent surface roughness Sharpe Honed Land Honed land KM - For medium cutting to finishing - Better chip flow due to wide chip pockets - Longer tool life and better cutting action due to improved chip evacuation - Excellent surface roughness VP1 chip breaker - Exclusive chip breaker for hard-to-cut materials such as titanium alloy, Inconel, stainless steel, etc. - Minimized cutting heat by reducing contact area between chips and rake surface with the use of high positive blade VP1 Sharp cutting edge - Excellent chip control - Low cutting resistance - High precision machining High positive angle of rake surface - Chip breaking at low depth of cut - Stable chip control at high depth of cut - Wide cutting area available with the use of optimized chip breaker width according to depth of cuts Turning 183 B Auto Tools (ISO type)
