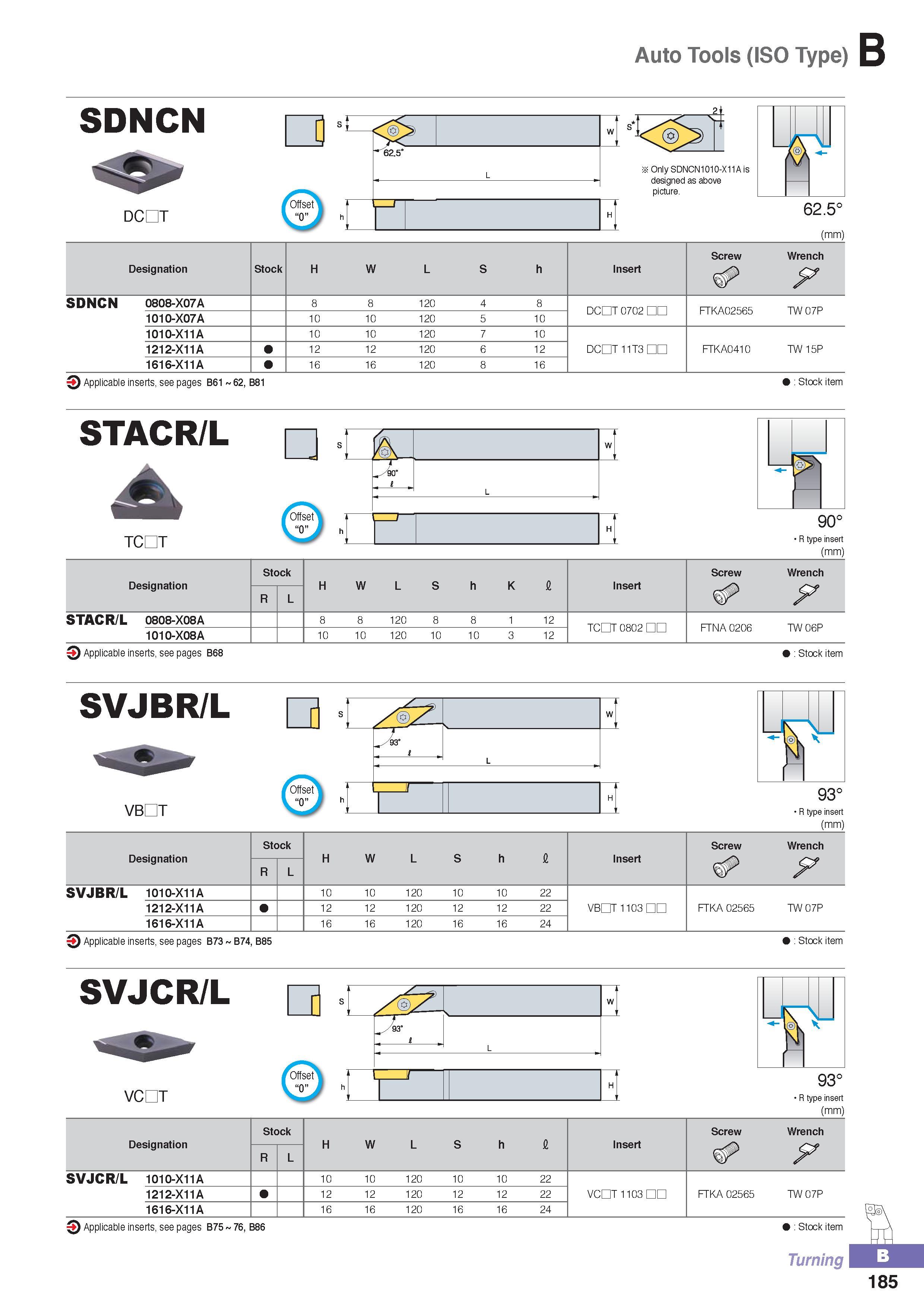

Auto Tools (ISO Type) B SDNCN 0 DCDT Offset 62.5° (mm) Designation Stock H W L S h Insert Screw Wrench SDNCN 0808-X07A 8 8 120 4 8 DCDT 0702 FTKA02565 TW 07P 1010-X07A 10 10 120 5 10 1010-X11A 10 10 120 7 10 1212-X11A 12 12 120 6 12 DCDT 11T3 FTKA041C TW 15P 1616-X11A 16 16 120 8 16 3 Applicable inserts, see pages B61 62, B81 Stock item STACR/L A TCDT (ik. a W -V-l L 90° R type insert (mm) Designation Stock H W L S h K Insert Screw Wrench R L STACR/L 0808-X08A 8 8 120 8 8 12 TCDT 0802 FTNA 0206 TW 06P 1010-X08A 10 10 120 10 10 3 12 Applicable inserts, see pages B68 Stock item SVJBR/L VET R type insert (mm) Designation Stock H W L S h Insert Screw Wrench F R L SVJBR/L 1010-X11A 10 10 120 10 10 22 1212-X11A 12 12 120 12 12 22 VBQT 1103 FTKA 02565 TW 07P 1616-X11A 16 16 120 16 16 24 Applicable inserts, see pages B73 B74, B85 Stock item SVJCR/L VCDT Offset R type insert (mm) Designation Stock H W L S h Insert Screw Wrench F R L SVJCR/L 1010-X11A 10 10 120 10 10 22 1212-X11A 12 12 120 12 12 22 VCDT 1103 FTKA 02565 TW 07P 1616-X11A 16 16 120 16 16 24 Applicable inserts, see pages B75 76, B86 Stock item Turning 185
