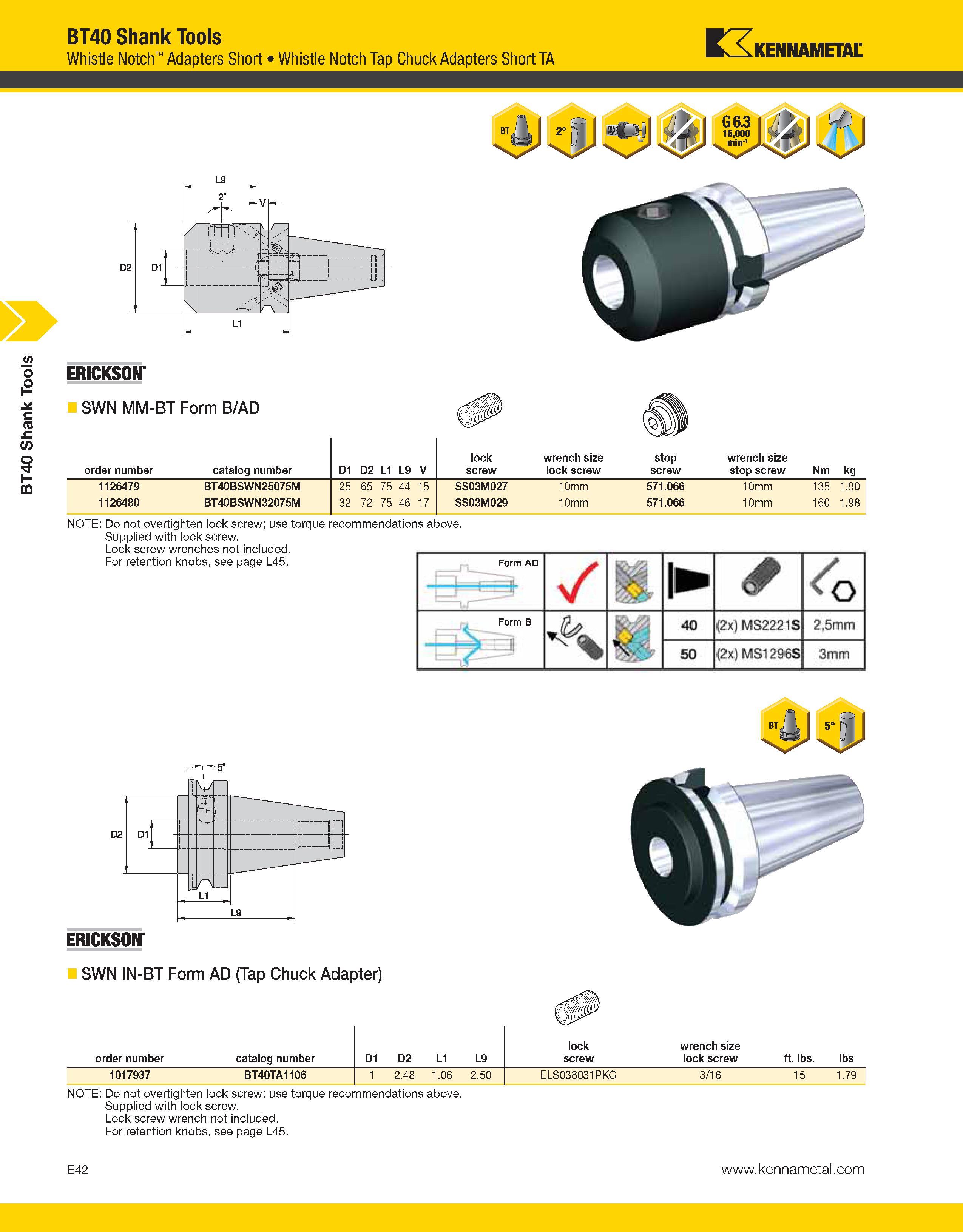

BT40 Shank Tools BT40 Shank Tools Whistle Notch Adapters Short Whistle Notch Tap Chuck Adapters Short TA Kennametal ERICKSON' SWN MM-BT Form B/AD lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw screw stop screw Nm kg 1126479 BT40BSWN25075M 25 65 75 44 15 SS03M027 10mm 571.066 10mm 135 1,90 1126480 BT40BSWN32075M 32 72 75 46 17 SS03M029 10mm 571.066 10mm 160 1,98 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrenches not included. For retention knobs, see page L45. ERICKSON SWN IN-BT Form AD (Tap Chuck Adapter) order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw ft. lbs. lbs 1017937 BT40TA1106 1 2.48 1.06 2.50 ELS038031PKG 3/16 15 1.79 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page L45. E42
