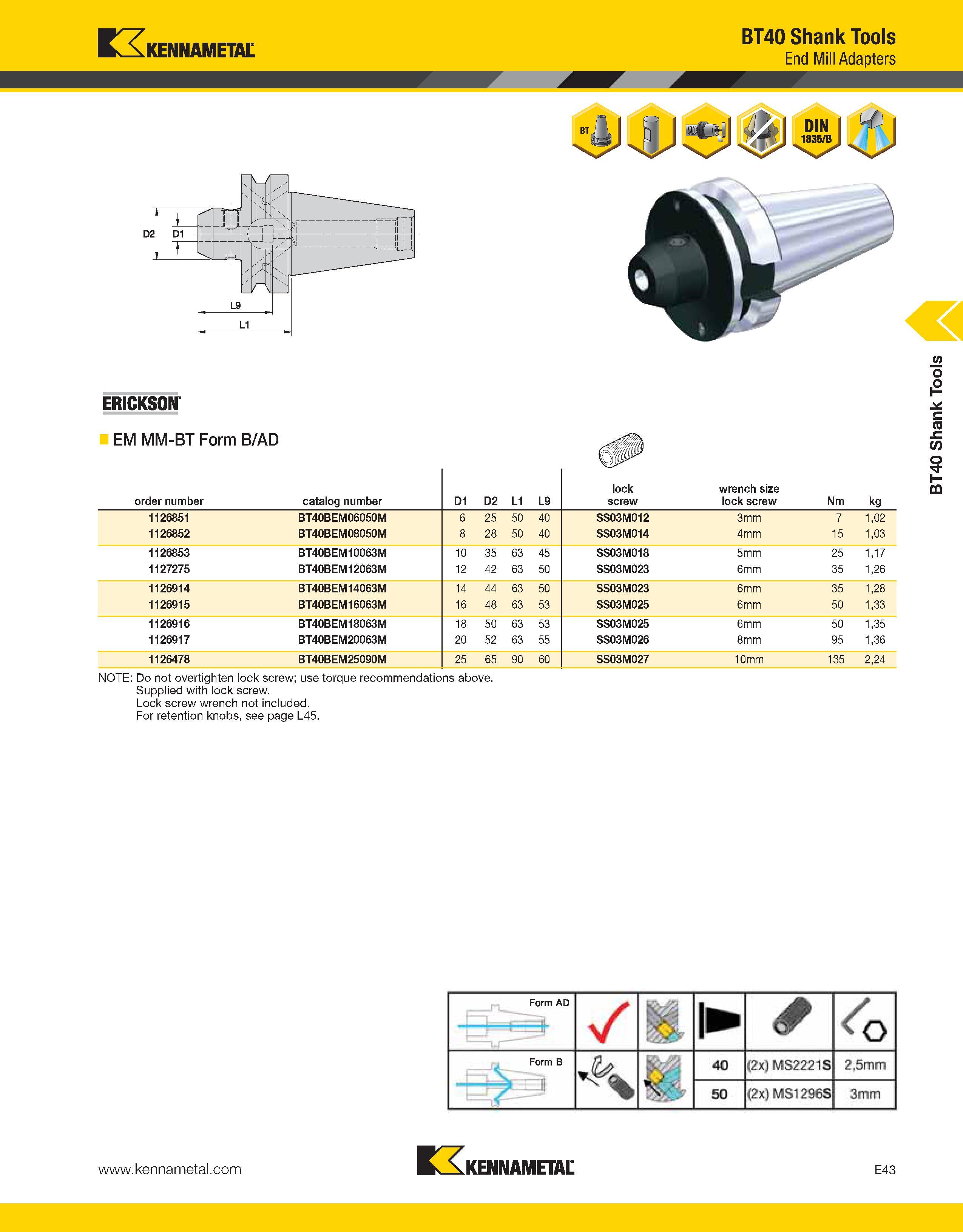

Kennametal BT40 Shank Tools End Mill Adapters ERICKSON EM MM-BT Form B/AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw Nm kg 1126851 BT40BEM06050M 6 25 50 40 SS03M012 3mm 7 1,02 1126852 BT40BEM08050M 8 28 50 40 SS03M014 4mm 15 1,03 1126853 BT40BEM10063M 10 35 63 45 SS03M018 5mm 25 1,17 1127275 BT40BEM12063M 12 42 63 50 SS03M023 6mm 35 1,26 1126914 BT40BEM14063M 14 44 63 50 SS03M023 6mm 35 1,28 1126915 BT40BEM16063M 16 48 63 53 SS03M025 6mm 50 1,33 1126916 BT40BEM18063M 18 50 63 53 SS03M025 6mm 50 1,35 1126917 BT40BEM20063M 20 52 63 55 SS03M026 8mm 95 1,36 1126478 BT40BEM25090M 25 65 90 60 SS03M027 10mm 135 2,24 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page L45. Form AD \y 'v‘> V Form B i j 40 (2x) MS2221S 2,5mm SO (2x) MS15&6S 3mm Kennametal E43 BT40 Shank Tools
