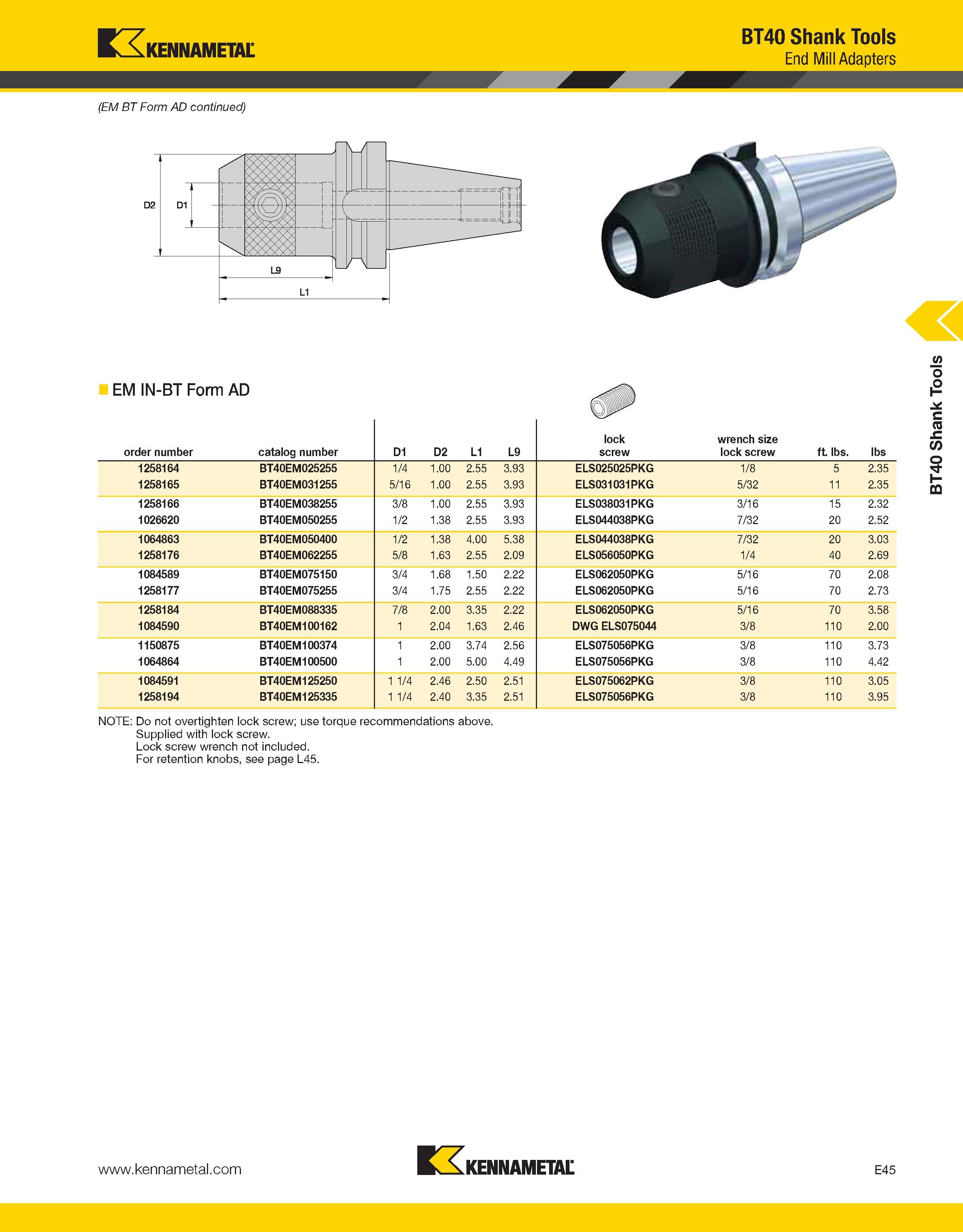

Kennametal (EM BT Form AD continued) BT40 Shank Tools End Mill Adapters EM IN-BT Form AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw ft. lbs. lbs 1258164 BT40EM025255 1/4 1.00 2.55 3.93 ELS025025PKG 1/8 5 2.35 1258165 BT40EM031255 5/16 1.00 2.55 3.93 ELS031031PKG 5/32 11 2.35 1258166 BT40EM038255 3/8 1.00 2.55 3.93 ELS038031PKG 3/16 15 2.32 1026620 BT40EM050255 1/2 1.38 2.55 3.93 ELS044038PKG 7/32 20 2.52 1064863 BT40EM050400 1/2 1.38 4.00 5.38 ELS044038PKG 7/32 20 3.03 1258176 BT40EM062255 5/8 1.63 2.55 2.09 ELS056050PKG 1/4 40 2.69 1084589 BT40EM075150 3/4 1.68 1.50 2.22 ELS062050PKG 5/16 70 2.08 1258177 BT40EM075255 3/4 1.75 2.55 2.22 ELS062050PKG 5/16 70 2.73 1258184 BT40EM088335 7/8 2.00 3.35 2.22 ELS062050PKG 5/16 70 3.58 1084590 BT40EM100162 1 2.04 1.63 2.46 DWG ELS075044 3/8 110 2.00 1150875 BT40EM100374 1 2.00 3.74 2.56 ELS075056PKG 3/8 110 3.73 1064864 BT40EM100500 1 2.00 5.00 4.49 ELS075056PKG 3/8 110 4.42 1084591 BT40EM125250 1 1/4 2.46 2.50 2.51 ELS075062PKG 3/8 110 3.05 1258194 BT40EM125335 1 1/4 2.40 3.35 2.51 ELS075056PKG 3/8 110 3.95 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page L45. Kennametal E45 BT40 Shank Tools
