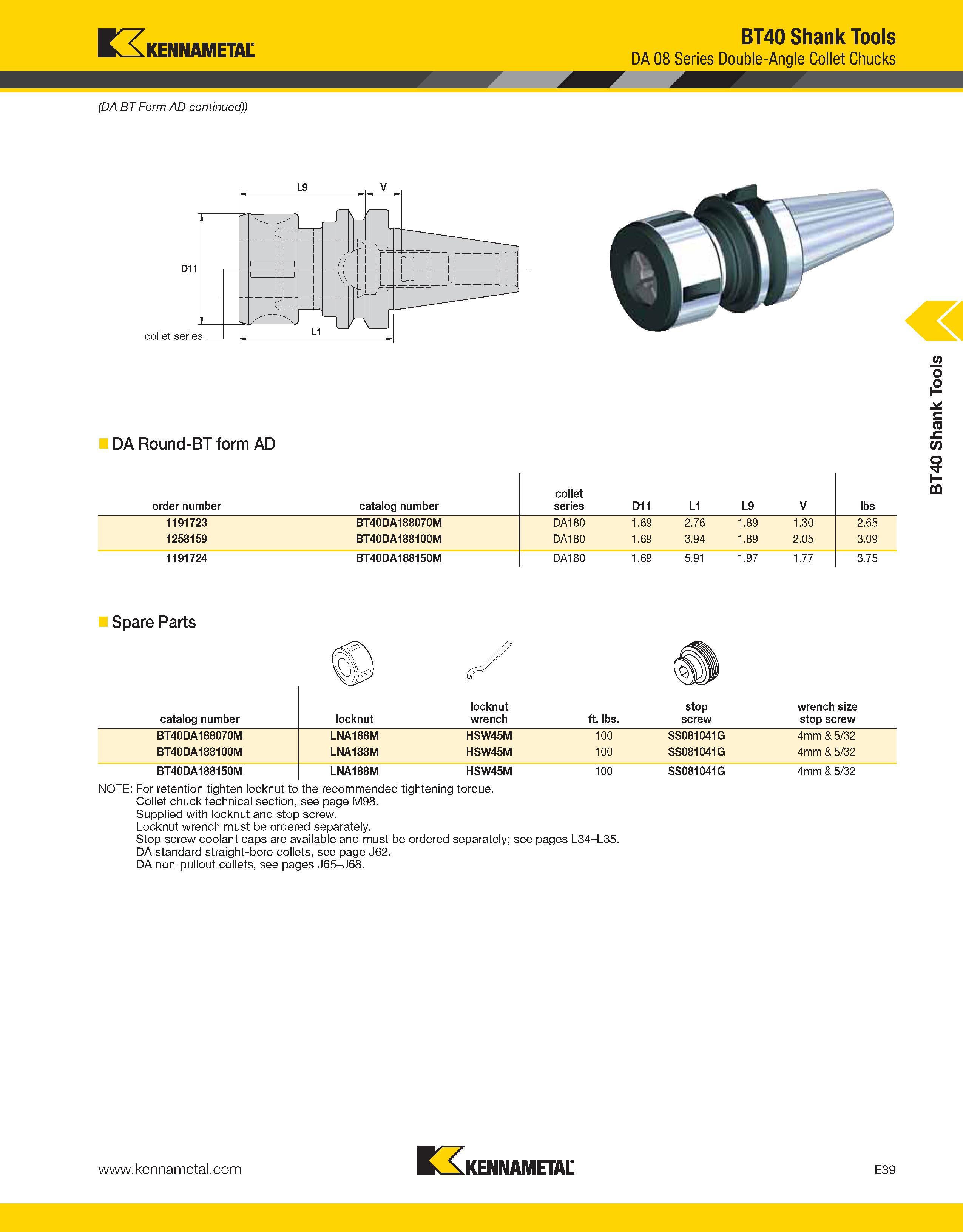

Kennametal BT40 Shank Tools DA 08 Series Double-Angle Collet Chucks (DA BT Form AD continued)) DA Round-BT form AD order number catalog number collet series D11 L1 L9 V lbs 1191723 BT40DA188070M DA180 1.69 2.76 1.89 1.30 2.65 1258159 BT40DA188100M DA180 1.69 3.94 1.89 2.05 3.09 1191724 BT40DA188150M DA180 1.69 5.91 1.97 1.77 3.75 Spare Parts catalog number locknut locknut wrench ft. lbs. stop screw wrench size stop screw BT40DA188070M LNA188M HSW45M 100 SS081041G 4mm & 5/32 BT40DA188100M LNA188M HSW45M 100 SS081041G 4mm & 5/32 BT40DA188150M NOTE: For retention tighten locknut to LNA188M HSW45M the recommended tightening torque. 100 SS081041G 4mm & 5/32 Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. DA standard straight-bore collets, see page J62. DA non-pullout collets, see pages J65-J68. Kennametal E39 BT40 Shank Tools
