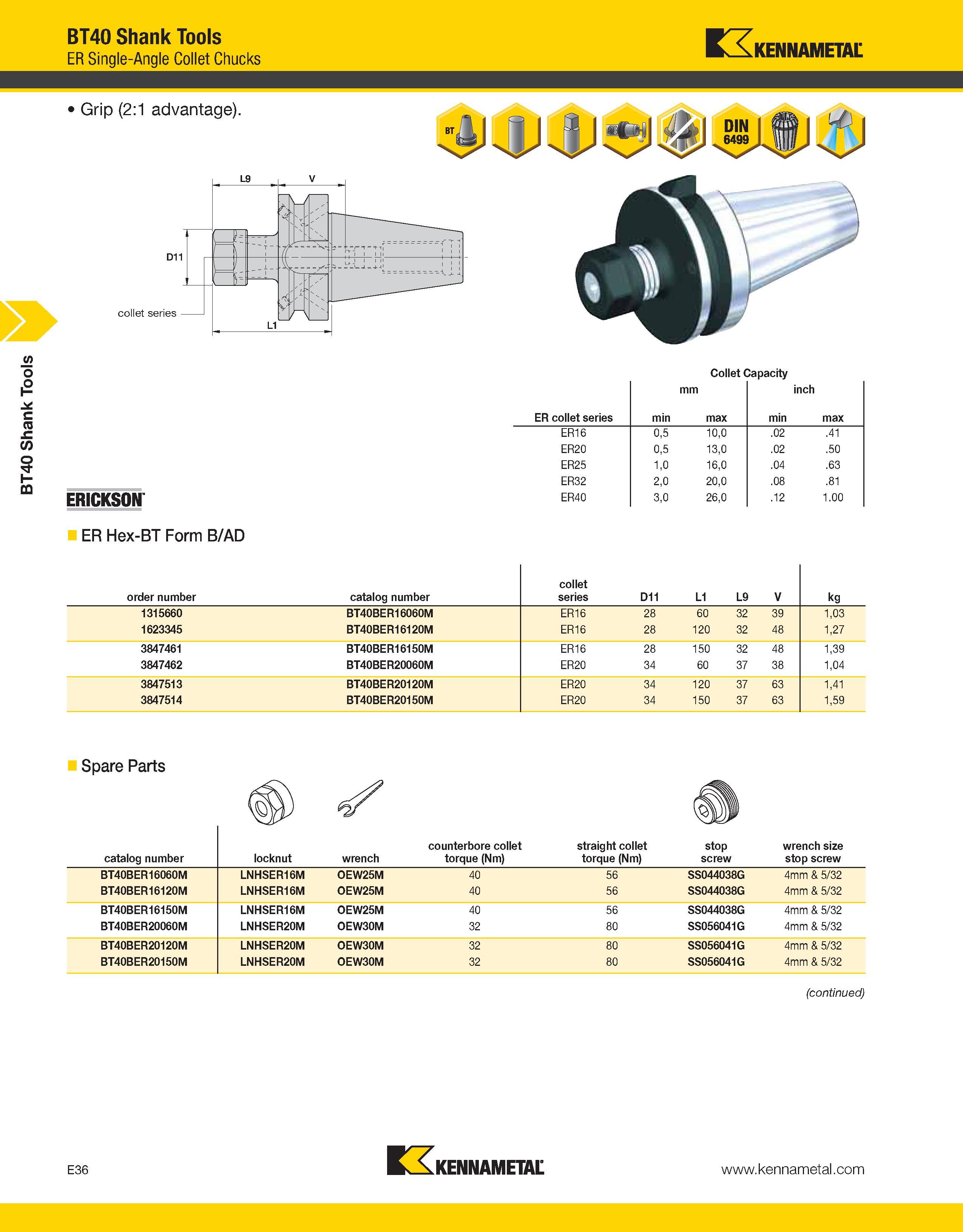

BT40 Shank Tools BT40 Shank Tools ER Single-Angle Collet Chucks Kennametal Grip (2:1 advantage). ERICKSON ER Hex-BT Form B/AD Collet Capacity ER collet series min mm max inch min max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 order number catalog number collet series D11 L1 L9 V kg 1315660 BT40BER16060M ER16 28 60 32 39 1,03 1623345 BT40BER16120M ER16 28 120 32 48 1,27 3847461 BT40BER16150M ER16 28 150 32 48 1,39 3847462 BT40BER20060M ER20 34 60 37 38 1,04 3847513 BT40BER20120M ER20 34 120 37 63 1,41 3847514 BT40BER20150M ER20 34 150 37 63 1,59 Spare Parts catalog number locknut wrench counterbore collet torque (Nm) straight collet torque (Nm) stop screw wrench size stop screw BT40BER16060M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 BT40BER16120M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 BT40BER16150M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 BT40BER20060M LNHSER20M OEW30M 32 80 SS056041G 4mm & 5/32 BT40BER20120M LNHSER20M 0EW30M 32 80 SS056041G 4mm & 5/32 BT40BER20150M LNHSER20M 0EW30M 32 80 SS056041G 4mm & 5/32 (continued) E36 n, KENNAMETAL
