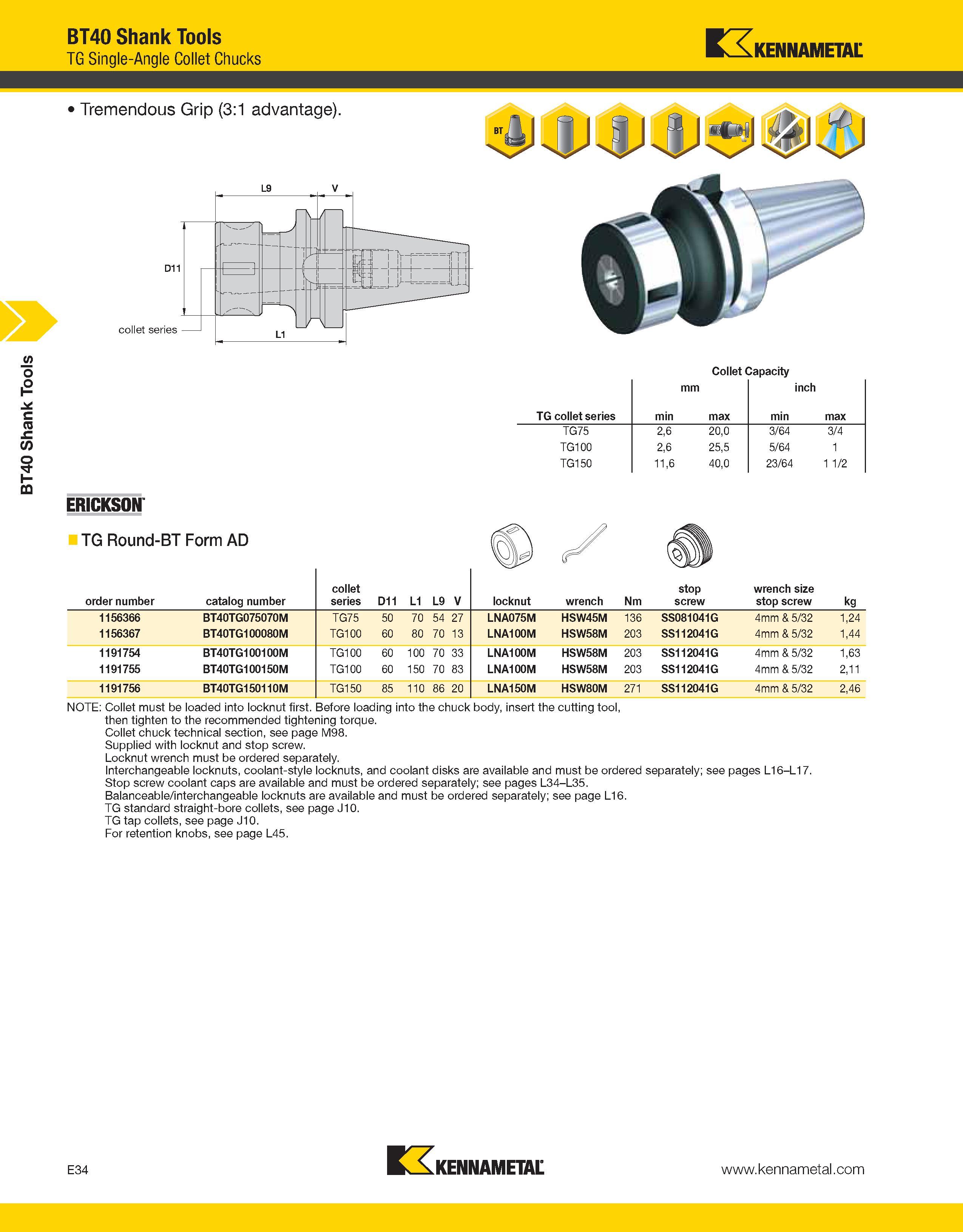

BT40 Shank Tools BT40 Shank Tools TG Single-Angle Collet Chucks Kennametal Collet Capacity TG collet series mm min max inch min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1 1/2 ERICKSON order number catalog number collet series D11 L1 L9 < locknut wrench Nm stop screw wrench size stop screw kg 1156366 BT40TG075070M TG75 50 70 54 27 LNA075M HSW45M 136 SS081041G 4mm & 5/32 1,24 1156367 BT40TG100080M TG100 60 80 70 13 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,44 1191754 BT40TG100100M TG100 60 100 70 33 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,63 1191755 BT40TG100150M TG100 60 150 70 83 LNA100M HSW58M 203 SS112041G 4mm & 5/32 2,11 1191756 BT40TG150110M TG150 85 110 86 20 LNA150M HSW80M 271 SS112041G 4mm & 5/32 2,46 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. For retention knobs, see page L45. E34 Kennametal
