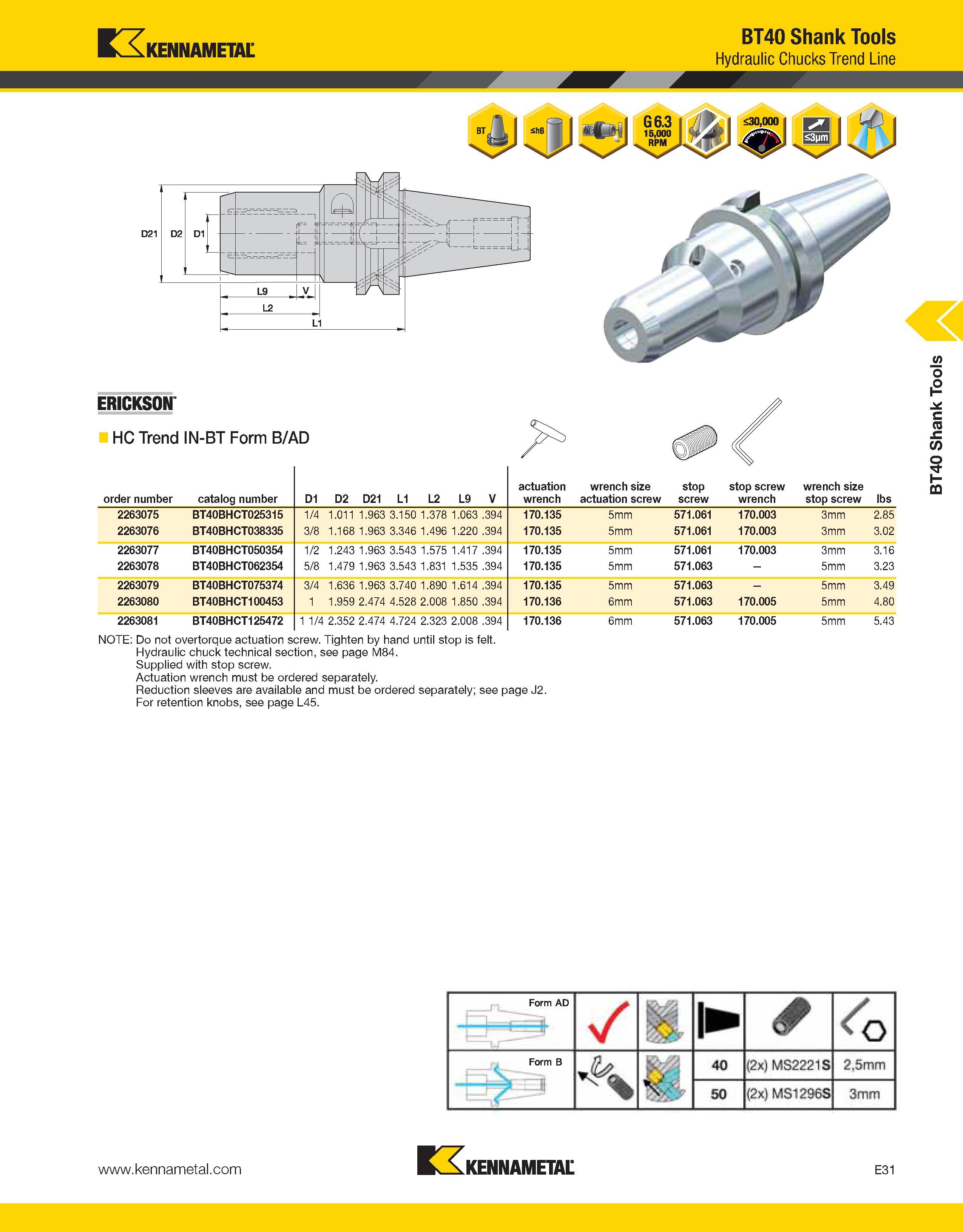

order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw stop screw wrench wrench size stop screw lbs 2263075 BT40BHCT025315 1/4 1.011 1.963 3.150 1.378 1.063 .394 170.135 5mm 571.061 170.003 3mm 2.85 2263076 BT40BHCT038335 3/8 1.168 1.963 3.346 1.496 1.220 .394 170.135 5mm 571.061 170.003 3mm 3.02 2263077 BT40BHCT050354 1/2 1.243 1.963 3.543 1.575 1.417 .394 170.135 5mm 571.061 170.003 3mm 3.16 2263078 BT40BHCT062354 5/8 1.479 1.963 3.543 1.831 1.535 .394 170.135 5mm 571.063 - 5mm 3.23 2263079 BT40BHCT075374 3/4 1.636 1.963 3.740 1.890 1.614 .394 170.135 5mm 571.063 - 5mm 3.49 2263080 BT40BHCT100453 1 1.959 2.474 4.528 2.008 1.850 .394 170.136 6mm 571.063 170.005 5mm 4.80 2263081 BT40BHCT125472 1 1/4 2.352 2.474 4.724 2.323 2.008 .394 170.136 6mm 571.063 170.005 5mm 5.43 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page M84. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page J2. For retention knobs, see page L45. Kennametal E31 BT40 Shank Tools
