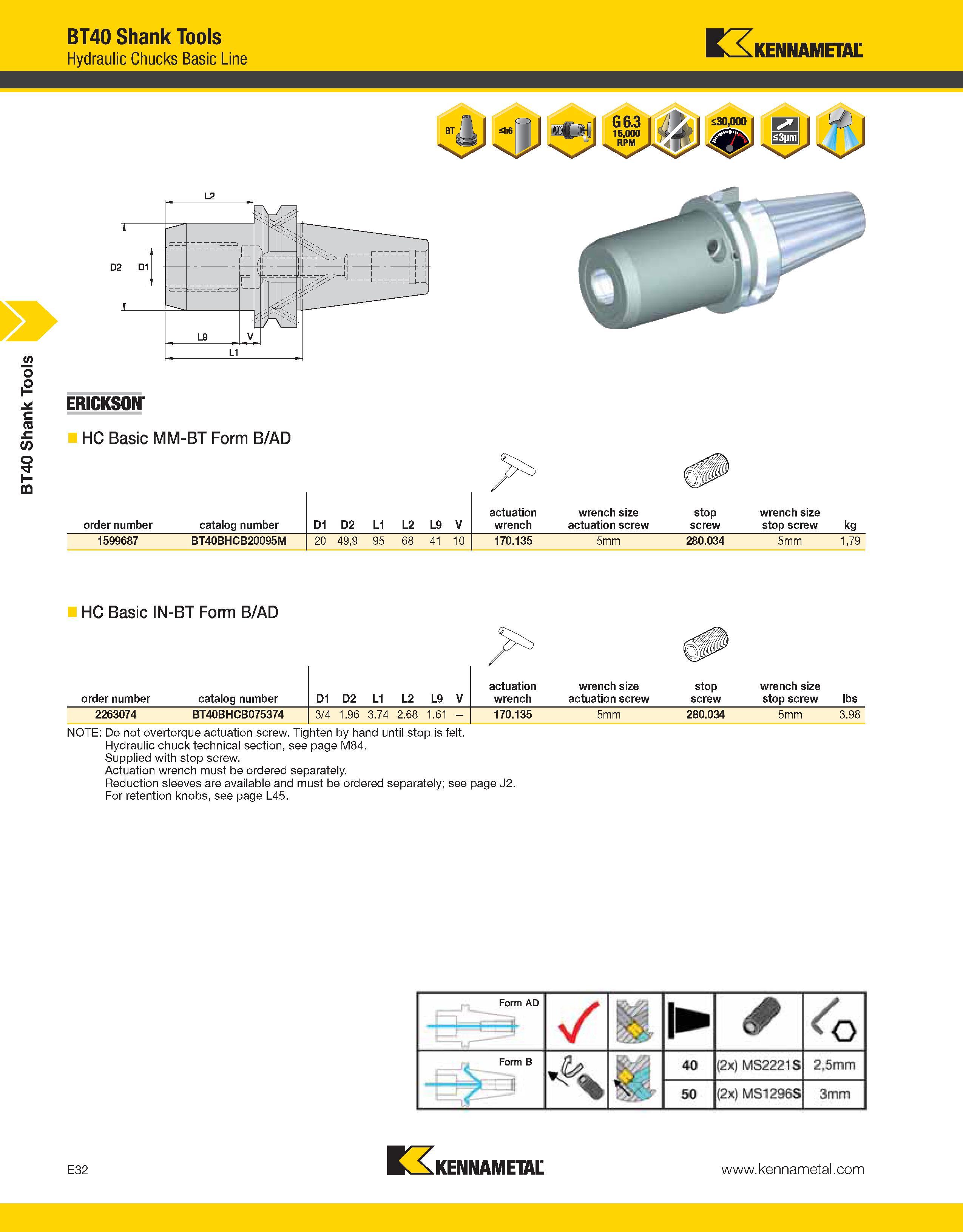

BT40 Shank Tools BT40 Shank Tools Hydraulic Chucks Basic Line Kennametal ERICKSON HC Basic MM-BT Form B/AD order number catalog number D1 D2 L1 L2 L9 < actuation wrench wrench size actuation screw stop screw wrench size stop screw kg 1599687 BT40BHCB20095M 20 49,9 95 68 41 10 170.135 5mm 280.034 5mm 1,79 HC Basic IN-BT Form B/AD order number catalog number D1 D2 L1 L2 L9 < actuation wrench wrench size actuation screw stop screw wrench size stop screw lbs 2263074 BT40BHCB075374 3/4 1.96 3.74 2.68 1.61 - 170.135 5mm 280.034 5mm 3.98 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page M84. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page J2. For retention knobs, see page L45. E32 Kennametal
