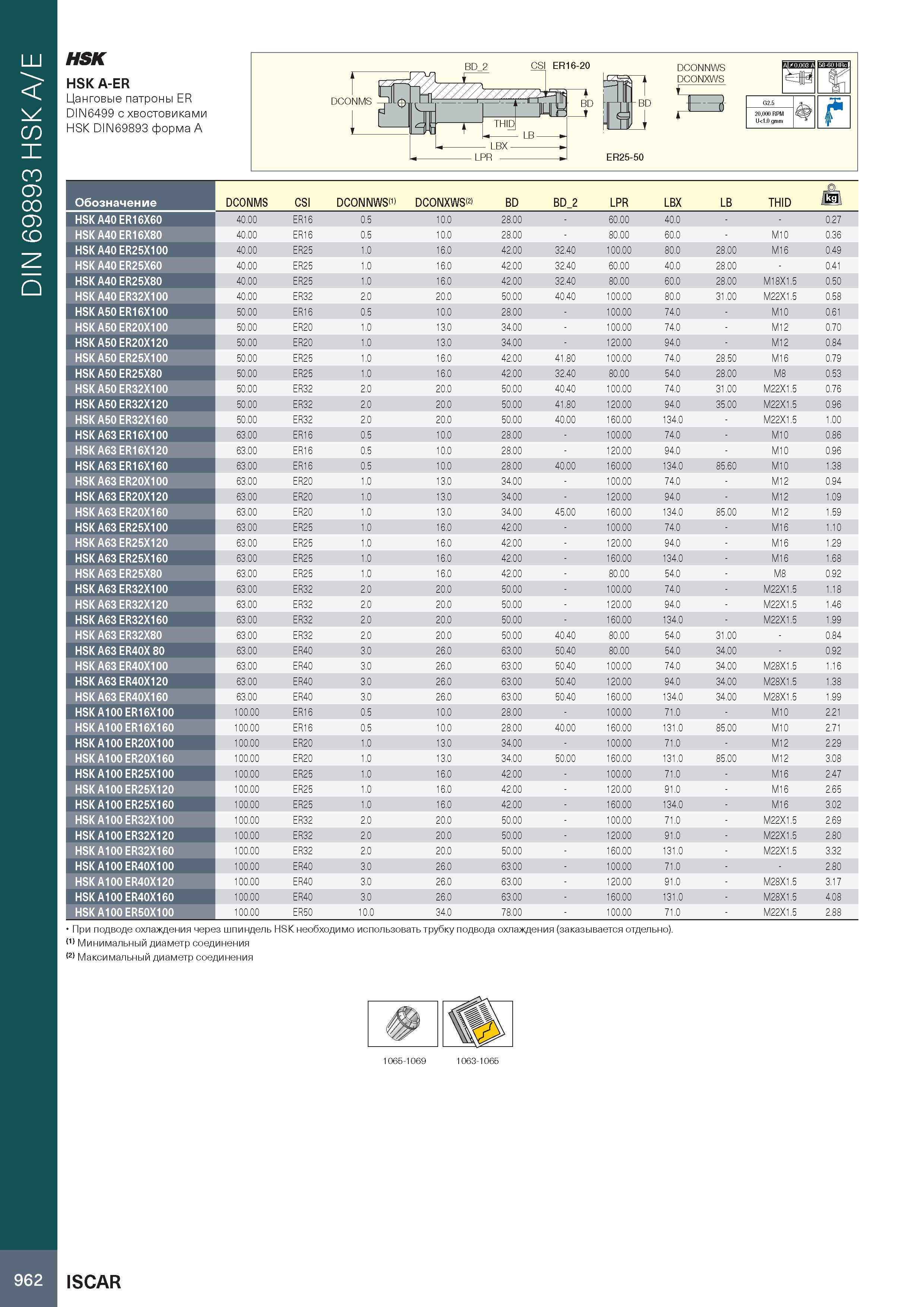

DIN 69893 HSK A/E HSK HSK A-ER Цанговые патроны ER DIN6499 с хвостовиками HSK DIN69893 форма A Обозначение DCONMS CSI DCONNWS(1) DCONXWS(2) BD BD 2 LPR LBX LB THID Ikgl HSK A40 ER16X60 40 00 ER16 0.5 10.0 28.00 60. 00 40.0 0.27 HSK A40 ER16X80 40 00 ER16 0.5 10.0 28.00 80. 00 60.0 M10 0.36 HSK A40 ER25X100 40 00 ER25 1.0 16.0 42.00 32.40 100.00 80.0 28.00 M16 0.49 HSK A40 ER25X60 40 00 ER25 1.0 16.0 42.00 32.40 60. 00 40.0 28.00 0.41 HSK A40 ER25X80 40 00 ER25 1.0 16.0 42.00 32.40 80. 00 60.0 28.00 M18X1.5 0.50 HSK A40 ER32X100 40 00 ER32 2.0 20.0 50.00 40.40 100 00 80.0 31.00 M22X1.5 0.58 HSK A50 ER16X100 50 00 ER16 0.5 10.0 28.00 100 00 74.0 M10 0.61 HSK A50 ER20X100 50 00 ER20 1.0 13.0 34.00 100 00 74.0 M12 0.70 HSK A50 ER20X120 50 00 ER20 1.0 13.0 34.00 120 00 94.0 M12 0.84 HSK A50 ER25X100 50 00 ER25 1.0 16.0 42.00 41.80 100 00 74.0 28.50 M16 0.79 HSK A50 ER25X80 50 00 ER25 1.0 16.0 42.00 32.40 80. 00 54.0 28.00 M8 0.53 HSK A50 ER32X100 50 00 ER32 2.0 20.0 50.00 40.40 100 00 74.0 31.00 M22X1.5 0.76 HSK A50 ER32X120 50 00 ER32 2.0 20.0 50.00 41.80 120 00 94.0 35.00 M22X1.5 0.96 HSK A50 ER32X160 50 00 ER32 2.0 20.0 50.00 40.00 160 00 134.0 M22X1.5 1.00 HSK A63 ER16X100 63 00 ER16 0.5 10.0 28.00 100 00 74.0 M10 0.86 HSK A63 ER16X120 63 00 ER16 0.5 10.0 28.00 120 00 94.0 M10 0.96 HSK A63 ER16X160 63 00 ER16 0.5 10.0 28.00 40.00 160 00 134.0 85.60 M10 1.38 HSK A63 ER20X100 63 00 ER20 1.0 13.0 34.00 100 00 74.0 M12 0.94 HSK A63 ER20X120 63 00 ER20 1.0 13.0 34.00 120 00 94.0 M12 1.09 HSK A63 ER20X160 63 00 ER20 1.0 13.0 34.00 45.00 160 00 134.0 85.00 M12 1.59 HSK A63 ER25X100 63 00 ER25 1.0 16.0 42.00 100 00 74.0 M16 1.10 HSK A63 ER25X120 63 00 ER25 1.0 16.0 42.00 120 00 94.0 M16 1.29 HSK A63 ER25X160 63 00 ER25 1.0 16.0 42.00 160 00 134.0 M16 1.68 HSK A63 ER25X80 63 00 ER25 1.0 16.0 42.00 80. 00 54.0 M8 0.92 HSK A63 ER32X100 63 00 ER32 2.0 20.0 50.00 100 00 74.0 M22X1.5 1.18 HSK A63 ER32X120 63 00 ER32 2.0 20.0 50.00 120 00 94.0 M22X1.5 1.46 HSK A63 ER32X160 63 00 ER32 2.0 20.0 50.00 160 00 134.0 M22X1.5 1.99 HSK A63 ER32X80 63 00 ER32 2.0 20.0 50.00 40.40 80. 00 54.0 31.00 0.84 HSK A63 ER40X 80 63 00 ER40 3.0 26.0 63.00 50.40 80. 00 54.0 34.00 0.92 HSK A63 ER40X100 63 00 ER40 3.0 26.0 63.00 50.40 100 00 74.0 34.00 M28X1.5 1.16 HSK A63 ER40X120 63 00 ER40 3.0 26.0 63.00 50.40 120 00 94.0 34.00 M28X1.5 1.38 HSK A63 ER40X160 63 00 ER40 3.0 26.0 63.00 50.40 160 00 134.0 34.00 M28X1.5 1.99 HSK A100 ER16X100 100 00 ER16 0.5 10.0 28.00 100 00 71.0 M10 2.21 HSK A100 ER16X160 100 00 ER16 0.5 10.0 28.00 40.00 160 00 131.0 85.00 M10 2.71 HSK A100 ER20X100 100 00 ER20 1.0 13.0 34.00 100 00 71.0 M12 2.29 HSK A100 ER20X160 100 .00 ER20 1.0 13.0 34.00 50.00 160 00 131.0 85.00 M12 3.08 HSK A100 ER25X100 100 .00 ER25 1.0 16.0 42.00 100 00 71.0 M16 2.47 HSK A100 ER25X120 100 .00 ER25 1.0 16.0 42.00 120 00 91.0 M16 2.65 HSK A100 ER25X160 100 .00 ER25 1.0 16.0 42.00 160 00 134.0 M16 3.02 HSK A100 ER32X100 100 .00 ER32 2.0 20.0 50.00 100 00 71.0 M22X1.5 2.69 HSK A100 ER32X120 100 .00 ER32 2.0 20.0 50.00 120 00 91.0 M22X1.5 2.80 HSK A100 ER32X160 100 .00 ER32 2.0 20.0 50.00 160 00 131.0 M22X1.5 3.32 HSK A100 ER40X100 100 .00 ER40 3.0 26.0 63.00 100 00 71.0 2.80 HSK A100 ER40X120 100 .00 ER40 3.0 26.0 63.00 120 00 91.0 M28X1.5 3.17 HSK A100 ER40X160 100 .00 ER40 3.0 26.0 63.00 160 00 131.0 M28X1.5 4.08 HSK A100 ER50X100 100 .00 ER50 10.0 34.0 78.00 100 00 71.0 M22X1.5 2.88 При подводе охлаждения через шпиндель HSK необходимо использовать трубку подвода охлаждения (заказывается отдельно). (1) Минимальный диаметр соединения (2) Максимальный диаметр соединения 1065-1069 1063-1065 962 ISCAR
