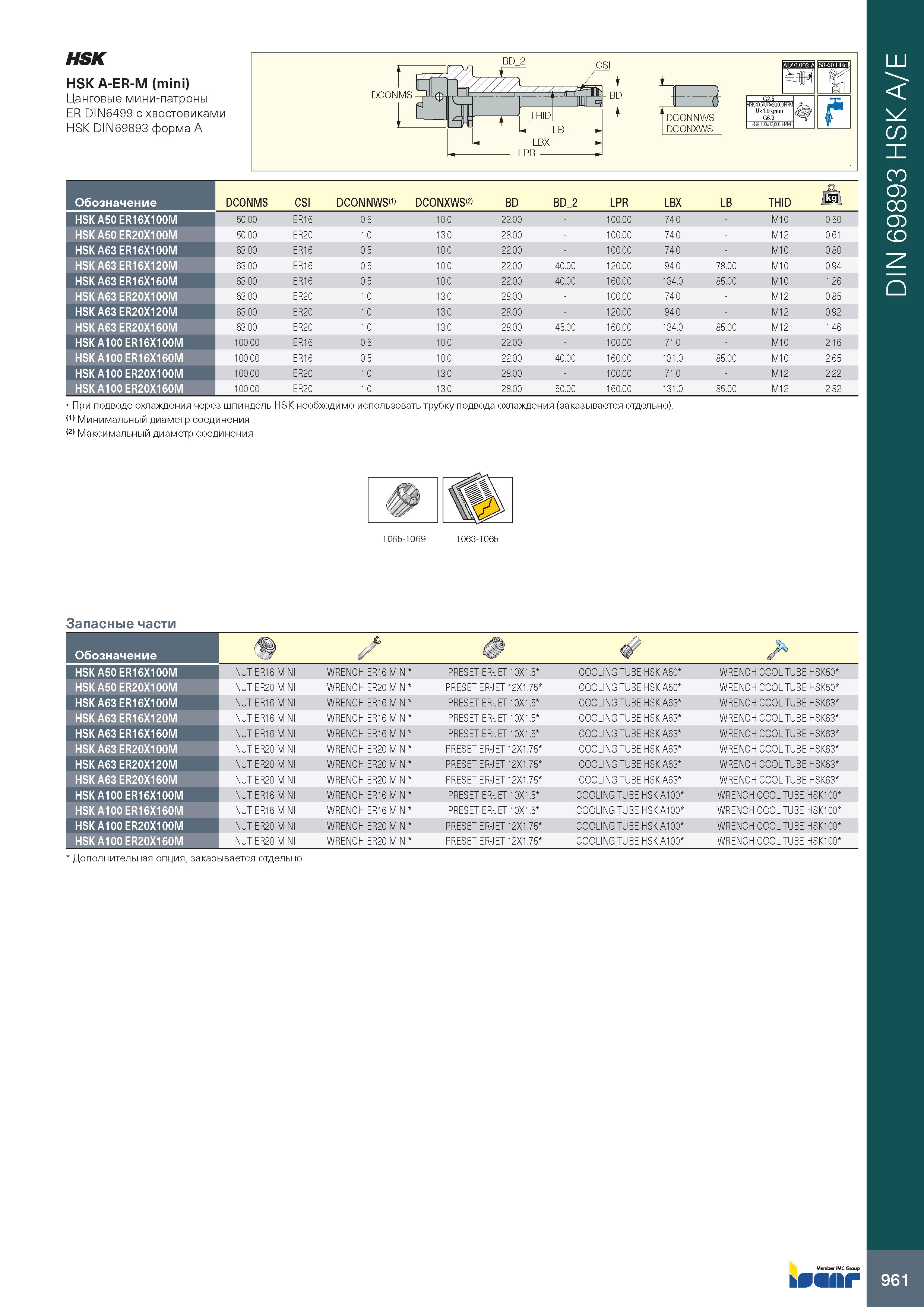

HSK HSK A-ER-M (mini) Цанговые мини-патроны ER DIN6499 с хвостовиками HSK DIN69893 форма A Обозначение DCONMS CSI DCONNWS(1) DCONXWS(2) BD BD 2 LPR LBX LB THID Ikgl HSK A50 ER16X100M 50.00 ER16 0.5 10.0 22.00 100 00 74.0 M10 0.50 HSK A50 ER20X100M 50.00 ER20 1.0 13.0 28.00 100 00 74.0 M12 0.61 HSK A63 ER16X100M 63.00 ER16 0.5 10.0 22.00 100 00 74.0 M10 0.80 HSK A63 ER16X120M 63.00 ER16 0.5 10.0 22.00 40.00 120 00 94.0 78.00 M10 0.94 HSK A63 ER16X160M 63.00 ER16 0.5 10.0 22.00 40.00 160 00 134.0 85.00 M10 1.26 HSK A63 ER20X100M 63.00 ER20 1.0 13.0 28.00 100 00 74.0 M12 0.85 HSK A63 ER20X120M 63.00 ER20 1.0 13.0 28.00 120 00 94.0 M12 0.92 HSK A63 ER20X160M 63.00 ER20 1.0 13.0 28.00 45.00 160 00 134.0 85.00 M12 1.46 HSK A100 ER16X100M 100.00 ER16 0.5 10.0 22.00 100 00 71.0 M10 2.16 HSK A100 ER16X160M 100.00 ER16 0.5 10.0 22.00 40.00 160 00 131.0 85.00 M10 2.65 HSK A100 ER20X100M 100.00 ER20 1.0 13.0 28.00 100 00 71.0 M12 2.22 HSK A100 ER20X160M 100.00 ER20 1.0 13.0 28.00 50.00 160 00 131.0 85.00 M12 2.82 При подводе охлаждения через шпиндель HSK необходимо использовать трубку подвода охлаждения (заказывается отдельно). (1) Минимальный диаметр соединения (2) Максимальный диаметр соединения 1065-1069 1063-1065 Запасные части Обозначение Ф’ HSK A50 ER16X100M NUT ER16 MIN WRENCH ER16 MIN PRESET ER-JET 10X1.5 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A50 ER20X100M NUT ER20 MIN WRENCH ER20 MIN PRESET ER-JET 12X1.75 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A63 ER16X100M NUT ER16 MIN WRENCH ER16 MIN PRESET ER-JET 10X1.5 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 ER16X120M NUT ER16 MIN WRENCH ER16 MIN PRESET ER-JET 10X1.5 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 ER16X160M NUT ER16 MIN WRENCH ER16 MIN PRESET ER-JET 10X1.5 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 ER20X100M NUT ER20 MIN WRENCH ER20 MIN PRESET ER-JET 12X1.75 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 ER20X120M NUT ER20 MIN WRENCH ER20 MIN PRESET ER-JET 12X1.75 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 ER20X160M NUT ER20 MIN WRENCH ER20 MIN PRESET ER-JET 12X1.75 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A100 ER16X100M NUT ER16 MIN WRENCH ER16 MIN PRESET ER-JET 10X1.5 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100 ER16X160M NUT ER16 MIN WRENCH ER16 MIN PRESET ER-JET 10X1.5 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100 ER20X100M NUT ER20 MIN WRENCH ER20 MIN PRESET ER-JET 12X1.75 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100 ER20X160M NUT ER20 MIN WRENCH ER20 MIN PRESET ER-JET 12X1.75 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 Дополнительная опция, заказывается отдельно 961 DIN 69893 HSK A/E
