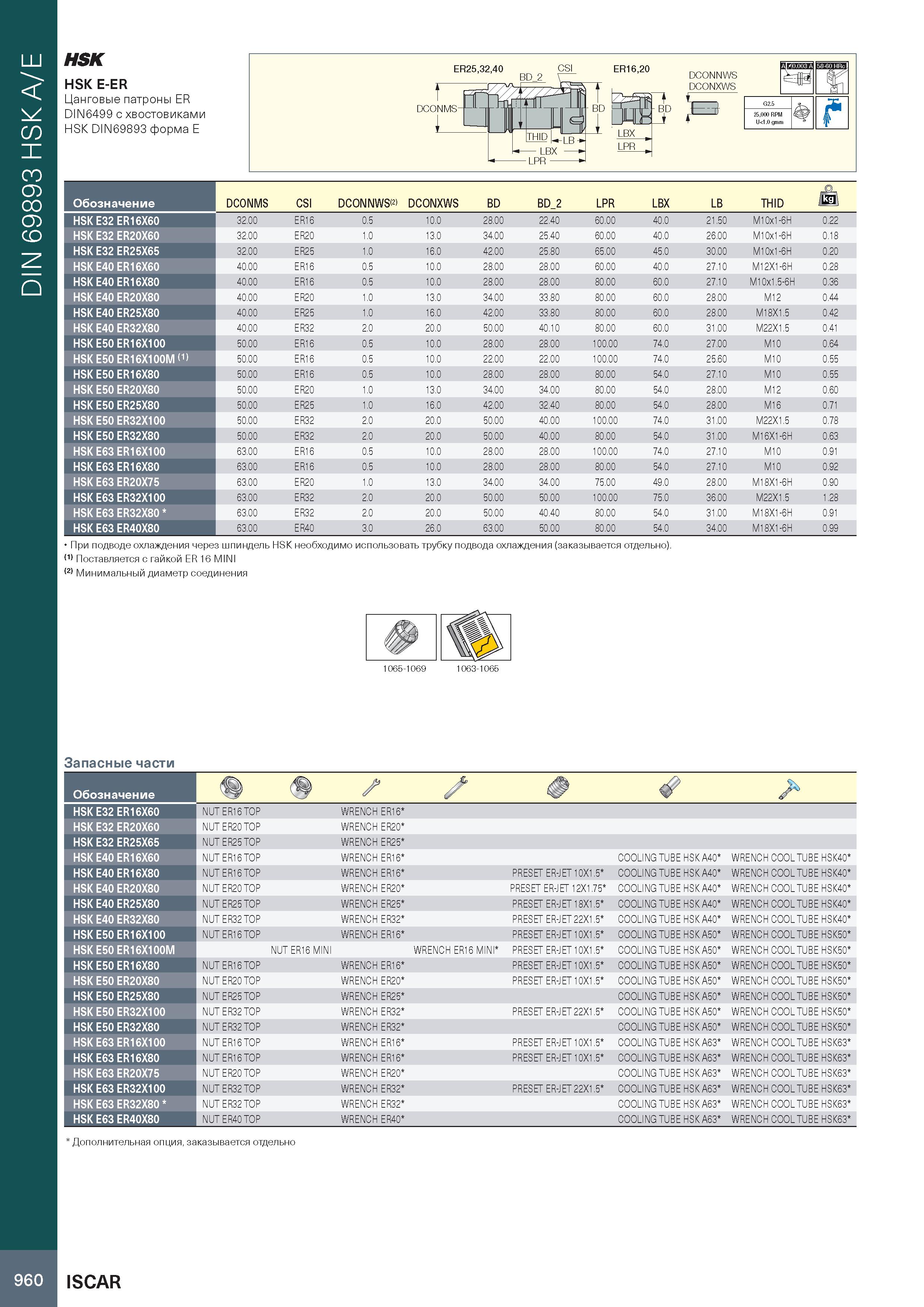

DIN 69893 HSK A/E HSK HSK E-ER Цанговые патроны ER DIN6499 с хвостовиками HSK DIN69893 форма E Обозначение DCONMS CSI DCONNWS 2> DCONXWS BD BD 2 LPR LBX LB THID Jkgi HSK E32 ER16X60 32.00 ER16 0.5 10.0 28.00 22.40 60.00 40.0 21.50 M10x1-6H 0.22 HSK E32 ER20X60 32.00 ER20 1.0 13.0 34.00 25.40 60.00 40.0 26.00 M10x1-6H 0.18 HSK E32 ER25X65 32.00 ER25 1.0 16.0 42.00 25.80 65.00 45.0 30.00 M10x1-6H 0.20 HSK E40 ER16X60 40.00 ER16 0.5 10.0 28.00 28.00 60.00 40.0 27.10 M12X1-6H 0.28 HSK E40 ER16X80 40.00 ER16 0.5 10.0 28.00 28.00 80.00 60.0 27.10 M10x1.5-6H 0.36 HSK E40 ER20X80 40.00 ER20 1.0 13.0 34.00 33.80 80.00 60.0 28.00 M12 0.44 HSK E40 ER25X80 40.00 ER25 1.0 16.0 42.00 33.80 80.00 60.0 28.00 M18X1.5 0.42 HSK E40 ER32X80 40.00 ER32 2.0 20.0 50.00 40.10 80.00 60.0 31.00 M22X1.5 0.41 HSK E50 ER16X100 50.00 ER16 0.5 10.0 28.00 28.00 100.00 74.0 27.00 M10 0.64 HSK E50 ER16X100M (1) 50.00 ER16 0.5 10.0 22.00 22.00 100.00 74.0 25.60 M10 0.55 HSK E50 ER16X80 50.00 ER16 0.5 10.0 28.00 28.00 80.00 54.0 27.10 M10 0.55 HSK E50 ER20X80 50.00 ER20 1.0 13.0 34.00 34.00 80.00 54.0 28.00 M12 0.60 HSK E50 ER25X80 50.00 ER25 1.0 16.0 42.00 32.40 80.00 54.0 28.00 M16 0.71 HSK E50 ER32X100 50.00 ER32 2.0 20.0 50.00 40.00 100.00 74.0 31.00 M22X1.5 0.78 HSK E50 ER32X80 50.00 ER32 2.0 20.0 50.00 40.00 80.00 54.0 31.00 M16X1-6H 0.63 HSK E63 ER16X100 63.00 ER16 0.5 10.0 28.00 28.00 100.00 74.0 27.10 M10 0.91 HSK E63 ER16X80 63.00 ER16 0.5 10.0 28.00 28.00 80.00 54.0 27.10 M10 0.92 HSK E63 ER20X75 63.00 ER20 1.0 13.0 34.00 34.00 75.00 49.0 28.00 M18X1-6H 0.90 HSK E63 ER32X100 63.00 ER32 2.0 20.0 50.00 50.00 100.00 75.0 36.00 M22X1.5 1.28 HSK E63 ER32X80 63.00 ER32 2.0 20.0 50.00 40.40 80.00 54.0 31.00 M18X1-6H 0.91 HSK E63 ER40X80 63.00 ER40 3.0 26.0 63.00 50.00 80.00 54.0 34.00 M18X1-6H 0.99 При подводе охлаждения через шпиндель HSK необходимо использовать трубку подвода охлаждения (заказывается отдельно). (1) Поставляется с гайкой ER 16 MINI (2) Минимальный диаметр соединения 1065-1069 1063-1065 Запасные части Обозначение и /' HSK E32 ER16X60 NUT ER16 TOP WRENCH ER16 HSK E32 ER20X60 NUT ER20 TOP WRENCH ER20 HSK E32 ER25X65 NUT ER25 TOP WRENCH ER25 HSK E40 ER16X60 NUT ER16 TOP WRENCH ER16 COOLING TUBE HSK A40 WRENCH COOL TUBE HSK40 HSK E40 ER16X80 NUT ER16 TOP WRENCH ER16 PRESET ER-JET 10X1.5 COOLING TUBE HSK A40 WRENCH COOL TUBE HSK40 HSK E40 ER20X80 NUT ER20 TOP WRENCH ER20 PRESET ER-JET 12X1.75 COOLING TUBE HSK A40 WRENCH COOL TUBE HSK40 HSK E40 ER25X80 NUT ER25 TOP WRENCH ER25 PRESET ER-JET 18X1.5 COOLING TUBE HSK A40 WRENCH COOL TUBE HSK40 HSK E40 ER32X80 NUT ER32 TOP WRENCH ER32 PRESET ER-JET 22X1.5 COOLING TUBE HSK A40 WRENCH COOL TUBE HSK40 HSK E50 ER16X100 NUT ER16 TOP WRENCH ER16 PRESET ER-JET 10X1.5 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK E50 ER16X100M NUT ER16 MINI WRENCH ER16 MINI PRESET ER-JET 10X1.5 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK E50 ER16X80 NUT ER16 TOP WRENCH ER16 PRESET ER-JET 10X1.5 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK E50 ER20X80 NUT ER20 TOP WRENCH ER20 PRESET ER-JET 10X1.5 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK E50 ER25X80 NUT ER25 TOP WRENCH ER25 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK E50 ER32X100 NUT ER32 TOP WRENCH ER32 PRESET ER-JET 22X1.5 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK E50 ER32X80 NUT ER32 TOP WRENCH ER32 COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK E63 ER16X100 NUT ER16 TOP WRENCH ER16 PRESET ER-JET 10X1.5 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK E63 ER16X80 NUT ER16 TOP WRENCH ER16 PRESET ER-JET 10X1.5 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK E63 ER20X75 NUT ER20 TOP WRENCH ER20 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK E63 ER32X100 NUT ER32 TOP WRENCH ER32 PRESET ER-JET 22X1.5 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK E63 ER32X80 NUT ER32 TOP WRENCH ER32 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK E63 ER40X80 NUT ER40 TOP WRENCH ER40 COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 Дополнительная опция, заказывается отдельно 960 ISCAR
