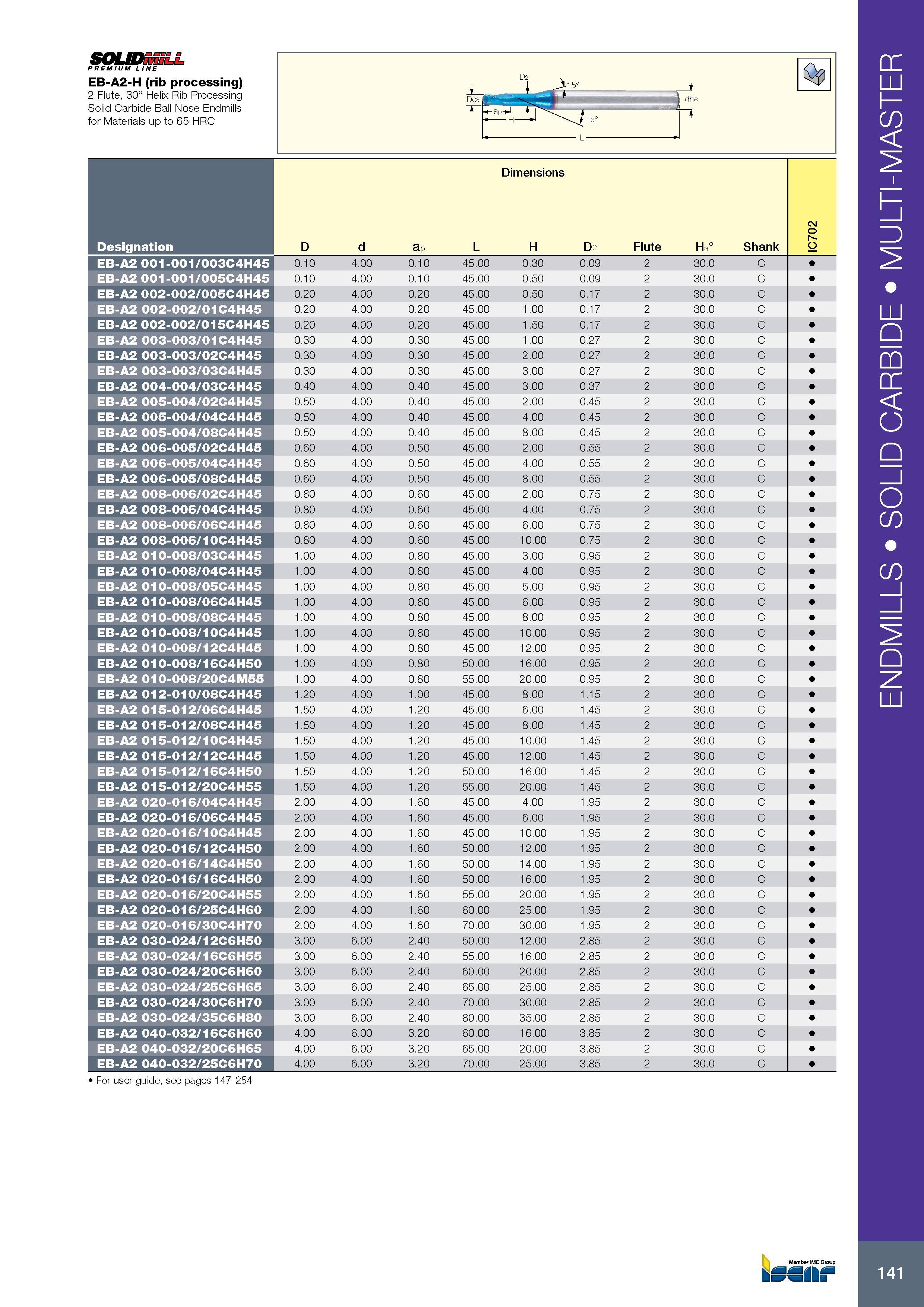

Твердосплавные цельные концевые фрезы Iscar Обозначение Режимы резания Подача на зуб Эскиз фрезерного инструмента с основными размерами PREMIUM LINE EB-A2-H (rib processing) 2 Flute, 30° Helix Rib Processing Solid Carbide Ball Nose Endmills for Materials up to 65 HRC Обозначение Designation D d ap L H D2 Flute Ha° Shank IN 0 7 IC EB-A2 001-001/003C4H45 0.10 4.00 0.10 45.00 0.30 0.09 2 30.0 C EB-A2 001-001/005C4H45 0.10 4.00 0.10 45.00 0.50 0.09 2 30.0 C EB-A2 002-002/005C4H45 0.20 4.00 0.20 45.00 0.50 0.17 2 30.0 C EB-A2 002-002/01C4H45 0.20 4.00 0.20 45.00 1.00 0.17 2 30.0 C EB-A2 002-002/015C4H45 0.20 4.00 0.20 45.00 1.50 0.17 2 30.0 C EB-A2 003-003/01C4H45 0.30 4.00 0.30 45.00 1.00 0.27 2 30.0 C EB-A2 003-003/02C4H45 0.30 4.00 0.30 45.00 2.00 0.27 2 30.0 C EB-A2 003-003/03C4H45 0.30 4.00 0.30 45.00 3.00 0.27 2 30.0 C EB-A2 004-004/03C4H45 0.40 4.00 0.40 45.00 3.00 0.37 2 30.0 C EB-A2 005-004/02C4H45 0.50 4.00 0.40 45.00 2.00 0.45 2 30.0 C EB-A2 005-004/04C4H45 0.50 4.00 0.40 45.00 4.00 0.45 2 30.0 C EB-A2 005-004/08C4H45 0.50 4.00 0.40 45.00 8.00 0.45 2 30.0 C EB-A2 006-005/02C4H45 0.60 4.00 0.50 45.00 2.00 0.55 2 30.0 C EB-A2 006-005/04C4H45 0.60 4.00 0.50 45.00 4.00 0.55 2 30.0 C EB-A2 006-005/08C4H45 0.60 4.00 0.50 45.00 8.00 0.55 2 30.0 C EB-A2 008-006/02C4H45 0.80 4.00 0.60 45.00 2.00 0.75 2 30.0 C EB-A2 008-006/04C4H45 0.80 4.00 0.60 45.00 4.00 0.75 2 30.0 C EB-A2 008-006/06C4H45 0.80 4.00 0.60 45.00 6.00 0.75 2 30.0 C EB-A2 008-006/10C4H45 0.80 4.00 0.60 45.00 10.00 0.75 2 30.0 C EB-A2 010-008/03C4H45 1.00 4.00 0.80 45.00 3.00 0.95 2 30.0 C EB-A2 010-008/04C4H45 1.00 4.00 0.80 45.00 4.00 0.95 2 30.0 C EB-A2 010-008/05C4H45 1.00 4.00 0.80 45.00 5.00 0.95 2 30.0 C EB-A2 010-008/06C4H45 1.00 4.00 0.80 45.00 6.00 0.95 2 30.0 C EB-A2 010-008/08C4H45 1.00 4.00 0.80 45.00 8.00 0.95 2 30.0 C EB-A2 010-008/10C4H45 1.00 4.00 0.80 45.00 10.00 0.95 2 30.0 C EB-A2 010-008/12C4H45 1.00 4.00 0.80 45.00 12.00 0.95 2 30.0 C EB-A2 010-008/16C4H50 1.00 4.00 0.80 50.00 16.00 0.95 2 30.0 C EB-A2 010-008/20C4M55 1.00 4.00 0.80 55.00 20.00 0.95 2 30.0 C EB-A2 012-010/08C4H45 1.20 4.00 1.00 45.00 8.00 1.15 2 30.0 C EB-A2 015-012/06C4H45 1.50 4.00 1.20 45.00 6.00 1.45 2 30.0 C EB-A2 015-012/08C4H45 1.50 4.00 1.20 45.00 8.00 1.45 2 30.0 C EB-A2 015-012/10C4H45 1.50 4.00 1.20 45.00 10.00 1.45 2 30.0 C EB-A2 015-012/12C4H45 1.50 4.00 1.20 45.00 12.00 1.45 2 30.0 C EB-A2 015-012/16C4H50 1.50 4.00 1.20 50.00 16.00 1.45 2 30.0 C EB-A2 015-012/20C4H55 1.50 4.00 1.20 55.00 20.00 1.45 2 30.0 C EB-A2 020-016/04C4H45 2.00 4.00 1.60 45.00 4.00 1.95 2 30.0 C EB-A2 020-016/06C4H45 2.00 4.00 1.60 45.00 6.00 1.95 2 30.0 C EB-A2 020-016/10C4H45 2.00 4.00 1.60 45.00 10.00 1.95 2 30.0 C EB-A2 020-016/12C4H50 2.00 4.00 1.60 50.00 12.00 1.95 2 30.0 C EB-A2 020-016/14C4H50 2.00 4.00 1.60 50.00 14.00 1.95 2 30.0 C EB-A2 020-016/16C4H50 2.00 4.00 1.60 50.00 16.00 1.95 2 30.0 C EB-A2 020-016/20C4H55 2.00 4.00 1.60 55.00 20.00 1.95 2 30.0 C EB-A2 020-016/25C4H60 2.00 4.00 1.60 60.00 25.00 1.95 2 30.0 C EB-A2 020-016/30C4H70 2.00 4.00 1.60 70.00 30.00 1.95 2 30.0 C EB-A2 030-024/12C6H50 3.00 6.00 2.40 50.00 12.00 2.85 2 30.0 C EB-A2 030-024/16C6H55 3.00 6.00 2.40 55.00 16.00 2.85 2 30.0 C EB-A2 030-024/20C6H60 3.00 6.00 2.40 60.00 20.00 2.85 2 30.0 C EB-A2 030-024/25C6H65 3.00 6.00 2.40 65.00 25.00 2.85 2 30.0 C EB-A2 030-024/30C6H70 3.00 6.00 2.40 70.00 30.00 2.85 2 30.0 C EB-A2 030-024/35C6H80 3.00 6.00 2.40 80.00 35.00 2.85 2 30.0 C EB-A2 040-032/16C6H60 4.00 6.00 3.20 60.00 16.00 3.85 2 30.0 C EB-A2 040-032/20C6H65 4.00 6.00 3.20 65.00 20.00 3.85 2 30.0 C EB-A2 040-032/25C6H70 4.00 6.00 3.20 70.00 25.00 3.85 2 30.0 C For user guide, see pages 147-254 141 ENDMILLS SOLID CARBIDE MULTI-MASTER
