Твердосплавные цельные концевые фрезы Iscar Обозначение Режимы резания Подача на зуб Эскиз фрезерного инструмента с основными размерами ENDMILLS SOLID CARBI

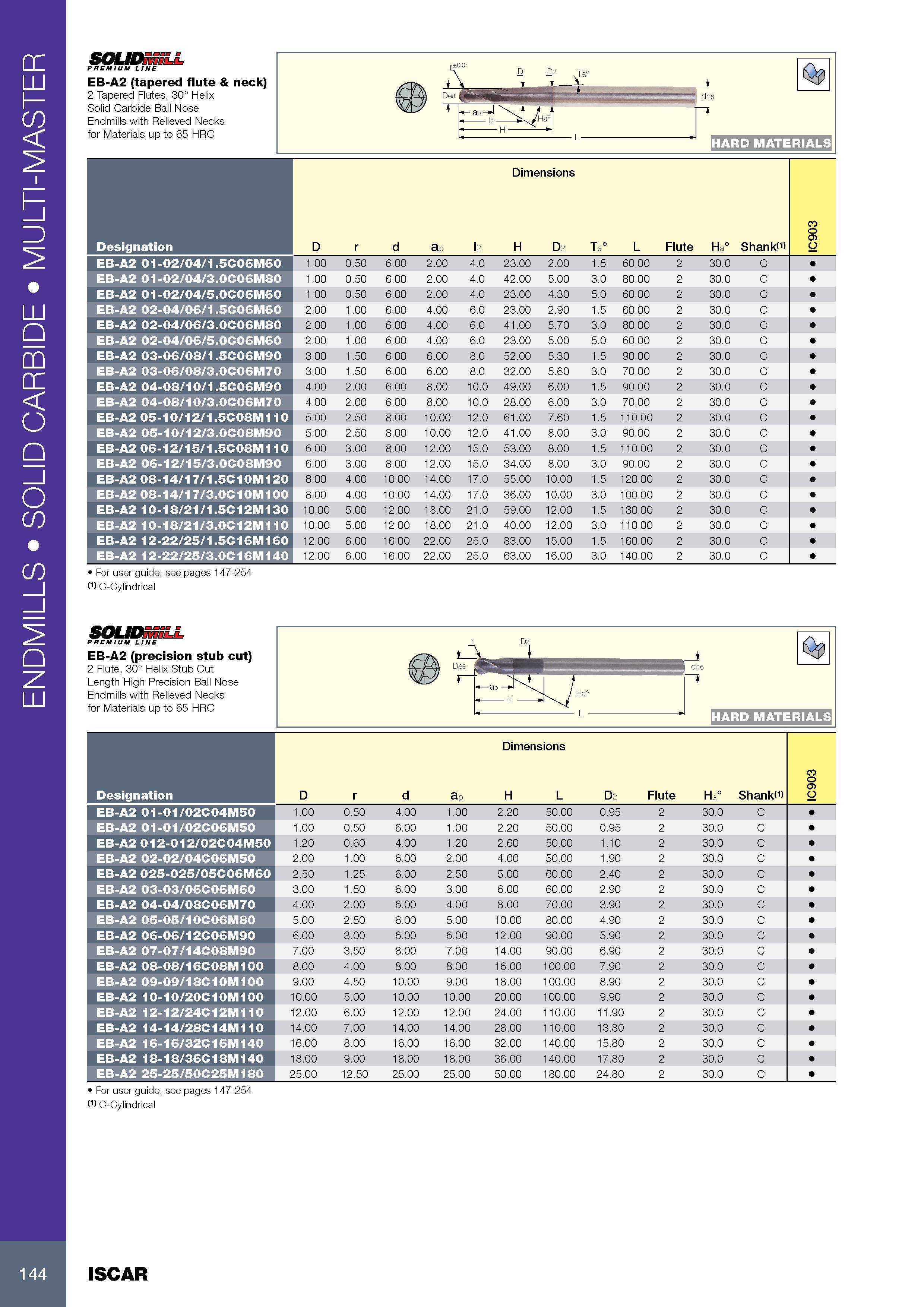

Твердосплавные цельные концевые фрезы Iscar Обозначение Режимы резания Подача на зуб Эскиз фрезерного инструмента с основными размерами ENDMILLS SOLID CARBIDE MULTI-MASTER SOUDmiLL PREMIUM LINE EB-A2 (tapered flute & neck) 2 Tapered Flutes, 30° Helix Solid Carbide Ball Nose Endmills with Relieved Necks for Materials up to 65 HRC HARD MATERIALS Размеры в мм Dimensions Обозначение Designation D r d ap l2 H D2 Ta° L Flute Ha° Shanks 0 9 IC EB-A2 01-02/04/1.5C06M60 1.00 0.50 6.00 2.00 4.0 23.00 2.00 1.5 60.00 2 30.0 C EB-A2 01-02/04/3.0C06M80 1.00 0.50 6.00 2.00 4.0 42.00 5.00 3.0 80.00 2 30.0 C EB-A2 01-02/04/5.0C06M60 1.00 0.50 6.00 2.00 4.0 23.00 4.30 5.0 60.00 2 30.0 C EB-A2 02-04/06/1.5C06M60 2.00 1.00 6.00 4.00 6.0 23.00 2.90 1.5 60.00 2 30.0 C EB-A2 02-04/06/3.0C06M80 2.00 1.00 6.00 4.00 6.0 41.00 5.70 3.0 80.00 2 30.0 C EB-A2 02-04/06/5.0C06M60 2.00 1.00 6.00 4.00 6.0 23.00 5.00 5.0 60.00 2 30.0 C EB-A2 03-06/08/1.5C06M90 3.00 1.50 6.00 6.00 8.0 52.00 5.30 1.5 90.00 2 30.0 C EB-A2 03-06/08/3.0C06M70 3.00 1.50 6.00 6.00 8.0 32.00 5.60 3.0 70.00 2 30.0 C EB-A2 04-08/10/1.5C06M90 4.00 2.00 6.00 8.00 10.0 49.00 6.00 1.5 90.00 2 30.0 C EB-A2 04-08/10/3.0C06M70 4.00 2.00 6.00 8.00 10.0 28.00 6.00 3.0 70.00 2 30.0 C EB-A2 05-10/12/1.5C08M110 5.00 2.50 8.00 10.00 12.0 61.00 7.60 1.5 110.00 2 30.0 C EB-A2 05-10/12/3.0C08M90 5.00 2.50 8.00 10.00 12.0 41.00 8.00 3.0 90.00 2 30.0 C EB-A2 06-12/15/1.5C08M110 6.00 3.00 8.00 12.00 15.0 53.00 8.00 1.5 110.00 2 30.0 C EB-A2 06-12/15/3.0C08M90 6.00 3.00 8.00 12.00 15.0 34.00 8.00 3.0 90.00 2 30.0 C EB-A2 08-14/17/1.5C10M120 8.00 4.00 10.00 14.00 17.0 55.00 10.00 1.5 120.00 2 30.0 C EB-A2 08-14/17/3.0C10M100 8.00 4.00 10.00 14.00 17.0 36.00 10.00 3.0 100.00 2 30.0 C EB-A2 10-18/21/1.5C12M130 10.00 5.00 12.00 18.00 21.0 59.00 12.00 1.5 130.00 2 30.0 C EB-A2 10-18/21/3.0C12M110 10.00 5.00 12.00 18.00 21.0 40.00 12.00 3.0 110.00 2 30.0 C EB-A2 12-22/25/1.5C16M160 12.00 6.00 16.00 22.00 25.0 83.00 15.00 1.5 160.00 2 30.0 C EB-A2 12-22/25/3.0C16M140 12.00 6.00 16.00 22.00 25.0 63.00 16.00 3.0 140.00 2 30.0 C For user guide, see pages 147-254 (1) C-Cylindrical L SOUDhHLL PREMIUM LINE EB-A2 (precision stub cut) 2 Flute, 30° Helix Stub Cut Length High Precision Ball Nose Endmills with Relieved Necks for Materials up to 65 HRC HARD MATERIALS Размеры в мм Dimensions Обозначение Designation D r d ap H L D2 Flute Ha° Shank(1) o 05 IC EB-A2 01-01/02C04M50 1.00 0.50 4.00 1.00 2.20 50.00 0.95 2 30.0 C EB-A2 01-01/02C06M50 1.00 0.50 6.00 1.00 2.20 50.00 0.95 2 30.0 C EB-A2 012-012/02C04M50 1.20 0.60 4.00 1.20 2.60 50.00 1.10 2 30.0 C EB-A2 02-02/04C06M50 2.00 1.00 6.00 2.00 4.00 50.00 1.90 2 30.0 C EB-A2 025-025/05C06M60 2.50 1.25 6.00 2.50 5.00 60.00 2.40 2 30.0 C EB-A2 03-03/06C06M60 3.00 1.50 6.00 3.00 6.00 60.00 2.90 2 30.0 C EB-A2 04-04/08C06M70 4.00 2.00 6.00 4.00 8.00 70.00 3.90 2 30.0 C EB-A2 05-05/10C06M80 5.00 2.50 6.00 5.00 10.00 80.00 4.90 2 30.0 C EB-A2 06-06/12C06M90 6.00 3.00 6.00 6.00 12.00 90.00 5.90 2 30.0 C EB-A2 07-07/14C08M90 7.00 3.50 8.00 7.00 14.00 90.00 6.90 2 30.0 C EB-A2 08-08/16C08M100 8.00 4.00 8.00 8.00 16.00 100.00 7.90 2 30.0 C EB-A2 09-09/18C10M100 9.00 4.50 10.00 9.00 18.00 100.00 8.90 2 30.0 C EB-A2 10-10/20C10M100 10.00 5.00 10.00 10.00 20.00 100.00 9.90 2 30.0 C EB-A2 12-12/24C12M110 12.00 6.00 12.00 12.00 24.00 110.00 11.90 2 30.0 C EB-A2 14-14/28C14M110 14.00 7.00 14.00 14.00 28.00 110.00 13.80 2 30.0 C EB-A2 16-16/32C16M140 16.00 8.00 16.00 16.00 32.00 140.00 15.80 2 30.0 C EB-A2 18-18/36C18M140 18.00 9.00 18.00 18.00 36.00 140.00 17.80 2 30.0 C EB-A2 25-25/50C25M180 25.00 12.50 25.00 25.00 50.00 180.00 24.80 2 30.0 C For user guide, see pages 147-254 (1) C-Cylindrical 144 ISCAR
