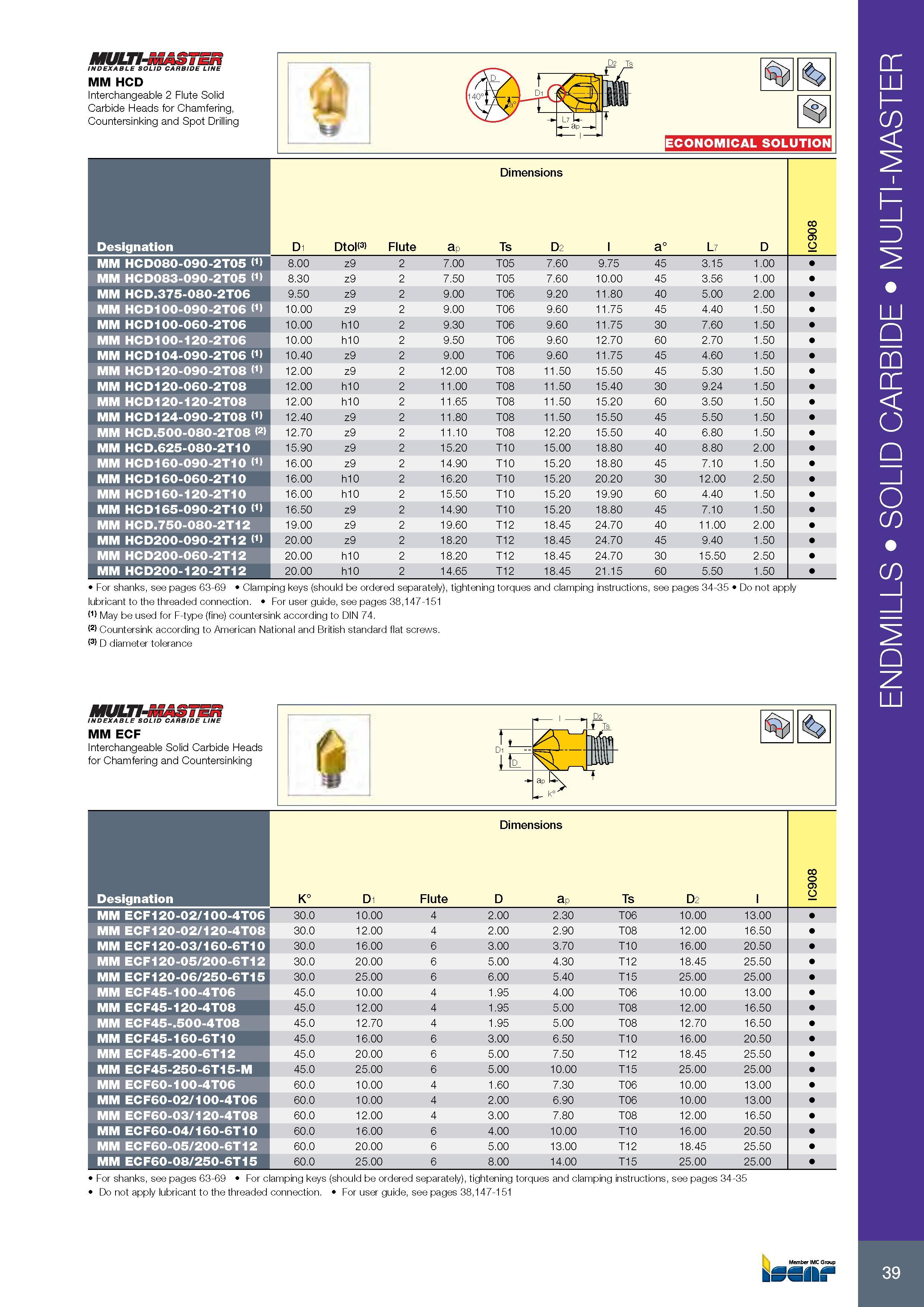

Сменные режущие твердосплавные головки Iscar для фрезерной обработки Обозначение Основные размеры Комплектующие Изображение MULTI-MASTER _ INDEXABLE SOLID CARBIDE LINE MM HCD Interchangeable 2 Flute Solid Carbide Heads for Chamfering, Countersinking and Spot Drilling Размеры в мм Dimensions Обозначение Designation D1 Dtol(3) Flute ap Ts D 2 l a° L7 D 0 9 IC MM HCD080-090-2T05 8.00 z9 2 7.00 T05 7.60 9.75 45 3.15 1.00 MM HCD083-090-2T05 8.30 z9 2 7.50 T05 7.60 10.00 45 3.56 1.00 MM HCD.375-080-2T06 9.50 z9 2 9.00 T06 9.20 11.80 40 5.00 2.00 MM HCD100-090-2T06 10.00 z9 2 9.00 T06 9.60 11.75 45 4.40 1.50 MM HCD100-060-2T06 10.00 h10 2 9.30 T06 9.60 11.75 30 7.60 1.50 MM HCD100-120-2T06 10.00 h10 2 9.50 T06 9.60 12.70 60 2.70 1.50 MM HCD104-090-2T06 10.40 z9 2 9.00 T06 9.60 11.75 45 4.60 1.50 MM HCD120-090-2T08 12.00 z9 2 12.00 T08 11.50 15.50 45 5.30 1.50 MM HCD120-060-2T08 12.00 h10 2 11.00 T08 11.50 15.40 30 9.24 1.50 MM HCD120-120-2T08 12.00 h10 2 11.65 T08 11.50 15.20 60 3.50 1.50 MM HCD124-090-2T08 12.40 z9 2 11.80 T08 11.50 15.50 45 5.50 1.50 MM HCD.500-080-2T08 <2) 12.70 z9 2 11.10 T08 12.20 15.50 40 6.80 1.50 MM HCD.625-080-2T10 15.90 z9 2 15.20 T10 15.00 18.80 40 8.80 2.00 MM HCD160-090-2T10 16.00 z9 2 14.90 T10 15.20 18.80 45 7.10 1.50 MM HCD160-060-2T10 16.00 h10 2 16.20 T10 15.20 20.20 30 12.00 2.50 MM HCD160-120-2T10 16.00 h10 2 15.50 T10 15.20 19.90 60 4.40 1.50 MM HCD165-090-2T10 16.50 z9 2 14.90 T10 15.20 18.80 45 7.10 1.50 MM HCD.750-080-2T12 19.00 z9 2 19.60 T12 18.45 24.70 40 11.00 2.00 MM HCD200-090-2T12 20.00 z9 2 18.20 T12 18.45 24.70 45 9.40 1.50 MM HCD200-060-2T12 20.00 h10 2 18.20 T12 18.45 24.70 30 15.50 2.50 MM HCD200-120-2T12 20.00 h10 2 14.65 T12 18.45 21.15 60 5.50 1.50 For shanks, see pages 63-69 Clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 (1) May be used for F-type (fine) countersink according to DIN 74. (2) Countersink according to American National and British standard flat screws. (3) D diameter tolerance MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM ECF Interchangeable Solid Carbide Heads for Chamfering and Countersinking Размеры в мм Dimensions Обозначение Designation K° D1 Flute D ap Ts D 2 l 0 9 IC MM ECF120-02/100-4T06 30.0 10.00 4 2.00 2.30 T06 10.00 13.00 MM ECF120-02/120-4T08 30.0 12.00 4 2.00 2.90 T08 12.00 16.50 MM ECF120-03/160-6T10 30.0 16.00 6 3.00 3.70 T10 16.00 20.50 MM ECF120-05/200-6T12 30.0 20.00 6 5.00 4.30 T12 18.45 25.50 MM ECF120-06/250-6T15 30.0 25.00 6 6.00 5.40 T15 25.00 25.00 MM ECF45-100-4T06 45.0 10.00 4 1.95 4.00 T06 10.00 13.00 MM ECF45-120-4T08 45.0 12.00 4 1.95 5.00 T08 12.00 16.50 MM ECF45-.500-4T08 45.0 12.70 4 1.95 5.00 T08 12.70 16.50 MM ECF45-160-6T10 45.0 16.00 6 3.00 6.50 T10 16.00 20.50 MM ECF45-200-6T12 45.0 20.00 6 5.00 7.50 T12 18.45 25.50 MM ECF45-250-6T15-M 45.0 25.00 6 5.00 10.00 T15 25.00 25.00 MM ECF60-100-4T06 60.0 10.00 4 1.60 7.30 T06 10.00 13.00 MM ECF60-02/100-4T06 60.0 10.00 4 2.00 6.90 T06 10.00 13.00 MM ECF60-03/120-4T08 60.0 12.00 4 3.00 7.80 T08 12.00 16.50 MM ECF60-04/160-6T10 60.0 16.00 6 4.00 10.00 T10 16.00 20.50 MM ECF60-05/200-6T12 60.0 20.00 6 5.00 13.00 T12 18.45 25.50 MM ECF60-08/250-6T15 60.0 25.00 6 8.00 14.00 T15 25.00 25.00 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 39 ENDMILLS SOLID CARBIDE MULTI-MASTER
