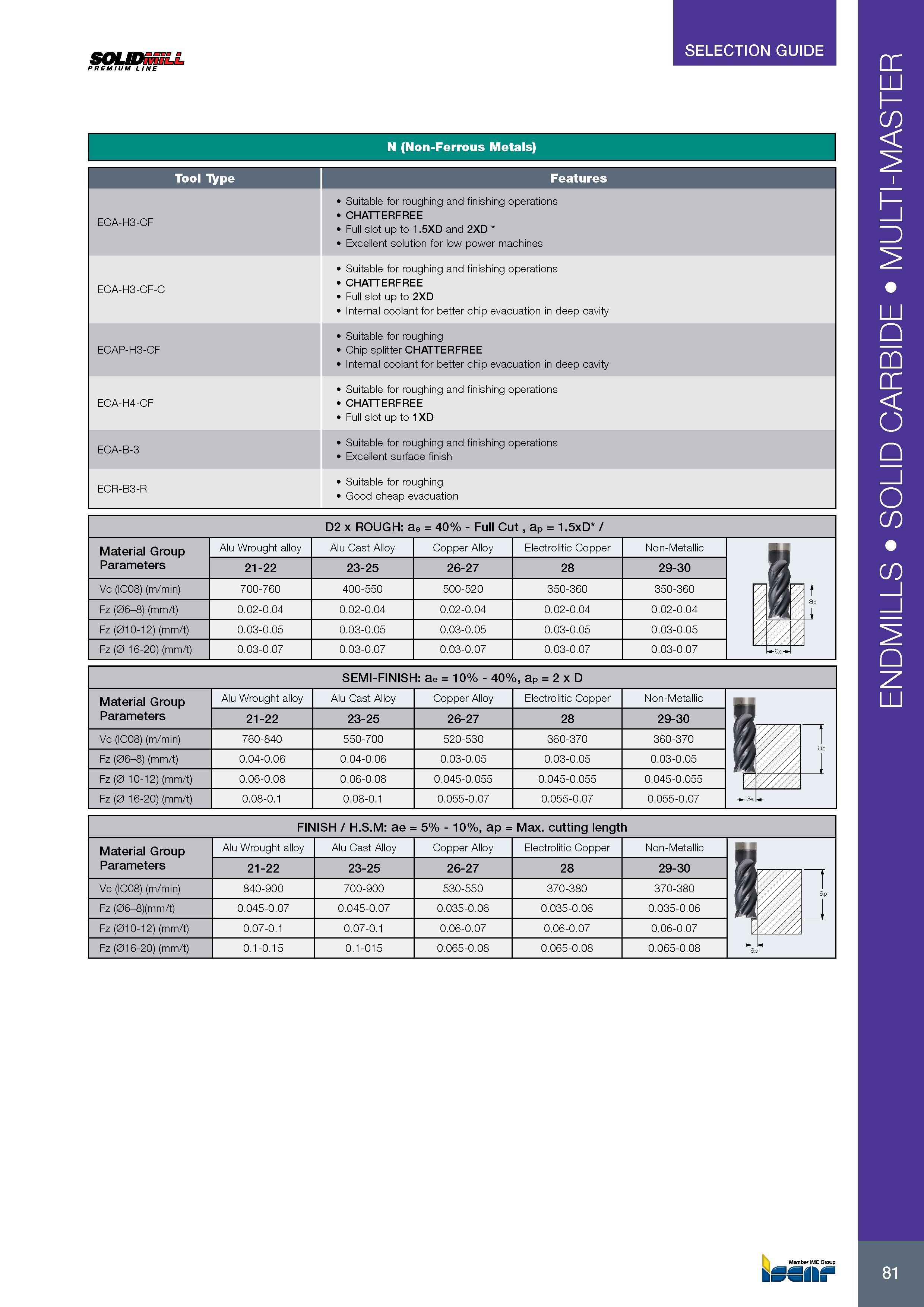

SELECTION GUIDE 81 SOLIDmiLL PREMIUM LINE N (Non-Ferrous Metals) Tool Type Features ECA-H3-CF Suitable for roughing and finishing operations CHATTERFREE Full slot up to 1.5XD and 2XD Excellent solution for low power machines ECA-H3-CF-C Suitable for roughing and finishing operations CHATTERFREE Full slot up to 2XD Internal coolant for better chip evacuation in deep cavity ECAP-H3-CF Suitable for roughing Chip splitter CHATTERFREE Internal coolant for better chip evacuation in deep cavity ECA-H4-CF Suitable for roughing and finishing operations CHATTERFREE Full slot up to 1XD ECA-B-3 Suitable for roughing and finishing operations Excellent surface finish ECR-B3-R Suitable for roughing Good cheap evacuation D2 x ROUGH: ae = 40% - Full Cut , ap = 1.5xD / Material Group Parameters Alu Wrought alloy Alu Cast Alloy Copper Alloy Electrolitic Copper Non-Metallic I 21-22 23-25 26-27 28 29-30 Vc (IC08) (m/min) 700-760 400-550 500-520 350-360 350-360 n I Fz (06-8) (mm/t) 0.02-0.04 0.02-0.04 0.02-0.04 0.02-0.04 0.02-0.04 Fz (010-12) (mm/t) 0.03-0.05 0.03-0.05 0.03-0.05 0.03-0.05 0.03-0.05 2 Fz (0 16-20) (mm/t) 0.03-0.07 0.03-0.07 0.03-0.07 0.03-0.07 0.03-0.07 ae- - SEMI-FINISH: ae = 10% - 40%, ap = 2 x D Material Group Alu Wrought alloy Alu Cast Alloy Copper Alloy Electrolitic Copper Non-Metallic Parameters 21-22 23-25 26-27 28 29-30 I i Vc (IC08) (m/min) 760-840 550-700 520-530 360-370 360-370 t >/ ap 1 Fz (06-8) (mm/t) 0.04-0.06 0.04-0.06 0.03-0.05 0.03-0.05 0.03-0.05 9 /////// Fz (0 10-12) (mm/t) 0.06-0.08 0.06-0.08 0.045-0.055 0.045-0.055 0.045-0.055 r -/ T Fz (0 16-20) (mm/t) 0.08-0.1 0.08-0.1 0.055-0.07 0.055-0.07 0.055-0.07 ae FINISH / H.S.M: ae = 5% - 10%, ap = Max. cutting length Material Group Alu Wrought alloy Alu Cast Alloy Copper Alloy Electrolitic Copper Non-Metallic to Parameters 21-22 23-25 26-27 28 29-30 fA '////// t Vc (IC08) (m/min) 840-900 700-900 530-550 370-380 370-380 ap Fz (06-8)(mm/t) 0.045-0.07 0.045-0.07 0.035-0.06 0.035-0.06 0.035-0.06 m I Fz (010-12) (mm/t) 0.07-0.1 0.07-0.1 0.06-0.07 0.06-0.07 0.06-0.07 i Fz (016-20) (mm/t) 0.1-0.15 0.1-015 0.065-0.08 0.065-0.08 0.065-0.08 -j a ENDMILLS SOLID CARBIDE MULTI-MASTER
