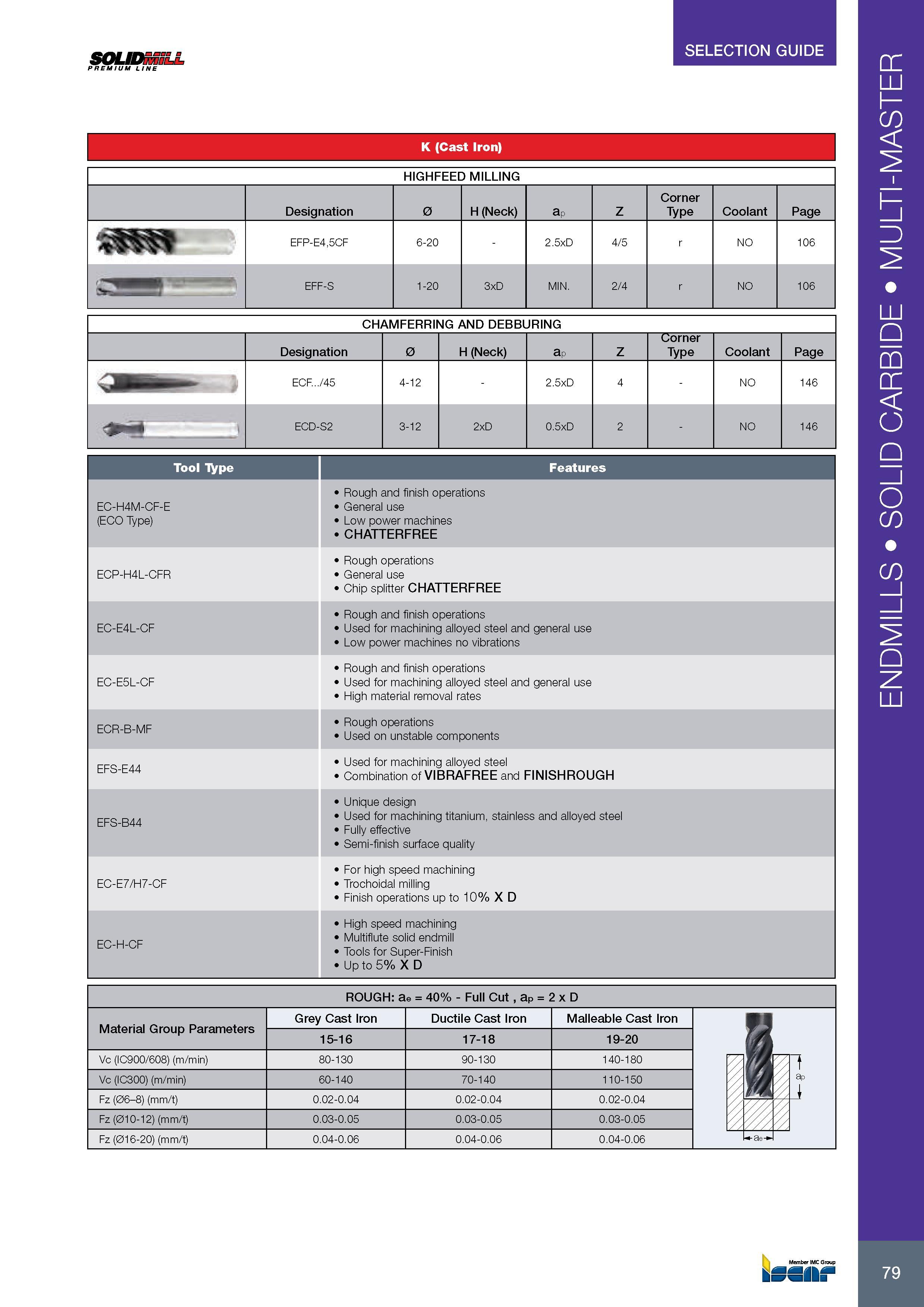

SOLIDmiLL PREMIUM LINE SELECTION GUIDE K (Cast Iron) HIGHFEED MILLING Обозначение Designation 0 H (Neck) ap Z Corner Type Coolant Page EFP-E4,5CF 6-20 - 2.5xD 4/5 r NO 106 EFF-S 1-20 3xD MIN. 2/4 r NO 106 'k. CHAMFERRING AND DEBBURING Corner Type Обозначение Designation 0 H (Neck) ap Coolant Page ECF.../45 ECD-S2 4-12 3-12 2xD 2.5xD 0.5xD NO 146 146 Tool Type Features EC-H4M-CF-E (ECO Type) Rough and finish operations General use Low power machines CHATTERFREE ECP-H4L-CFR Rough operations General use Chip splitter CHATTERFREE EC-E4L-CF Rough and finish operations Used for machining alloyed steel and general use Low power machines no vibrations EC-E5L-CF Rough and finish operations Used for machining alloyed steel and general use High material removal rates ECR-B-MF Rough operations Used on unstable components EFS-E44 Used for machining alloyed steel Combination of VIBRAFREE and FINISHROUGH EFS-B44 Unique design Used for machining titanium, stainless and alloyed steel Fully effective Semi-finish surface quality EC-E7/H7-CF For high speed machining Trochoidal milling Finish operations up to 10% X D EC-H-CF High speed machining Multiflute solid endmill Tools for Super-Finish Up to 5% X D ROUGH: ae = 40% - Full Cut , ap = 2 x D Material Group Parameters Grey Cast Iron Ductile Cast Iron Malleable Cast Iron 15-16 17-18 19-20 Vc (IC900/608) (m/min) 80-130 90-130 140-180 t ap 1 Vc (IC300) (m/min) 60-140 70-140 110-150 Fz (06-8) (mm/t) 0.02-0.04 0.02-0.04 0.02-0.04 Fz (010-12) (mm/t) 0.03-0.05 0.03-0.05 0.03-0.05 Fz (016-20) (mm/t) 0.04-0.06 0.04-0.06 0.04-0.06 ae->- Member IMC Group kSSII t Z 4 2 ENDMILLS SOLID CARBIDE MULTI-MASTER
