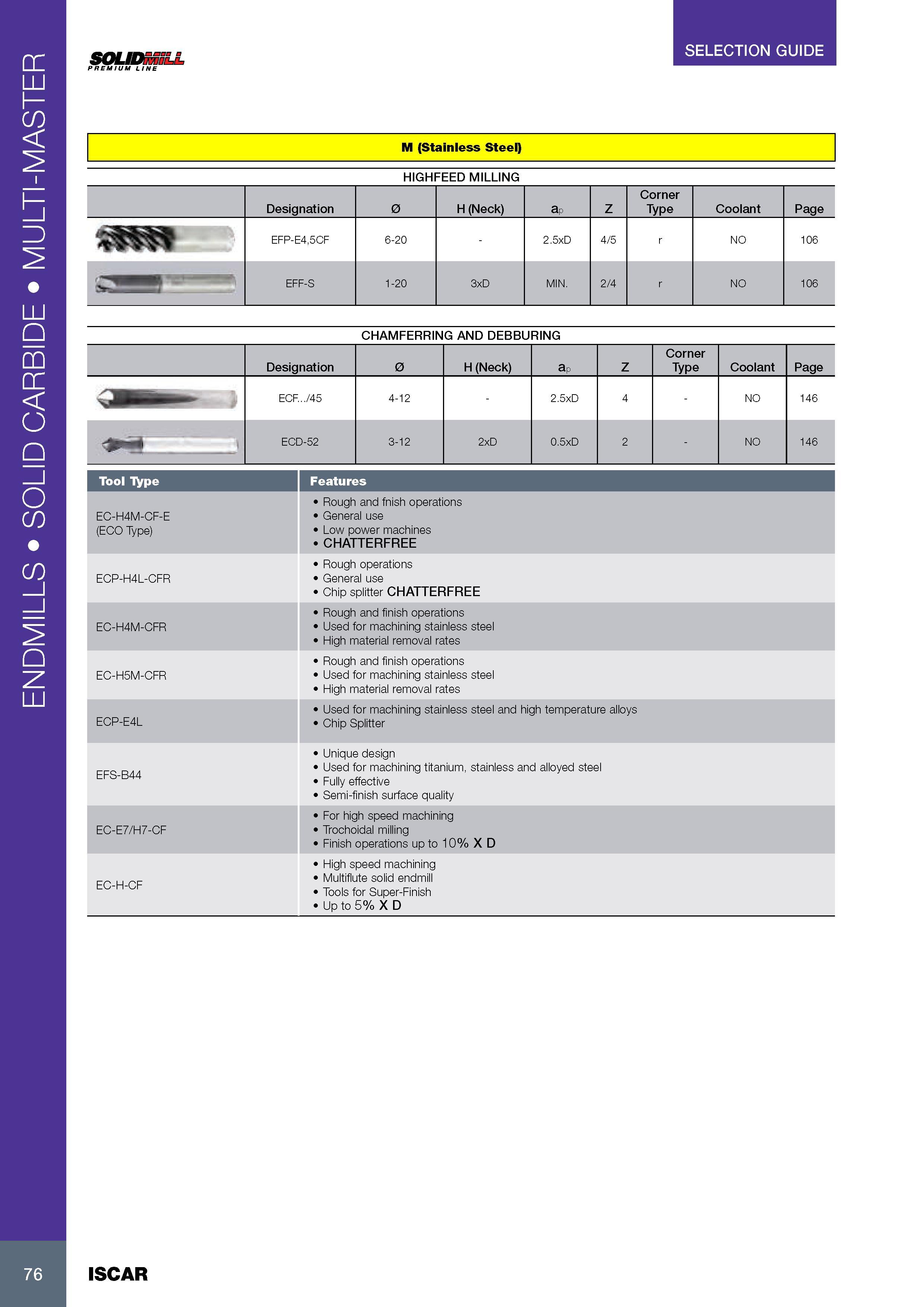

ENDMILLS SOLID CARBIDE MULTI-MASTER SELECTION GUIDE SOLIDmiLL PREMIUM LINE M (Stainless Steel) HIGHFEED MILLING Обозначение Designation H (Neck) ap Corner Type Coolant Page EFP-E4.5CF EFF-S 6-20 1-20 3xD 2.5xD MIN. 4/5 2/4 NO 106 106 CHAMFERRING AND DEBBURING Обозначение Designation H (Neck) ap Corner Type Coolant Page ECF.../45 ECD-52 4-12 3-12 2xD 2.5xD 0.5xD NO 146 146 Tool Type Features EC-H4M-CF-E (ECO Type) Rough and fnish operations General use Low power machines CHATTERFREE ECP-H4L-CFR Rough operations General use Chip splitter CHATTERFREE EC-H4M-CFR Rough and finish operations Used for machining stainless steel High material removal rates EC-H5M-CFR Rough and finish operations Used for machining stainless steel High material removal rates ECP-E4L Used for machining stainless steel and high temperature alloys Chip Splitter EFS-B44 Unique design Used for machining titanium, stainless and alloyed steel Fully effective Semi-finish surface quality EC-E7/H7-CF For high speed machining Trochoidal milling Finish operations up to 10% X D EC-H-CF High speed machining Multiflute solid endmill Tools for Super-Finish Up to 5% X D 0 Z 0 Z 4 2 76 ISCAR
