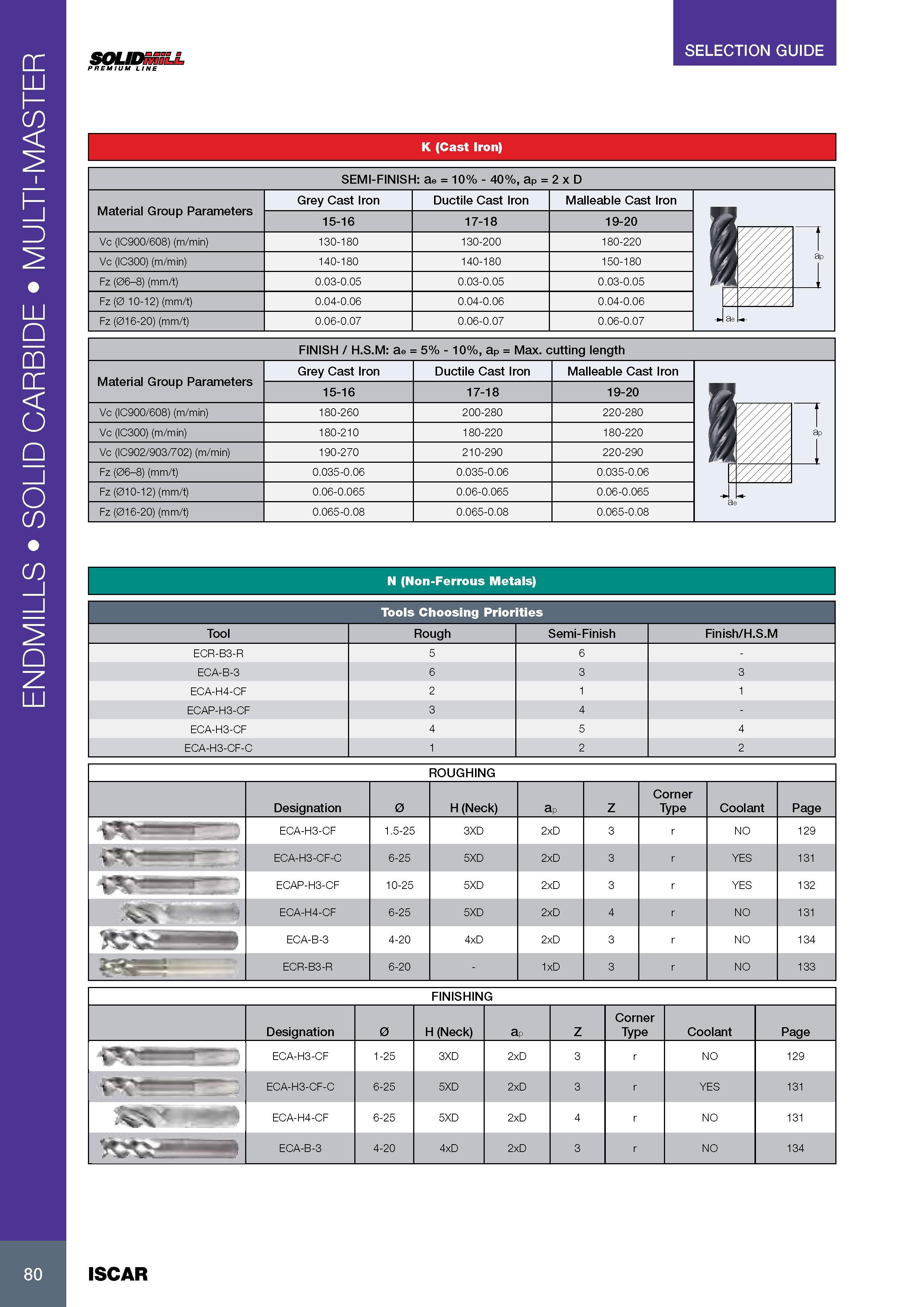

ENDMILLS SOLID CARBIDE MULTI-MASTER SELECTION GUIDE SOLIDmiLL PREMIUM LINE K (Cast Iron) SEMI-FINISH: ae = 10% - 40%, ap = 2 x D Material Group Parameters Grey Cast Iron Ductile Cast Iron Malleable Cast Iron 15-16 17-18 19-20 Vc (IC900/608) (m/min) 130-180 130-200 180-220 1 ap 1 Vc (IC300) (m/min) 140-180 140-180 150-180 Fz (06-8) (mm/t) 0.03-0.05 0.03-0.05 0.03-0.05 Fz (0 10-12) (mm/t) 0.04-0.06 0.04-0.06 0.04-0.06 I Fz (016-20) (mm/t) 0.06-0.07 0.06-0.07 0.06-0.07 -dae L- FINISH / H.S.M: ae 5% - 10%, ap = Max. cutting length Material Group Parameters Grey Cast Iron Ductile Cast Iron Malleable Cast Iron 15-16 17-18 19-20 Vc (IC900/608) (m/min) 180-260 200-280 220-280 MM t Vc (IC300) (m/min) 180-210 180-220 180-220 ap Vc (IC902/903/702) (m/min) 190-270 210-290 220-290 I Fz (06-8) (mm/t) 0.035-0.06 0.035-0.06 0.035-0.06 / MMM Fz (010-12) (mm/t) 0.06-0.065 0.06-0.065 0.06-0.065 - Fz (016-20) (mm/t) 0.065-0.08 0.065-0.08 0.065-0.08 e N (Non-Ferrous Metals) Tools Choosing Priorities Tool Rough Semi-Finish Finish/H.S.M ECR-B3-R 5 6 - ECA-B-3 6 3 3 ECA-H4-CF 2 1 1 ECAP-H3-CF 3 4 - ECA-H3-CF 4 5 4 ECA-H3-CF-C 1 2 2 ROUGHING Обозначение Designation H (Neck) a Corner Type Coolant Page ECA-H3-CF 1.5-25 ECA-H3-CF-C 6-25 ECAP-H3-CF 10-25 ECA-H4-CF 6-25 ECA-B-3 4-20 ECR-B3-R 6-20 3XD 5XD 5XD 5XD 4xD 2xD 2xD 2xD 2xD 2xD 1xD NO 129 YES 131 YES 132 NO 131 NO 134 NO 133 FINISHING Обозначение Designation 0 H (Neck) ap Corner Type Coolant Page ECA-H3-CF ECA-H3-CF-C ECA-H4-CF ECA-B-3 1-25 6-25 6-25 4-20 3XD 5XD 5XD 4xD 2xD 2xD 2xD 2xD NO YES NO 129 131 131 134 0 Z Z 80 ISCAR
