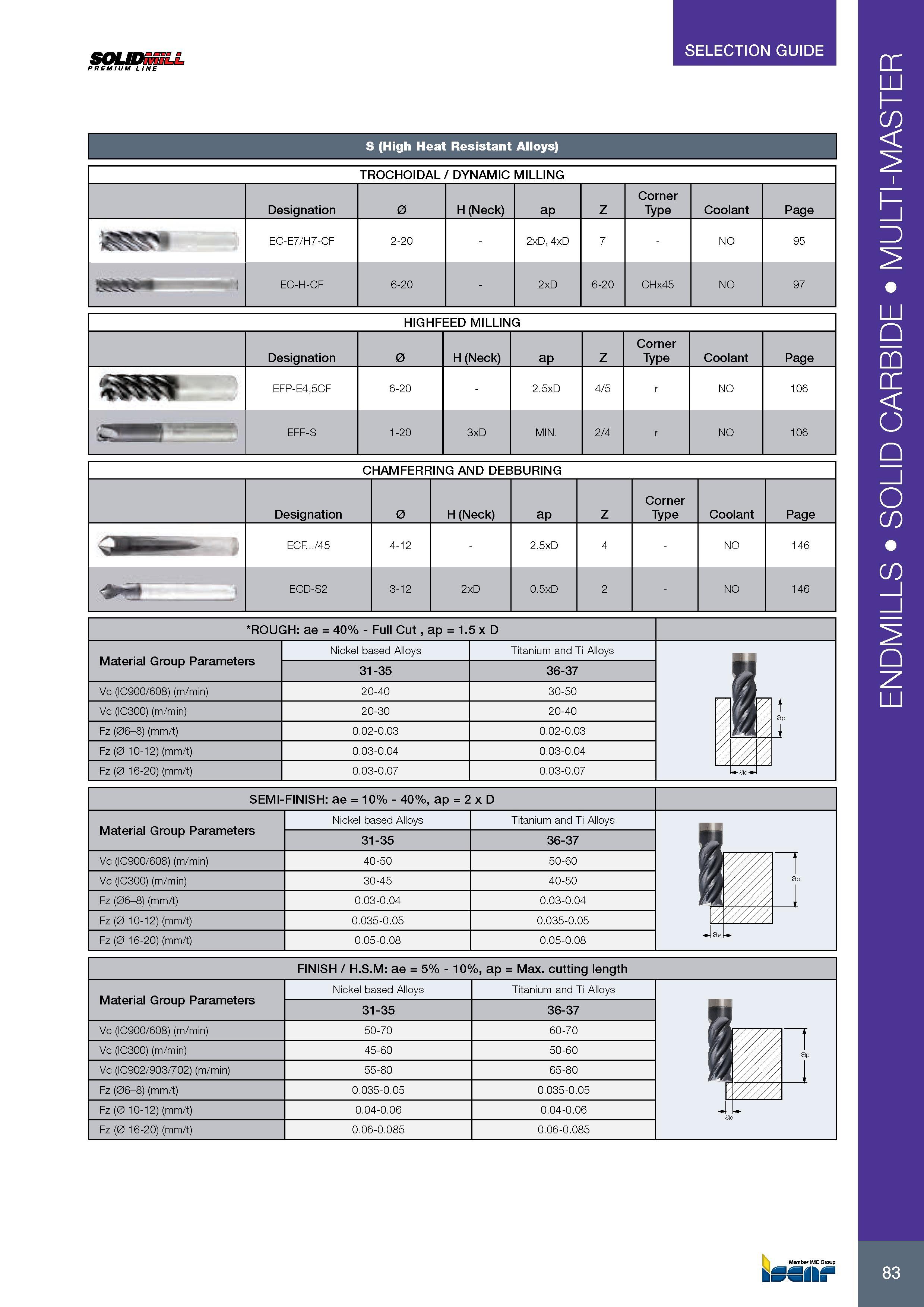

SOLIDmiLL PREMIUM LINE SELECTION GUIDE S (High Heat Resistant Alloys) TROCHOIDAL / DYNAMIC MILLING Обозначение Designation 0 H (Neck) ap Z Corner Type Coolant Page S88SV EC-E7/H7-CF 2-20 - 2xD, 4xD 7 - NO 95 EC-H-CF 6-20 - 2xD 6-20 CHx45 NO 97 HIGHFEED MILLING Обозначение Designation 0 H (Neck) ap Z Corner Type Coolant Page EFP-E4,5CF 6-20 - 2.5xD 4/5 r NO 106 .'l- EFF-S 1-20 3xD MIN. 2/4 r NO 106 CHAMFERRING AND DEBBURING Обозначение Designation 0 H (Neck) ap Z Corner Type Coolant Page ECF.../45 4-12 - 2.5xD 4 - NO 146 ECD-S2 3-12 2xD 0.5xD 2 - NO 146 ROUGH: ae = 40% - Full Cut , ap = 1.5 x D Material Group Parameters Nickel based Alloys Titanium and Ti Alloys 31-35 36-37 Vc (IC900/608) (m/min) 20-40 30-50 t ap J Vc (IC300) (m/min) 20-30 20-40 Fz (06-8) (mm/t) 0.02-0.03 0.02-0.03 Fz (0 10-12) (mm/t) 0.03-0.04 0.03-0.04 // Fz (0 16-20) (mm/t) 0.03-0.07 0.03-0.07 ae > SEMI-FINISH: ae = 10% - 40%, ap = 2 x D Material Group Parameters Nickel based Alloys Titanium and Ti Alloys 31-35 36-37 Vc (IC900/608) (m/min) 40-50 50-60 it t ap 1 Vc (IC300) (m/min) 30-45 40-50 Fz (06-8) (mm/t) 0.03-0.04 0.03-0.04 Fz (0 10-12) (mm/t) 0.035-0.05 0.035-0.05 /V/V/A - ae Fz (0 16-20) (mm/t) 0.05-0.08 0.05-0.08 FINISH / H.S.M: ae = 5% - 10%, ap = Max. cutting length Material Group Parameters Nickel based Alloys Titanium and Ti Alloys 31-35 36-37 Vc (IC900/608) (m/min) 50-70 60-70 y///// Vc (IC300) (m/min) 45-60 50-60 ap Vc (IC902/903/702) (m/min) 55-80 65-80 Fz (06-8) (mm/t) 0.035-0.05 0.035-0.05 / y/////z, Fz (0 10-12) (mm/t) 0.04-0.06 0.04-0.06 Fz (0 16-20) (mm/t) 0.06-0.085 0.06-0.085 83 ENDMILLS SOLID CARBIDE MULTI-MASTER
