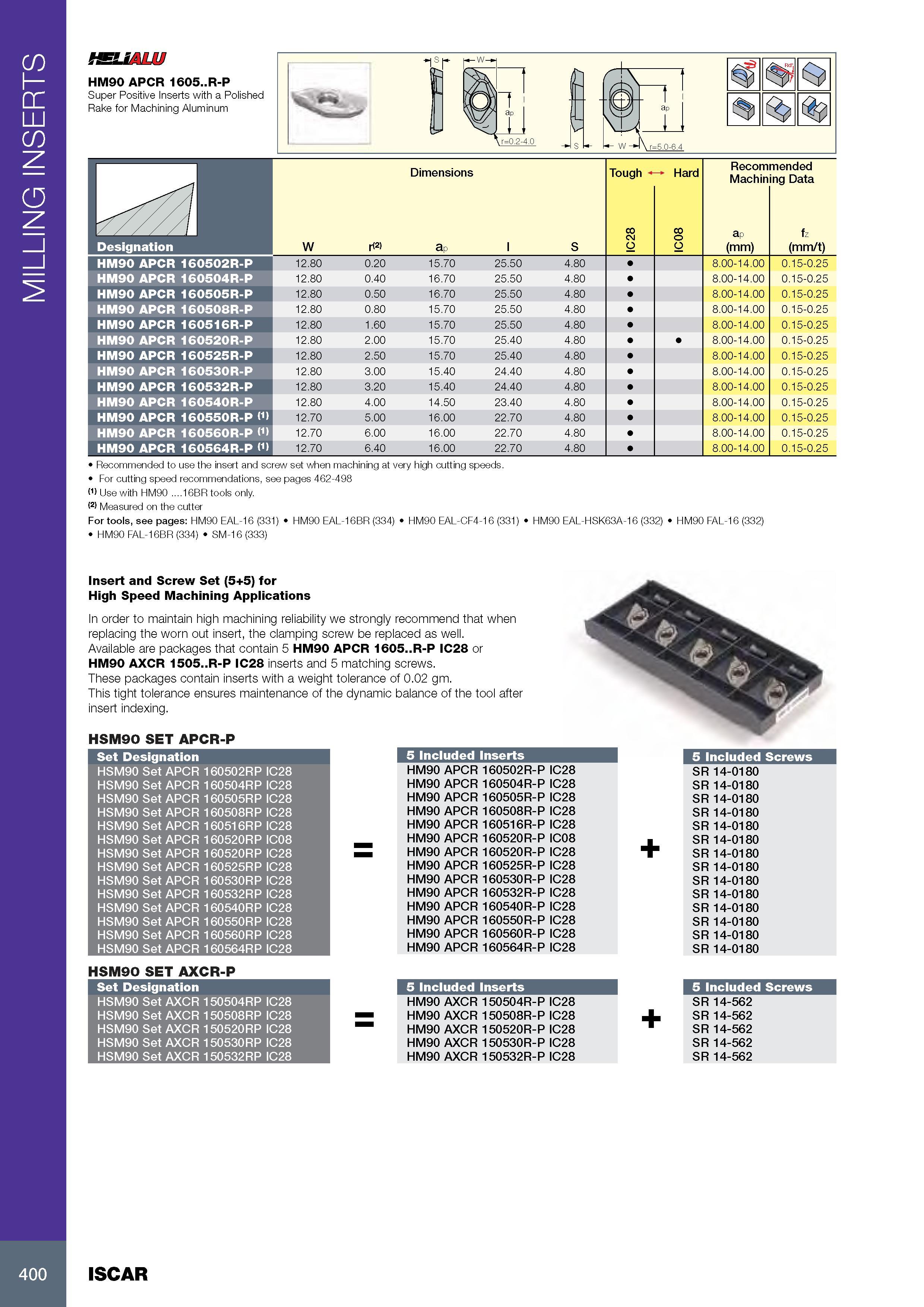

MILLING INSERTS fSUALU HM90 APCR 1605..R-P Super Positive Inserts with a Polished Rake for Machining Aluminum Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data IC28 IC08 Глубина резания в мм ap (mm) fz Обозначение Designation W r(2) ap l S (mm/t) HM90 APCR 160502R-P 12.80 0.20 15.70 25.50 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160504R-P 12.80 0.40 16.70 25.50 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160505R-P 12.80 0.50 16.70 25.50 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160508R-P 12.80 0.80 15.70 25.50 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160516R-P 12.80 1.60 15.70 25.50 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160520R-P 12.80 2.00 15.70 25.40 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160525R-P 12.80 2.50 15.70 25.40 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160530R-P 12.80 3.00 15.40 24.40 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160532R-P 12.80 3.20 15.40 24.40 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160540R-P 12.80 4.00 14.50 23.40 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160550R-P <1> 12.70 5.00 16.00 22.70 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160560R-P <1> 12.70 6.00 16.00 22.70 4.80 8.00-14.00 0.15-0.25 HM90 APCR 160564R-P <1> 12.70 6.40 16.00 22.70 4.80 8.00-14.00 0.15-0.25 Recommended to use the insert and screw set when machining at very high cutting speeds. Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 (1) Use with HM90 16BR tools only. (2) Measured on the cutter For tools, see pages: HM90 EAL-16 (331) HM90 EAL-16BR (334) HM90 EAL-CF4-16 (331) HM90 FAL-16BR (334) SM-16 (333) HM90 EAL-HSK63A-16 (332) HM90 FAL-16 (332) Insert and Screw Set (5+5) for High Speed Machining Applications I n order to maintain high machining reliability we strongly recommend that when replacing the worn out insert, the clamping screw be replaced as well. Available are packages that contain 5 HM90 APCR 1605..R-P IC28 or HM90 AXCR 1505..R-P IC28 inserts and 5 matching screws. These packages contain inserts with a weight tolerance of 0.02 gm. This tight tolerance ensures maintenance of the dynamic balance of the tool after insert indexing. HSM90 SET APCR-P HSM90 SET AXCR-P Set Обозначение Designation 5 Included Inserts 5 Included Screws HSM90 Set APCR 160502RP IC28 HM90 APCR 160502R-P IC28 SR 14-0180 HSM90 Set APCR 160504RP IC28 HM90 APCR 160504R-P IC28 SR 14-0180 HSM90 Set APCR 160505RP IC28 HM90 APCR 160505R-P IC28 SR 14-0180 HSM90 Set APCR 160508RP IC28 HM90 APCR 160508R-P IC28 SR 14-0180 HSM90 Set APCR 160516RP IC28 HM90 APCR 160516R-P IC28 SR 14-0180 HSM90 Set APCR 160520RP IC08 HM90 APCR 160520R-P IC08 + SR 14-0180 HSM90 Set APCR 160520RP IC28 HM90 APCR 160520R-P IC28 SR 14-0180 HSM90 Set APCR 160525RP IC28 HM90 APCR 160525R-P IC28 SR 14-0180 HSM90 Set APCR 160530RP IC28 HM90 APCR 160530R-P IC28 SR 14-0180 HSM90 Set APCR 160532RP IC28 HM90 APCR 160532R-P IC28 SR 14-0180 HSM90 Set APCR 160540RP IC28 HM90 APCR 160540R-P IC28 SR 14-0180 HSM90 Set APCR 160550RP IC28 HM90 APCR 160550R-P IC28 SR 14-0180 HSM90 Set APCR 160560RP IC28 HM90 APCR 160560R-P IC28 SR 14-0180 HSM90 Set APCR 160564RP IC28 HM90 APCR 160564R-P IC28 SR 14-0180 Set Обозначение Designation 5 Included Inserts 5 Included Screws HSM90 Set AXCR 150504RP IC28 HM90 AXCR 150504R-P IC28 SR 14-562 HSM90 Set AXCR 150508RP IC28 mm HM90 AXCR 150508R-P IC28 + SR 14-562 HSM90 Set AXCR 150520RP IC28 HM90 AXCR 150520R-P IC28 SR 14-562 HSM90 Set AXCR 150530RP IC28 HM90 AXCR 150530R-P IC28 SR 14-562 HSM90 Set AXCR 150532RP IC28 HM90 AXCR 150532R-P IC28 SR 14-562 S S 400 ISCAR
