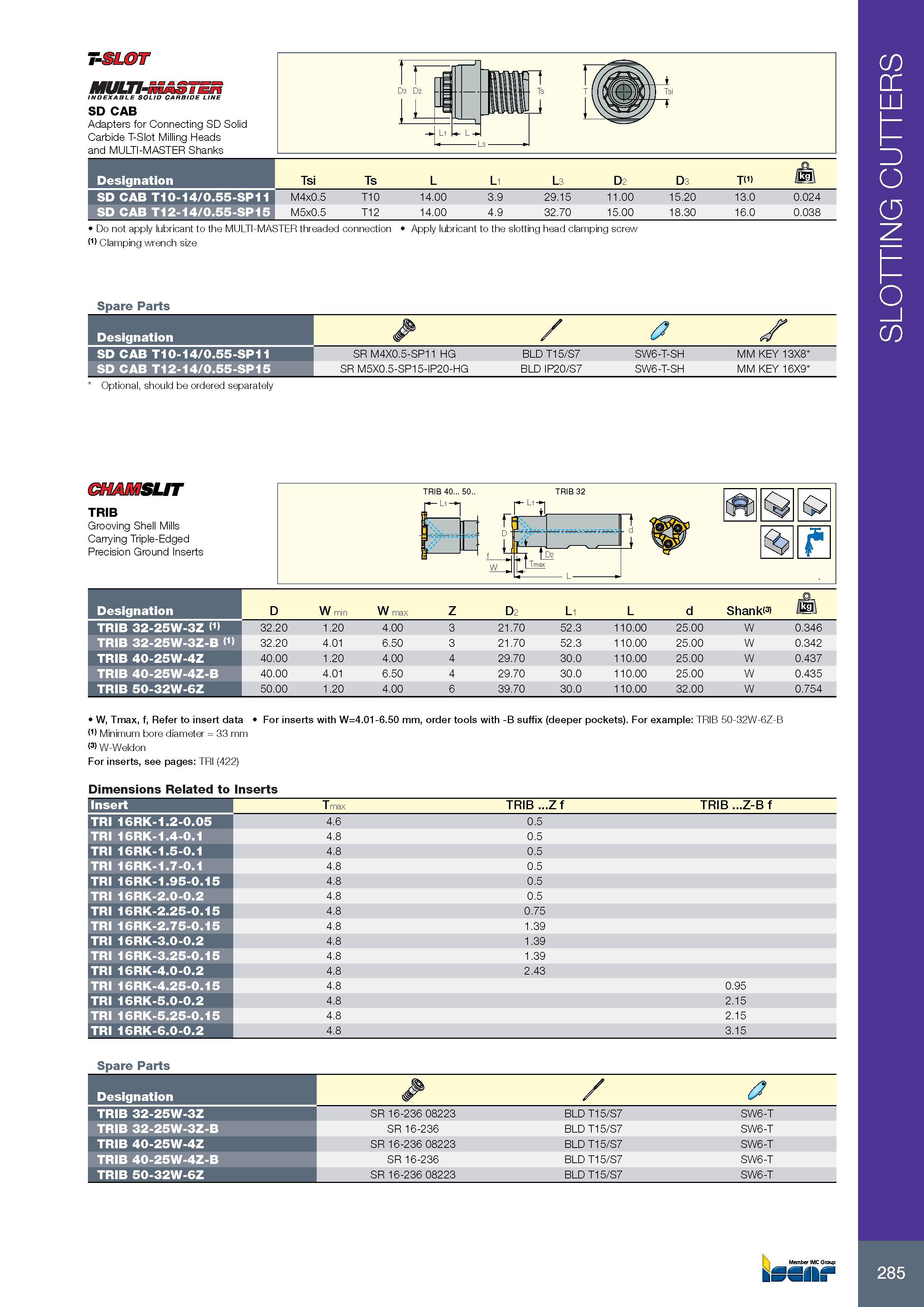

T-SLOT MULTt-i INDEXABLE SOLID CARBIDE LINE SD CAB Adapters for Connecting SD Solid Carbide T-Slot Milling Heads and MULTI-MASTER Shanks Обозначение Designation SD CAB T10-14/0.55-SP11 SD CAB T12-14/0.55-SP15 Tsi M4x0.5 M5x0.5 Ts T10 T12 L1 L3 D2 D3 14.00 14.00 3.9 4.9 29.15 32.70 11.00 15.00 15.20 18.30 Do not apply lubricant to the MULTI-MASTER threaded connection Apply lubricant to the slotting head clamping screw (1) Clamping wrench size TM) 13.0 16.0 0.024 0.038 Spare Parts Обозначение Designation / 0 s SD CAB T10-14/0.55-SP11 SR M4X0.5-SP11 HG BLD T15/S7 SW6-T-SH MM KEY 13X8 SD CAB T12-14/0.55-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH MM KEY 16X9 Optional, should be ordered separately CHAMSLIT TRIB Grooving Shell Mills Carrying Triple-Edged Precision Ground Inserts Обозначение Designation D W min W max Z D2 L1 L d Shank(3) TRIB 32-25W-3Z (1) 32.20 1.20 4.00 3 21.70 52.3 110.00 25.00 W 0.346 TRIB 32-25W-3Z-B (1) 32.20 4.01 6.50 3 21.70 52.3 110.00 25.00 W 0.342 TRIB 40-25W-4Z 40.00 1.20 4.00 4 29.70 30.0 110.00 25.00 W 0.437 TRIB 40-25W-4Z-B 40.00 4.01 6.50 4 29.70 30.0 110.00 25.00 W 0.435 TRIB 50-32W-6Z 50.00 1.20 4.00 6 39.70 30.0 110.00 32.00 W 0.754 W, Tmax, f, Refer to insert data For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B (1) Minimum bore diameter = 33 mm (3) W-Weldon For inserts, see pages: TRI (422) Размеры в мм Dimensions Related to Inserts Insert T max f .Z RI T TRIB ...Z-B f TRI 16RK-1.2-0.05 4. 6 0.5 TRI 16RK-1.4-0.1 4. 8 0.5 TRI 16RK-1.5-0.1 4. 8 0.5 TRI 16RK-1.7-0.1 4. 8 0.5 TRI 16RK-1.95-0.15 4. 8 0.5 TRI 16RK-2.0-0.2 4 8 0.5 TRI 16RK-2.25-0.15 4 8 0.75 TRI 16RK-2.75-0.15 4 8 1.39 TRI 16RK-3.0-0.2 4 8 1.39 TRI 16RK-3.25-0.15 4 8 1.39 TRI 16RK-4.0-0.2 4 8 2.43 TRI 16RK-4.25-0.15 4 8 0.95 TRI 16RK-5.0-0.2 4 8 2.15 TRI 16RK-5.25-0.15 4 8 2.15 TRI 16RK-6.0-0.2 4 8 3.15 Spare Parts Обозначение Designation & / 0 TRIB 32-25W-3Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 32-25W-3Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 40-25W-4Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 40-25W-4Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 50-32W-6Z SR 16-236 08223 BLD T15/S7 SW6-T 285 SLOTTING CUTTERS
