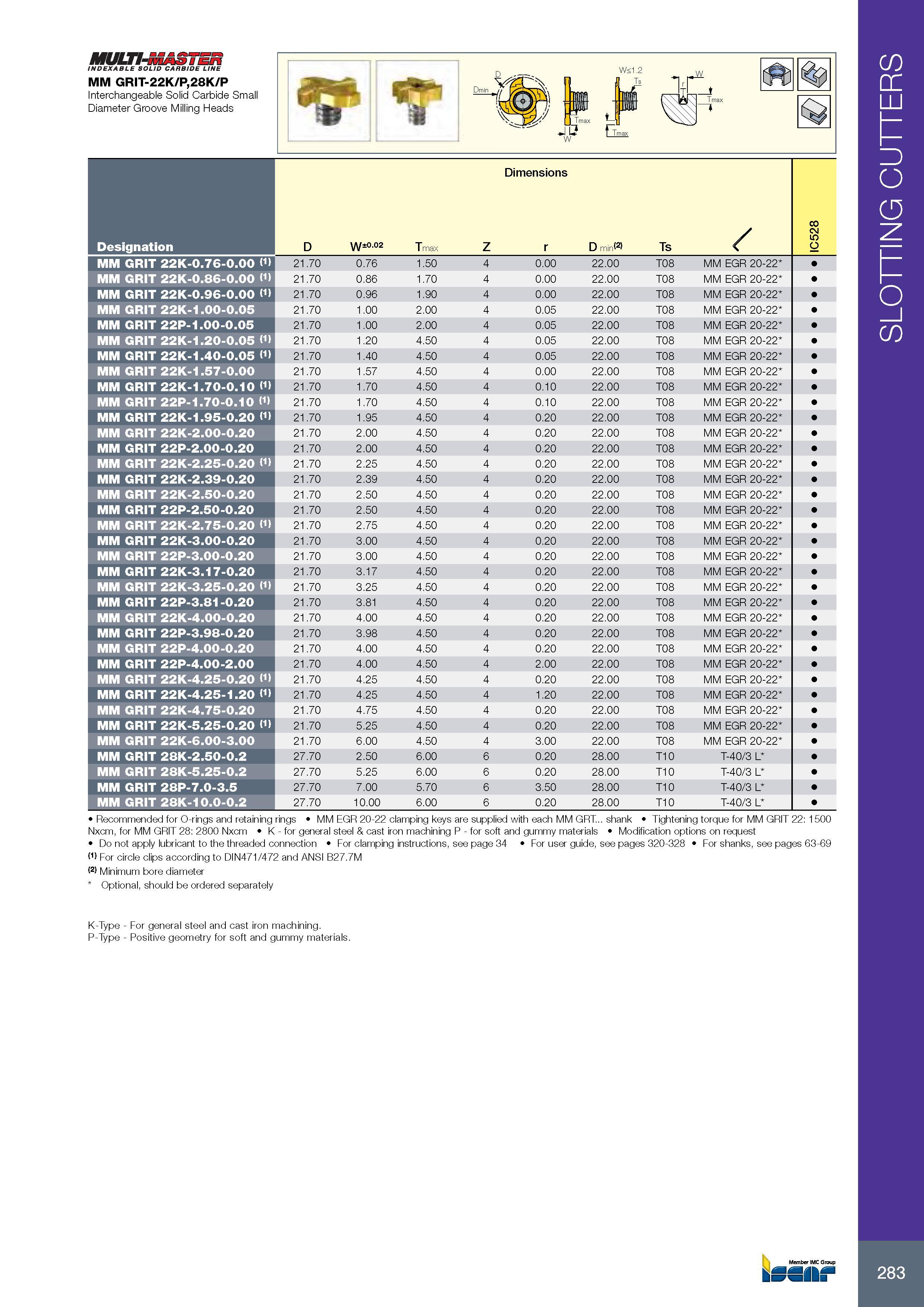

283 MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM GRIT-22K/P,28K/P Interchangeable Solid Carbide Small Diameter Groove Milling Heads Размеры в мм Dimensions Обозначение Designation D W±002 Tmax Z r D min(2) Ts / IC528 MM GRIT 22K-0.76-0.00 (1) 21.70 0.76 1.50 4 0.00 22.00 T08 MM EGR 20-22 MM GRIT 22K-0.86-0.00 (1) 21.70 0.86 1.70 4 0.00 22.00 T08 MM EGR 20-22 MM GRIT 22K-0.96-0.00 (1) 21.70 0.96 1.90 4 0.00 22.00 T08 MM EGR 20-22 MM GRIT 22K-1.00-0.05 21.70 1.00 2.00 4 0.05 22.00 T08 MM EGR 20-22 MM GRIT 22P-1.00-0.05 21.70 1.00 2.00 4 0.05 22.00 T08 MM EGR 20-22 MM GRIT 22K-1.20-0.05 (1) 21.70 1.20 4.50 4 0.05 22.00 T08 MM EGR 20-22 MM GRIT 22K-1.40-0.05 (1) 21.70 1.40 4.50 4 0.05 22.00 T08 MM EGR 20-22 MM GRIT 22K-1.57-0.00 21.70 1.57 4.50 4 0.00 22.00 T08 MM EGR 20-22 MM GRIT 22K-1.70-0.10 (1) 21.70 1.70 4.50 4 0.10 22.00 T08 MM EGR 20-22 MM GRIT 22P-1.70-0.10 (1) 21.70 1.70 4.50 4 0.10 22.00 T08 MM EGR 20-22 MM GRIT 22K-1.95-0.20 (1) 21.70 1.95 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-2.00-0.20 21.70 2.00 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22P-2.00-0.20 21.70 2.00 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-2.25-0.20 (1) 21.70 2.25 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-2.39-0.20 21.70 2.39 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-2.50-0.20 21.70 2.50 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22P-2.50-0.20 21.70 2.50 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-2.75-0.20 (1) 21.70 2.75 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-3.00-0.20 21.70 3.00 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22P-3.00-0.20 21.70 3.00 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-3.17-0.20 21.70 3.17 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-3.25-0.20 (1) 21.70 3.25 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22P-3.81-0.20 21.70 3.81 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-4.00-0.20 21.70 4.00 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22P-3.98-0.20 21.70 3.98 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22P-4.00-0.20 21.70 4.00 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22P-4.00-2.00 21.70 4.00 4.50 4 2.00 22.00 T08 MM EGR 20-22 MM GRIT 22K-4.25-0.20 (1) 21.70 4.25 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-4.25-1.20 (1) 21.70 4.25 4.50 4 1.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-4.75-0.20 21.70 4.75 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-5.25-0.20 (1) 21.70 5.25 4.50 4 0.20 22.00 T08 MM EGR 20-22 MM GRIT 22K-6.00-3.00 21.70 6.00 4.50 4 3.00 22.00 T08 MM EGR 20-22 MM GRIT 28K-2.50-0.2 27.70 2.50 6.00 6 0.20 28.00 T10 T-40/3 L MM GRIT 28K-5.25-0.2 27.70 5.25 6.00 6 0.20 28.00 T10 T-40/3 L MM GRIT 28P-7.0-3.5 27.70 7.00 5.70 6 3.50 28.00 T10 T-40/3 L MM GRIT 28K-10.0-0.2 27.70 10.00 6.00 6 0.20 28.00 T10 T-40/3 L Recommended for O-rings and retaining rings MM EGR 20-22 clamping keys are supplied with each MM GRT... shank Tightening torque for MM GRIT 22: 1500 Nxcm, for MM GRIT 28: 2800 Nxcm K - for general steel & cast iron machining P - for soft and gummy materials Modification options on request Do not apply lubricant to the threaded connection For clamping instructions, see page 34 For user guide, see pages 320-328 For shanks, see pages 63-69 (1) For circle clips according to DIN471/472 and ANSI B27.7M (2) Minimum bore diameter Optional, should be ordered separately K-Type - For general steel and cast iron machining. P-Type - Positive geometry for soft and gummy materials. SLOTTING CUTTERS
