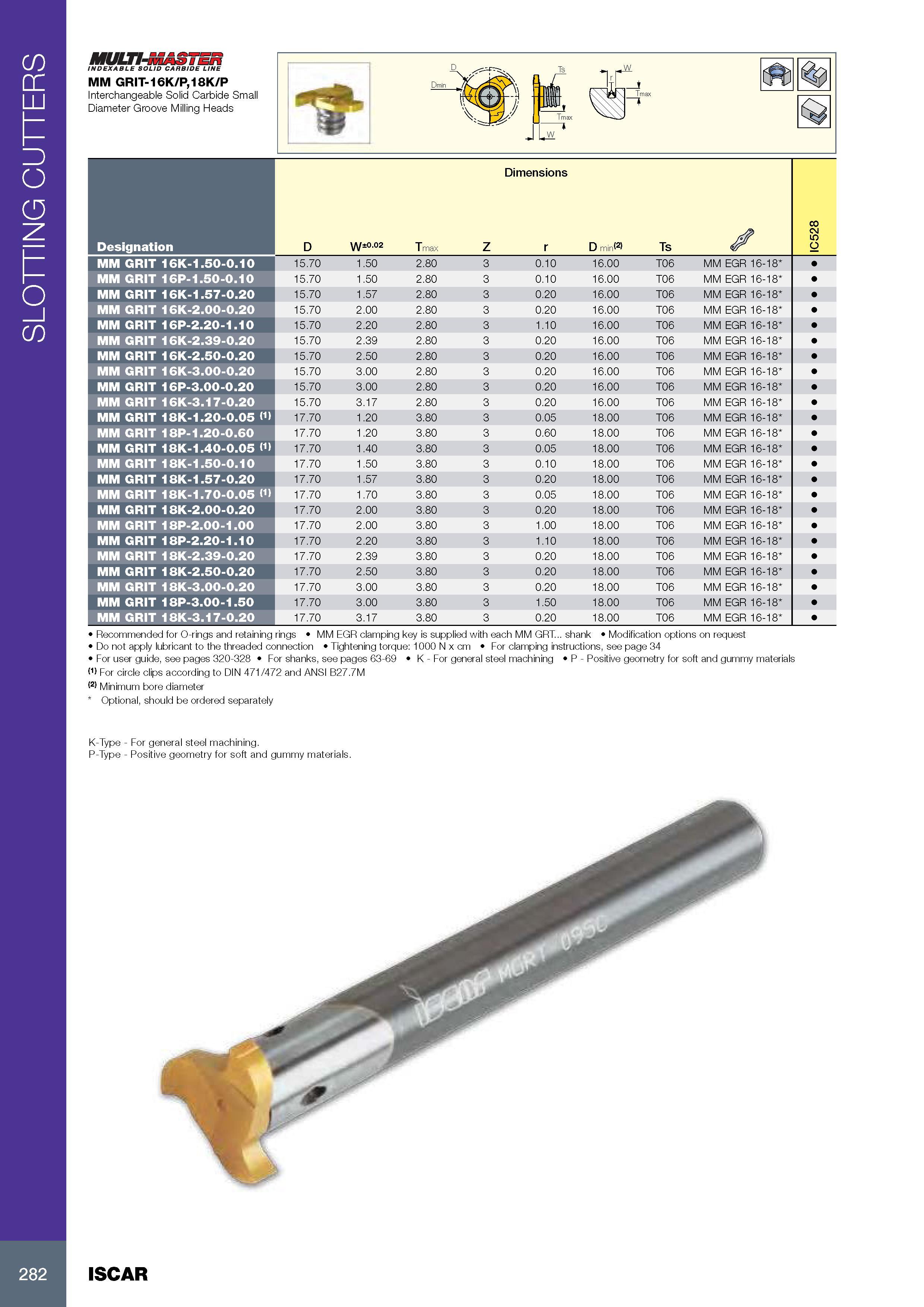

SLOTTING CUTTERS MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM GRIT-16K/P,18K/P I nterchangeable Solid Carbide Small Diameter Groove Milling Heads Размеры в мм Dimensions Обозначение Designation D W±0.02 Tmax Z r D min(2) Ts IC528 MM GRIT 16K-1.50-0.10 15.70 1.50 2.80 3 0.10 16.00 T06 MM EGR 16-18 MM GRIT 16P-1.50-0.10 15.70 1.50 2.80 3 0.10 16.00 T06 MM EGR 16-18 MM GRIT 16K-1.57-0.20 15.70 1.57 2.80 3 0.20 16.00 T06 MM EGR 16-18 MM GRIT 16K-2.00-0.20 15.70 2.00 2.80 3 0.20 16.00 T06 MM EGR 16-18 MM GRIT 16P-2.20-1.10 15.70 2.20 2.80 3 1.10 16.00 T06 MM EGR 16-18 MM GRIT 16K-2.39-0.20 15.70 2.39 2.80 3 0.20 16.00 T06 MM EGR 16-18 MM GRIT 16K-2.50-0.20 15.70 2.50 2.80 3 0.20 16.00 T06 MM EGR 16-18 MM GRIT 16K-3.00-0.20 15.70 3.00 2.80 3 0.20 16.00 T06 MM EGR 16-18 MM GRIT 16P-3.00-0.20 15.70 3.00 2.80 3 0.20 16.00 T06 MM EGR 16-18 MM GRIT 16K-3.17-0.20 15.70 3.17 2.80 3 0.20 16.00 T06 MM EGR 16-18 MM GRIT 18K-1.20-0.05 <1> 17.70 1.20 3.80 3 0.05 18.00 T06 MM EGR 16-18 MM GRIT 18P-1.20-0.60 17.70 1.20 3.80 3 0.60 18.00 T06 MM EGR 16-18 MM GRIT 18K-1.40-0.05 <1> 17.70 1.40 3.80 3 0.05 18.00 T06 MM EGR 16-18 MM GRIT 18K-1.50-0.10 17.70 1.50 3.80 3 0.10 18.00 T06 MM EGR 16-18 MM GRIT 18K-1.57-0.20 17.70 1.57 3.80 3 0.20 18.00 T06 MM EGR 16-18 MM GRIT 18K-1.70-0.05 <1> 17.70 1.70 3.80 3 0.05 18.00 T06 MM EGR 16-18 MM GRIT 18K-2.00-0.20 17.70 2.00 3.80 3 0.20 18.00 T06 MM EGR 16-18 MM GRIT 18P-2.00-1.00 17.70 2.00 3.80 3 1.00 18.00 T06 MM EGR 16-18 MM GRIT 18P-2.20-1.10 17.70 2.20 3.80 3 1.10 18.00 T06 MM EGR 16-18 MM GRIT 18K-2.39-0.20 17.70 2.39 3.80 3 0.20 18.00 T06 MM EGR 16-18 MM GRIT 18K-2.50-0.20 17.70 2.50 3.80 3 0.20 18.00 T06 MM EGR 16-18 MM GRIT 18K-3.00-0.20 17.70 3.00 3.80 3 0.20 18.00 T06 MM EGR 16-18 MM GRIT 18P-3.00-1.50 17.70 3.00 3.80 3 1.50 18.00 T06 MM EGR 16-18 MM GRIT 18K-3.17-0.20 17.70 3.17 3.80 3 0.20 18.00 T06 MM EGR 16-18 Recommended for O-rings and retaining rings MM EGR clamping key is supplied with each MM GRT... shank Modification options on request Do not apply lubricant to the threaded connection Tightening torque: 1000 N x cm For clamping instructions, see page 34 For user guide, see pages 320-328 For shanks, see pages 63-69 K - For general steel machining P - Positive geometry for soft and gummy materials (1) For circle clips according to DIN 471/472 and ANSI B27.7M Minimum bore diameter Optional, should be ordered separately K-Type - For general steel machining. P-Type - Positive geometry for soft and gummy materials. 282 ISCAR
