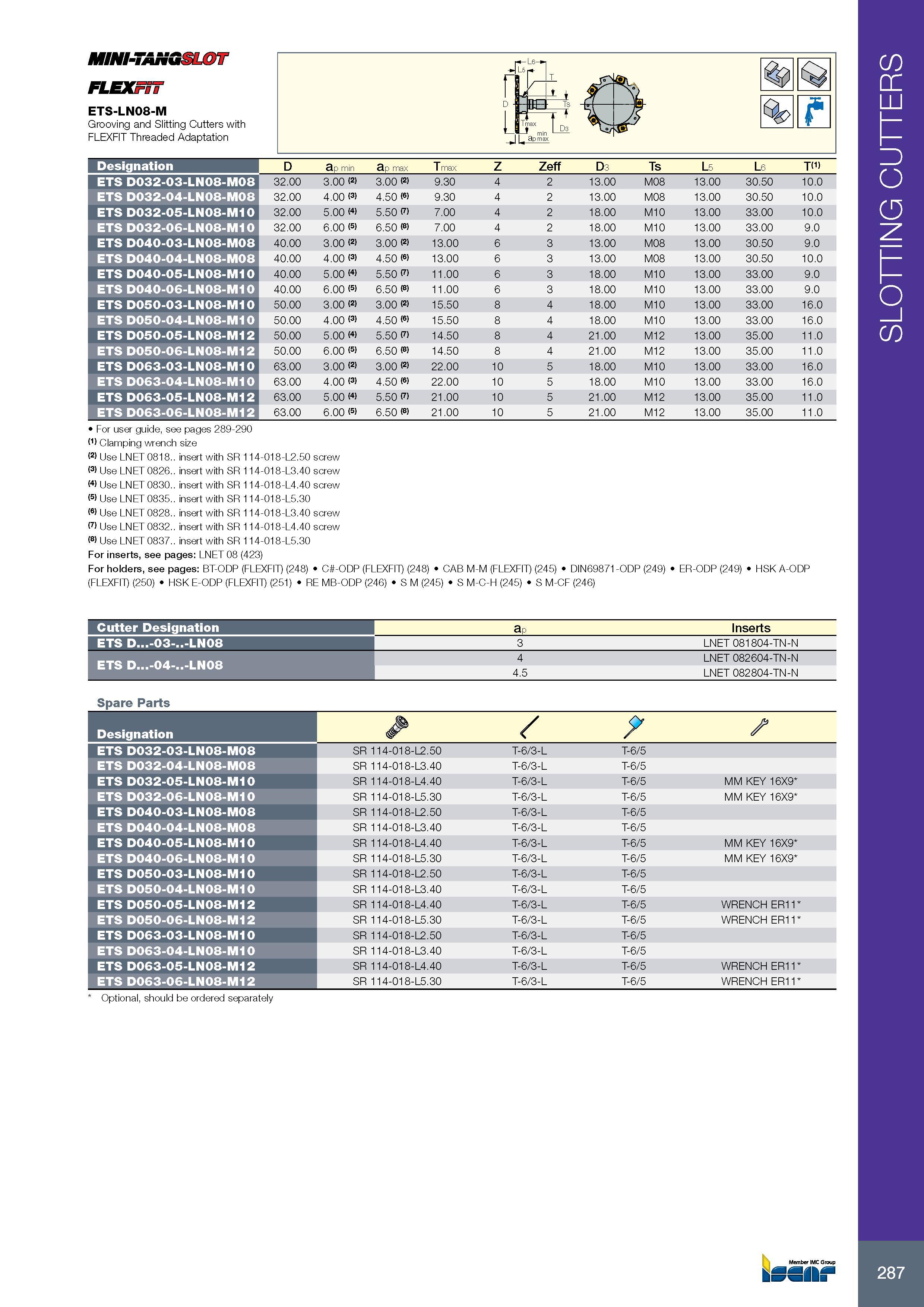

287 MINI-7ANGSLOT FLEXFiT ETS-LN08-M Grooving and Slitting Cutters with FLEXFIT Threaded Adaptation D ap min ap max Tmax Z Zeff D3 Ts L 5 L6 T<1> 32.00 3.00 (2) 3.00 I2) 9.30 4 2 13.00 M08 13.00 30.50 10.0 32.00 4.00 I3) 4.50 I6) 9.30 4 2 13.00 M08 13.00 30.50 10.0 32.00 5.00 (4> 5.50 I7) 7.00 4 2 18.00 M10 13.00 33.00 10.0 32.00 6.00 I5) 6.50 I8) 7.00 4 2 18.00 M10 13.00 33.00 9.0 40.00 3.00 I2) 3.00 I2) 13.00 6 3 13.00 M08 13.00 30.50 9.0 40.00 4.00 I3) 4.50 I6) 13.00 6 3 13.00 M08 13.00 30.50 10.0 40.00 5.00 I4) 5.50 I7) 11.00 6 3 18.00 M10 13.00 33.00 9.0 40.00 6.00 I5) 6.50 I8) 11.00 6 3 18.00 M10 13.00 33.00 9.0 50.00 3.00 I2) 3.00 I2) 15.50 8 4 18.00 M10 13.00 33.00 16.0 50.00 4.00 I3) 4.50 I6) 15.50 8 4 18.00 M10 13.00 33.00 16.0 50.00 5.00 I4) 5.50 I7) 14.50 8 4 21.00 M12 13.00 35.00 11.0 50.00 6.00 I5) 6.50 I8) 14.50 8 4 21.00 M12 13.00 35.00 11.0 63.00 3.00 I2) 3.00 I2) 22.00 10 5 18.00 M10 13.00 33.00 16.0 63.00 4.00 I3) 4.50 I6) 22.00 10 5 18.00 M10 13.00 33.00 16.0 63.00 5.00 I4) 5.50 I7) 21.00 10 5 21.00 M12 13.00 35.00 11.0 63.00 6.00 I5) 6.50 I8) 21.00 10 5 21.00 M12 13.00 35.00 11.0 For user guide, see pages 289-290 11) Clamping wrench size 12) Use LNET 0818.. insert with SR 114-018-L2.50 screw 13) Use LNET 0826.. insert with SR 114-018-L3.40 screw 14) Use LNET 0830.. insert with SR 114-018-L4.40 screw 15) Use LNET 0835.. insert with SR 114-018-L5.30 16) Use LNET 0828.. insert with SR 114-018-L3.40 screw 17) Use LNET 0832.. insert with SR 114-018-L4.40 screw 18) Use LNET 0837.. insert with SR 114-018-L5.30 For inserts, see pages: LNET 08 (423) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) Обозначение Designation ETS D032-03-LN08-M08 ETS D032-04-LN08-M08 ETS D032-05-LN08-M10 ETS D032-06-LN08-M10 ETS D040-03-LN08-M08 ETS D040-04-LN08-M08 ETS D040-05-LN08-M10 ETS D040-06-LN08-M10 ETS D050-03-LN08-M10 ETS D050-04-LN08-M10 ETS D050-05-LN08-M12 ETS D050-06-LN08-M12 ETS D063-03-LN08-M10 ETS D063-04-LN08-M10 ETS D063-05-LN08-M12 ETS D063-06-LN08-M12 Cutter Обозначение Designation ap Inserts ETS D...-03 -..-LN08 3 LNET 081804-TN-N -..-LN08 4 LNET 082604-TN-N ETS D...-04 4.5 LNET 082804-TN-N Spare Parts Обозначение Designation / >> ETS D032-03-LN08-M08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D032-04-LN08-M08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D032-05-LN08-M10 SR 114-018-L4.40 T-6/3-L T-6/5 MM KEY 16X9 ETS D032-06-LN08-M10 SR 114-018-L5.30 T-6/3-L T-6/5 MM KEY 16X9 ETS D040-03-LN08-M08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D040-04-LN08-M08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D040-05-LN08-M10 SR 114-018-L4.40 T-6/3-L T-6/5 MM KEY 16X9 ETS D040-06-LN08-M10 SR 114-018-L5.30 T-6/3-L T-6/5 MM KEY 16X9 ETS D050-03-LN08-M10 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D050-04-LN08-M10 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D050-05-LN08-M12 SR 114-018-L4.40 T-6/3-L T-6/5 WRENCH ER11 ETS D050-06-LN08-M12 SR 114-018-L5.30 T-6/3-L T-6/5 WRENCH ER11 ETS D063-03-LN08-M10 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D063-04-LN08-M10 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D063-05-LN08-M12 SR 114-018-L4.40 T-6/3-L T-6/5 WRENCH ER11 ETS D063-06-LN08-M12 SR 114-018-L5.30 T-6/3-L T-6/5 WRENCH ER11 Optional, should be ordered separately SLOTTING CUTTERS
