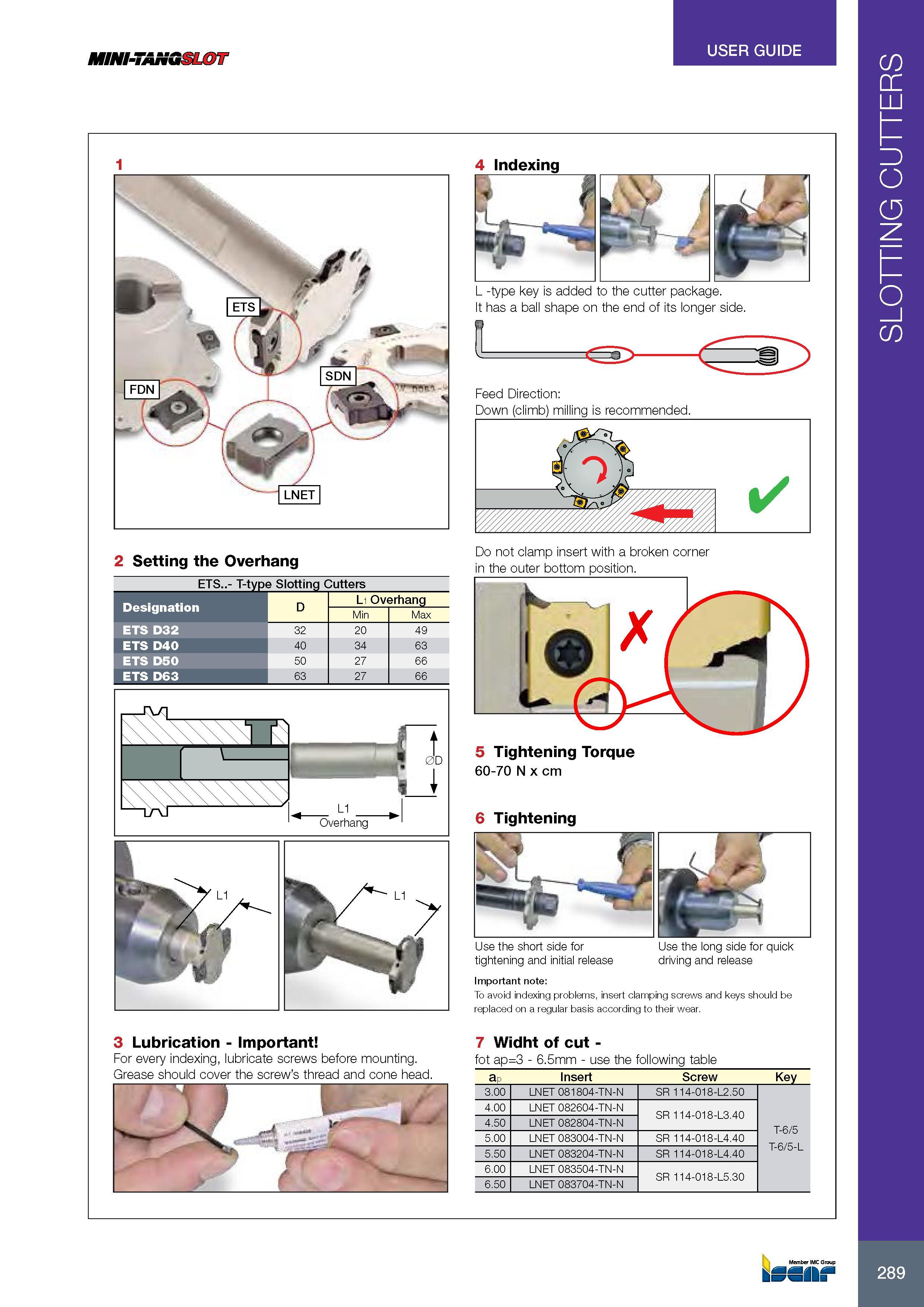

MINI-TANG USER GUIDE 2 Setting the Overhang ETS..- T-type Slotting Cutters Обозначение Designation L1 Overhang Min Max ETS D32 20 49 ETS D40 34 63 ETS D50 27 66 ETS D63 63 27 66 3 Lubrication - Important For every indexing, lubricate screws before mounting. Grease should cover the screw's thread and cone head. Do not clamp insert with a broken corner in the outer bottom position. 5 Tightening Torque 60-70 N x cm 6 Tightening Use the short side for tightening and initial release Use the long side for quick driving and release Important note: To avoid indexing problems, insert clamping screws and keys should be replaced on a regular basis according to their wear. 7 Widht of cut fot ap=3 - 6.5mm - use the following table ap Insert Screw Key 3.00 LNET 081804-TN-N SR 114-018-L2.50 4.00 LNET 082604-TN-N SR 114-018-L3.40 4.50 LNET 082804-TN-N T-6/5 T-6/5-L 5.00 LNET 083004-TN-N SR 114-018-L4.40 5.50 LNET 083204-TN-N SR 114-018-L4.40 6.00 LNET 083504-TN-N SR 114-018-L5.30 6.50 LNET 083704-TN-N 289 SLOTTING CUTTERS
