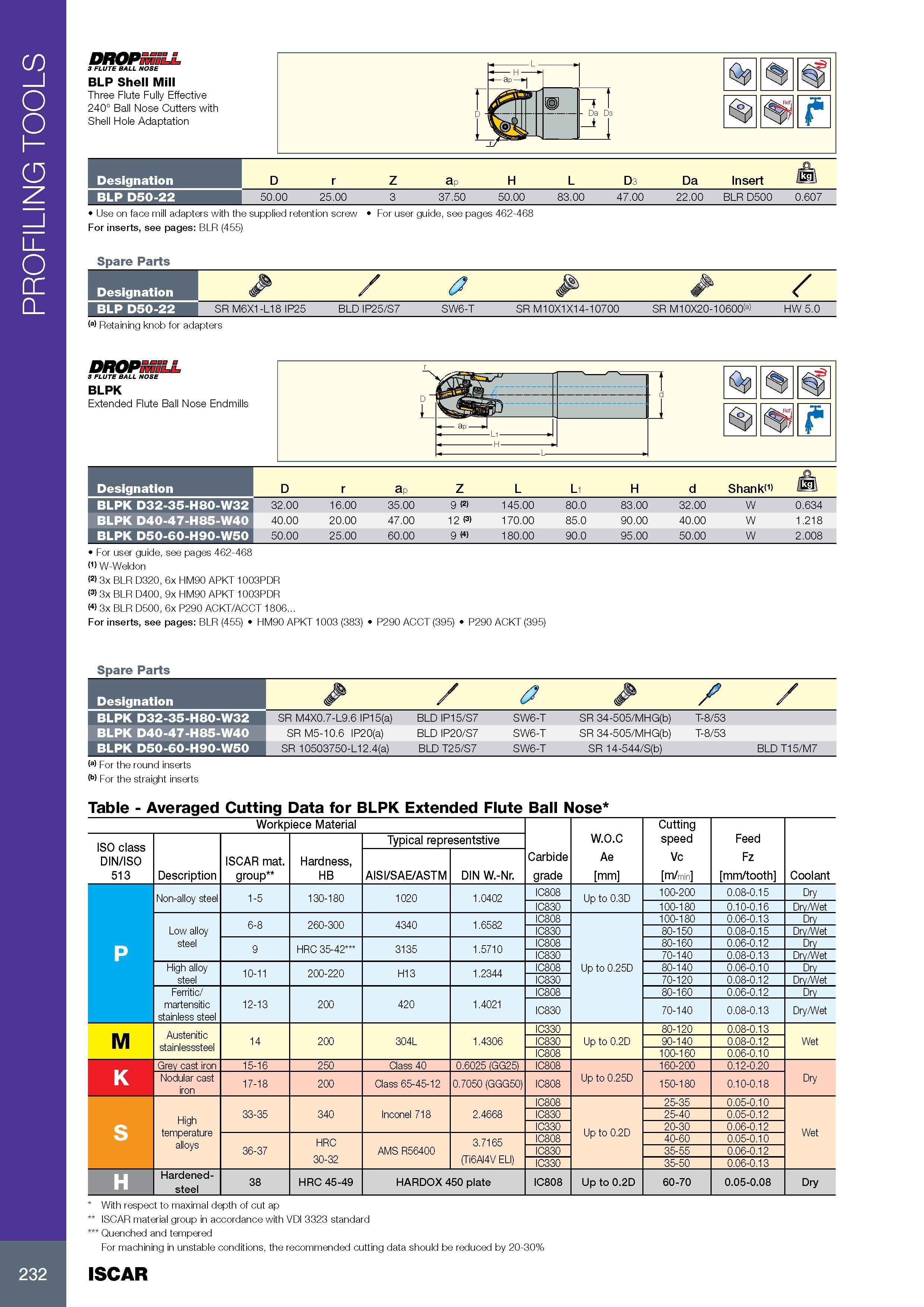

Фрезы Iscar с режущими сменными твердосплавными пластинами для контурного фрезерования на станках с ЧПУ сложнопрофильных поверхностей PROFILING TOOLS 232 DROPMiLL 3 FLUTE BALL NOSE BLP Shell Mill Three Flute Fully Effective 240° Ball Nose Cutters with Shell Hole Adaptation Обозначение Designation D r Z ap H L D3 Da Insert o BLP D50-22 50.00 25.00 3 37.50 50.00 83.00 47.00 22.00 BLR D500 0.607 Use on face mill adapters with the supplied retention screw For user guide, see pages 462-468 For inserts, see pages: BLR (455) Spare Parts Обозначение Designation & / 0 / BLP D50-22 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T SR M10X1X14-10700 SR M10X20-10600(a) HW 5.0 (a) Retaining knob for adapters DROPSSSJ. 3 FLUTE BALL NOSE BLPK Extended Flute Ball Nose Endmills Обозначение Designation D r ap Z L L1 H d Shanks BLPK D32-35-H80-W32 32.00 16.00 35.00 9 (2) 145.00 80.0 83.00 32.00 W 0.634 BLPK D40-47-H85-W40 40.00 20.00 47.00 12 (3) 170.00 85.0 90.00 40.00 W 1.218 BLPK D50-60-H90-W50 50.00 25.00 60.00 9 (4) 180.00 90.0 95.00 50.00 W 2.008 For user guide, see pages 462-468 (1) W-Weldon <2> 3x BLR D320, 6x HM90 APKT 1003PDR <3> 3x BLR D400, 9x HM90 APKT 1003PDR <4> 3x BLR D500, 6x P290 ACKT/ACCT 1806... For inserts, see pages: BLR (455) HM90 APKT 1003 (383) P290 ACCT (395) P290 ACKT (395) Spare Parts Обозначение Designation / a BLPK D32-35-H80-W32 SR M4X0.7-L9.6 IP15(a) BLD IP15/S7 SW6-T SR 34-505/MHG(b) T-8/53 BLPK D40-47-H85-W40 SR M5-10.6 IP20(a) BLD IP20/S7 SW6-T SR 34-505/MHG(b) T-8/53 BLPK D50-60-H90-W50 SR 10503750-L12.4(a) BLD T25/S7 SW6-T SR 14-544/S(b) BLD T15/M7 (a) For the round inserts (b) For the straight inserts Table - Averaged Cutting Data for BLPK Extended Flute Ball Nose Workpiece Material Cutting ISO class DIN/ISO Typical representstive W.O.C speed Feed ISCAR mat. Hardness, Carbide Ae Vc Fz 513 Description group HB AISI/SAE/ASTM DIN W.-Nr. grade mm m/min mm/tooth Coolant Non-alloy steel 1-5 130-180 1020 1.0402 IC808 Up to 0.3D 100-200 0.08-0.15 Dry IC830 100-180 0.10-0.16 Dry/Wet 6-8 260-300 4340 1.6582 IC808 100-180 0.06-0.13 Dry Low alloy IC830 80-150 0.08-0.15 Dry/Wet steel 9 HRC 35-42 3135 1.5710 IC808 80-160 0.06-0.12 Dry P IC830 70-140 0.08-0.13 Dry/Wet High alloy 10-11 200-220 H13 1.2344 IC808 Up to 0.25D 80-140 0.06-0.10 Dry steel IC830 70-120 0.08-0.12 Dry/Wet Ferritic/ IC808 80-160 0.06-0.12 Dry martensitic stainless steel 12-13 200 420 1.4021 IC830 70-140 0.08-0.13 Dry/Wet M Austenitic stainlesssteel IC330 80-120 0.08-0.13 14 200 304L 1.4306 IC830 Up to 0.2D 90-140 0.08-0.12 Wet IC808 100-160 0.06-0.10 Grey cast iron 15-16 250 Class 40 0.6025 (GG25) IC808 160-200 0.12-0.20 K Nodular cast iron 17-18 200 Class 65-45-12 0.7050 (GGG50) IC808 Up to 0.25D 150-180 0.10-0.18 Dry IC808 25-35 0.05-0.10 High temperature alloys 33-35 340 Inconel 718 2.4668 IC830 25-40 0.05-0.12 S IC330 Up to 0.2D 20-30 0.06-0.12 Wet HRC 3.7165 IC808 40-60 0.05-0.10 36-37 AMS R56400 IC830 35-55 0.06-0.12 30-32 (Ti6Al4V ELI) IC330 35-50 0.06-0.13 H Hardened- steel 38 HRC 45-49 HARDOX 450 plate IC808 Up to 0.2D 60-70 0.05-0.08 Dry With respect to maximal depth of cut ap ISCAR material group in accordance with VDI 3323 standard Quenched and tempered For machining in unstable conditions, the recommended cutting data should be reduced by 20-30% ISCAR
